| Prod Model: |
LG-MS05 |
| Type: |
Convex |
| Material: |
Silicone |
| Application: |
Camera |
| Brand: |
OEM/Ode(L&G) |
Product Description

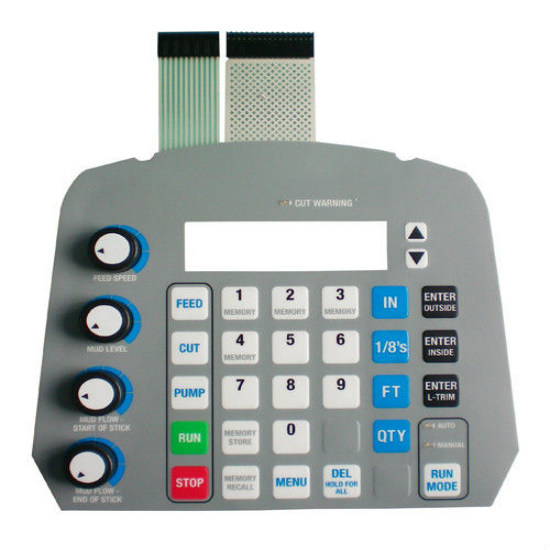

OEM SGS Electric Circuit Keyboard Control Membrane Switch
Description: Membrane switch
1) Membrane Switch with windows
2) Silicone keypad
3) Silk Screen Printing
4)perfect exterior
5) Over 1 million life cycles
Place of Origin: Dong Guan China
Brand Name: L&G
Model Number: LG-MS01
Certification: ISO9001: 2008, SGS, Rohs
3. Materials:
1 Material: PET /PC
2 Adhesive: 3M467 & 3M468 or as per request
3 High life time: >1million times
4 Pass: ISO9001: 2008 RoHS. SGS
5 High quality
4. Commercial terms:
MOQ: 150pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval.
Lead Time for production: 15-22 days after sample approval
5. Applications:
Our membrane switches are widely used in:
Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls
6. Specifications:
Wire lead resistance: <1Ω /CMLife time: >1 Million times
Rated current: 25-100mA, 0~30V DCOperation Temperature: -40~70
Rated Voltage: <50V, DCOperation Humidity: At40, <98%RH
Insulation resistance: <100MΩ , 250V DCDome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mmBase Material voltage withstand: 1500 V DC
Tactile type: 0.3-1.5mmTail flexiblility: Any angle within 180 degree
7. Company Advantage:
1) Top managers are experienced in the same field for many years.
2) Professional staff and workers.
3) Strong R&D cabability
4) Quick Delivery
5) Competitive price
6) Two factories are available for large orders
7) Expert sales team and good customer service.
| Technical Specification Of Membrane Swithc |
|
| wire lead resistance: | <1Ω/CM |
| Life time: | >1 Million times |
| rated current: | 25-100mA,0~30V DC |
| Operation Temperature: | -104°F~158°F |
| Rated Voltage: | <50V, DC |
| Operation Humidity: | at104,<98%RH |
| Insulation resistance: | <100MΩ,250V DC |
| Dome springback time: | <5 msec |
| Switch travel: | Flat Type 0.05-0.3mm |
| Base Material voltage withstand: | 1500 V DC |
| tactile type:0.3-1.5mm |
| Tail flexiblility: | any angle within 180 degree |
SAMPLES
1. Free charge sample: Could provide(less than 5 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
