Printing Circuit Overlay Electronic Control Keypad Film Membrane Switch

Name: Printing Circuit Overlay Electronic Control Keypad Film Membrane Switch
Brand: all-electronics-online.com
SKU: 616555244
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MS-081
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Touch Feeling:	Excellent Touch Feeling
Exterior:	Good Looking
Material:	PC
Type:	Flat
Application:	Machines

Product Description

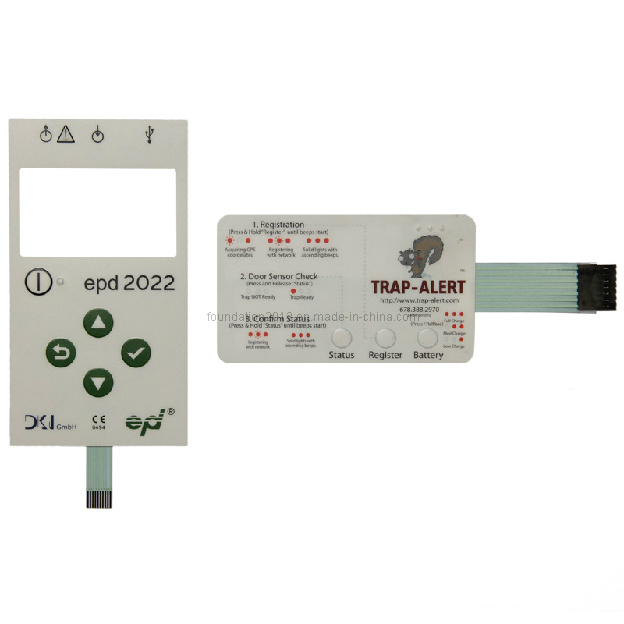

Printing Circuit Overlay Electronic Control Keypad Film Membrane Switch

1. Membrane switch keypad with metal dome and LED
2. Material: PET, 3M 467, metal dome
3. Customized sizes, colors, designs and logos are valuable
4. Surface: Matte or glossy are welcome
5. Three circuits, female connector with pins and houses
6.100% test
7. We also can offer some kit supply, such as PCB membrane switch with cable, metal membrane keypad for atm, FPC membrane switch.
8. Trust us, you don't need to find another supplier for these component, we can do that for you

Production capacity: 1000000times
Unit price: Negotiable/
Shipment terms: EXW
Payment terms: T/T
Origin: Dongguang
Packing: In carton
Materials: Textured PC, gloss PC with matte finish, autotype pet and PVC
Thickness: 0.5, 0.7, 0.8 and 1.0mm
LED windows: Clear or translucent with all colors
Embossed keys: Polydome and rim
Metal dome: Brand of nicomatic and innovan, nickel and gold plated
Tail: With mylar and UV
Connector: Nicomatic, fci, molex and zif
Adhesive: 3m 467, 468, 3m9495, 3m7945 and 3m7959

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
