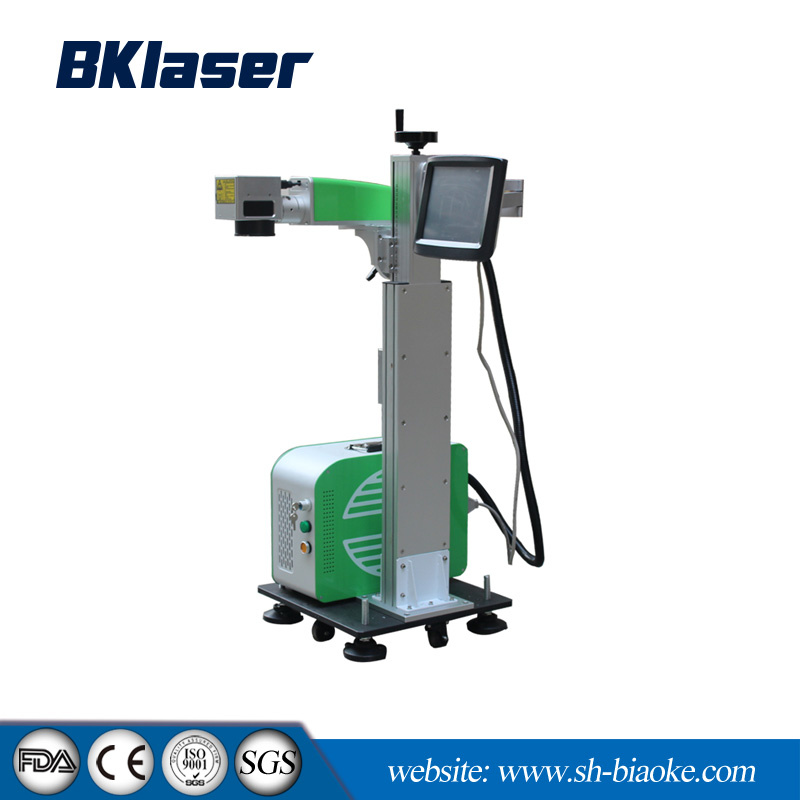

Product Line Laser Marking Machine for Food Package
| Price: |
US $ 3900-8500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BK-G10FT/15FT/20FT/30FT/50FT |
| Laser Power: |
10W/15W/20W/30W/50W |
| Frequency Range: |
20-80kHz |
| Marking Speed: |
7000mm/Second |
| Repeat Accuracy: |
0.002 |
| Minimum Character: |
0.15 mm |
| Minimum Width: |
0.01mm |
| Engrave Range: |
110*110mm(Standard) 175*175mm,200*200mm,300*300m |
| Power Consumption: |
500W-1000W |
| Machine Total Weight: |
150kg |
| File Formats: |
Winxp/Win7 |
Product Description
| Model | BK-G10/BK-G15/BK-G20/BK-G30/BK-G50 |
| Laser | 10W /15W/20W/30W/50W |
| Laser Wavelength | 1064nm |
| Repeat Frequency | 20-80KHZ |
| Speed of Light Quality | <2/<3/<5 |
| Engraving Line Speed | ≤7000mm/s |
| Repeat Precision | ±0.002 |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.15mm |
| Power Supply | 90-260V/50Hz-60Hz |
| Marking The Maximum Height | 300mm |
| Power Consumption | 500W/1000W |
| Engraving Depth | ≤0.3mm/≤0.5mm/≤1.0mm |
| Operating System | Windows Systems |
| Standard Engraving Range | 110*110mm/140*140mm/300*300mm |
| Card and Software | German Samlight/Ezcad |

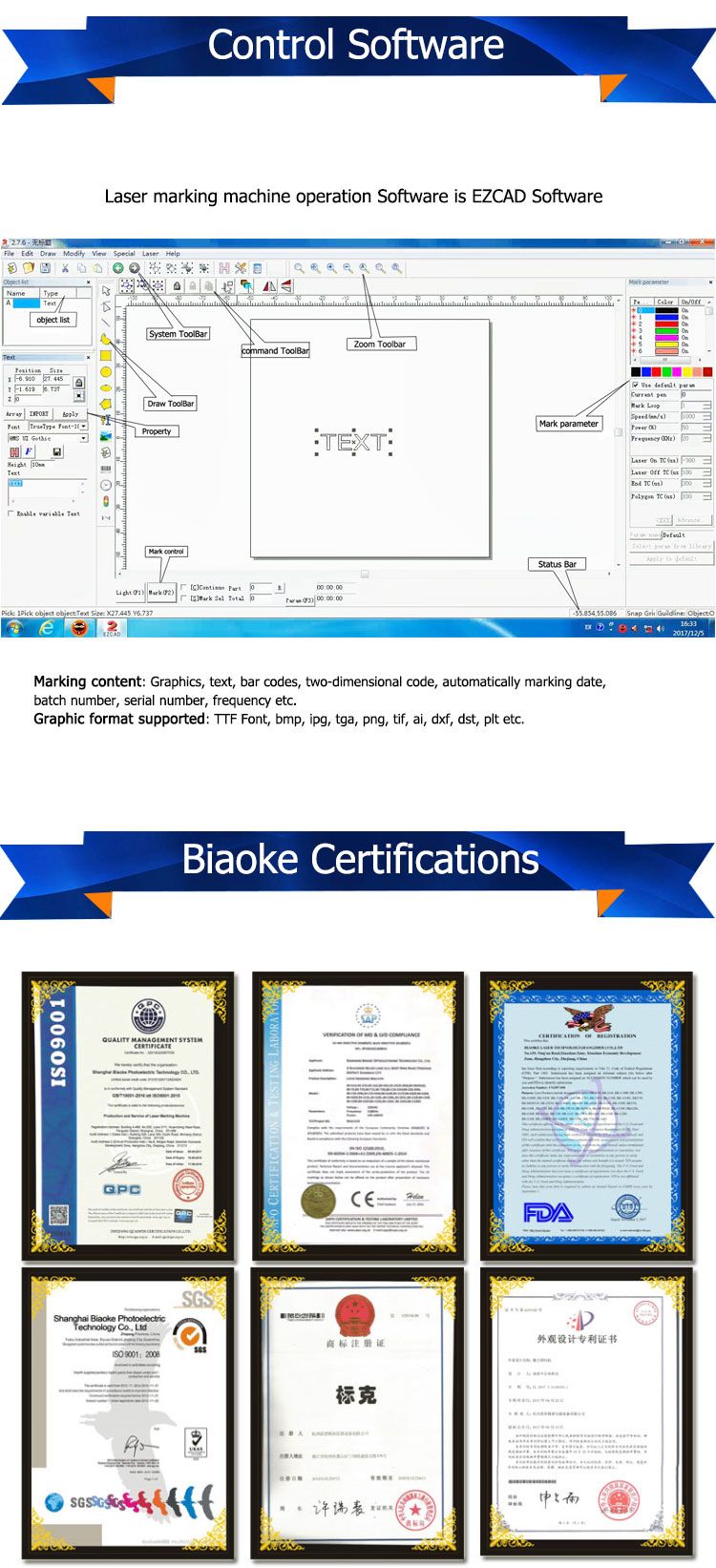

Performance Characteristics:1. By increasing laser oscillation in the optical fiber Pori to achieve low loss, good stability and it is not influenced by the external dust gas and mechanical loosening of the laser beam, stable output.2. Maintenance free.3. Processing speed is 2-3 times the traditional laser marking machine.4. Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, small power consumption (less than 800W), the use of low cost.5. Portable box type design, small size, especially adapted to those need to often change the site work, and those space restrictions on the site. Widely used in jewelry store processing and processing of small parts before the shop model.6.It has strong environmental adaptability and it can work continuously under the environment of shock, shock, dust and humidity. It is easy to realize the coupling with the optical fiber, and can realize long distance work.7.It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.8. Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and so on, and also can use SHX and TTF fonts directly.
Our Fiber Laser Marking Machine is widely applied in many areas.| 1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
| 2. Automotive parts | 7.Aviation&Aerospace | 12. Lighting lamps |
| 3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
| 4. Furniture | 9. Kitchenwareequipment | 14. Fitness equipment |
| 5. Medical equipment | 10. Agriculturalmachinery | 15. watches & glassware |
FAQQ: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Main business: Laser marking machine, laser cutting machine, laser welding machine, Laser cleaning machine and a series of testing machine.
Our products exported to Japan, South Korea, Spain, Italy, Brazil, Chile, Jordan, India, Ukraine and other countries.
We have CE ISO FDA SGS Cerficate about our laser products.
We will serve better service for our company.
Welcome to join us.
