| Prod Model: |
A073 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Type: |
Electronic PCB Assembly |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green |
| Size: |
Custom |
| Surface Treatment: |
HASL Lead Free |
| Stencil: |
We Do |
| Service: |
One Stop |
| Componnets: |
We Purchase or Buy by Yourselt |
| Samll Order: |
Accepted |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Multilayer |
| Base Material: |
FR-4 |
| Certification: |
UL |
| Customized: |
Customized |
| Condition: |
New |
Product Description

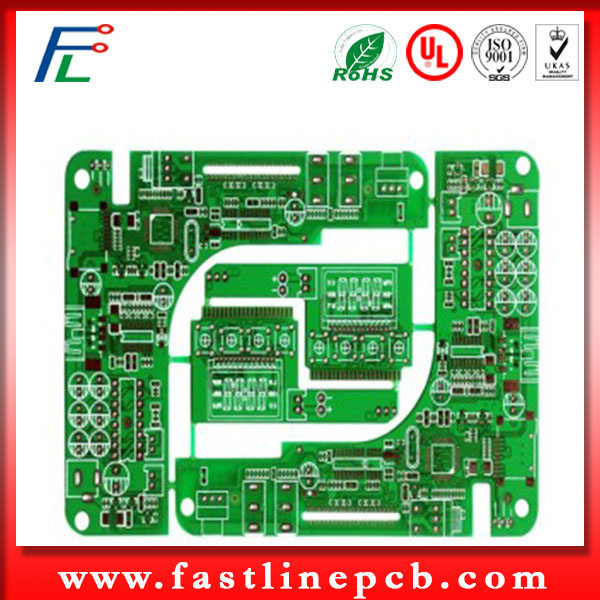

Professional Custom Rohs Fr4 94 v0 PCB Circuit Board Manufacture in China
Fastline Circust provides PCB and PCBA service, and can meet all your PCB and PCBA assembly request, Pls provide your PCB or PCBA file to us for details. Thanks
PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality, competitive Price & Best Service
4.100% E-test
Testing Procedures For PCB Board:
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
- Visual Inspection
- Flying probe
- Impedance control
- Solder ability detection
- Digital metallogenic microscope
- AOI (Automated Optical Inspection)
Quotation Requirement:
-Following specifications are needed for quotation:
1. Quantity
2. Base material
3. Board thickness
4. Copper thickness
5. Surface treatment
6. Color of solder mask and silkscreen
Delivery Time for PCB board:
Lead time:
Quickturn for sample: 2 layers 24 Hours, 4 layers 2 days or 3 days.
General sample: 3 - 5days /
Mass production: Within 7 days
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. DHL, UPS, FedEx, TNT forwarder of China.
3. We could ship the parcel by Russia Special Air Line for
Russian customer
(No TAX in your there, 3 - 10 days to Moscow, 15-20 days to other city)
4. By sea or air for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. Payment By Paypal, T/T, West Union, etc
| PCB Prototype Lead Time: |
| item | General time | Quick Turn |
| 1-2 | 4 days | 1 days |
| 4-6 Layers | 6 days | 2 days |
| 8-10 Layers | 8 days | 3 days |
| 12-16 Layers | 12 days | 4days |
| 18-20 Layers | 14 days | 5 days |
| 22-30 Layers | 16 days | 6 days |
| 32-48 Layers | 18 days | 8 days |
| Note: Base on all data received by us and must be complete and problem free, Lead time is ready to ship time. |
PCB Manufacture Capability and Technical Data:
| Item | Manufacture Capability |
| Layers | 1-26 Layers |
| Material Types | Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, Arlon Teflon, Aluminum Based |
| Max. Panel Dimension | 39000mil * 47000mil / 1000mm * 1200mm |
| Outline Tolerance | ± 4mil ± 0.10mm |
| Board Thickness | 8mil-236mil |
| Board Thickness Tolerance | mil-236mil / 0.2mm-6.0mm |
| Board Thickness Tolerance | ± 10% |
| Dielectric Thickness | 3mil-8mil / 0.075mm-0.20mm |
| Min. Track Width | 3mil / 0.075mm |
| Min. Track Space | 3mil / 0.075mm |
| External Cu Thickness | HOZ-6OZ / 17um~210um |
| Internal Cu Thickness | HOZ-6OZ / 17um~210um |
| Drilling Bit Size ( CNC ) | 6mil-256mil / 0.15mm-6.50mm |
| Finished Hole Dimension | 4mil-236mil / 0.1mm_6.0mm |
| Hole Tolerance | ± 2mil / ± 0.05mm |
| Hole Position Tolerance | ± 2mil / ± 0.05mm |
| Laser Drilling Hole Size | 4mil / 0.1mm |
| Aspect Ration | 12: 1 |
| Solder Mask | Green, Blue, White, Black, Red, Yellow, Purple, etc. |
| Min Solder mask Bridge | 2mil / 0.050mm |
| Plugged Hole Diameter | 8mil-20mil/ 0.20mm-0.50mm |
| Impedance Control V-scoring | ± 10% |
| Surface Finishing | HASL, HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold( up to 100u" ) |
If any further questions, please send enquiry to us !
Contact Person : Alice
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
