Professional Customized Sic Heater
| Price: |
US $ 0.8/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MSAT |
| Color: |
Grey |
| Featurte: |
High Temperature Resistance |
| Usage: |
Furnace, Air, Vacuum |
| Product Name: |
Sic Heater |
| Working Temperature: |
1450c |
| Size: |
Customised |
| Delivery Time: |
7-10days |
| Package: |
Wood Box |
| Length: |
200-4500mm |
Product Description

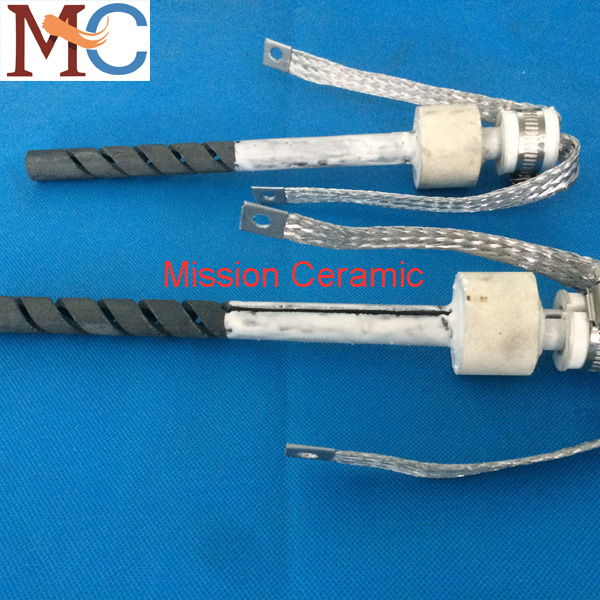

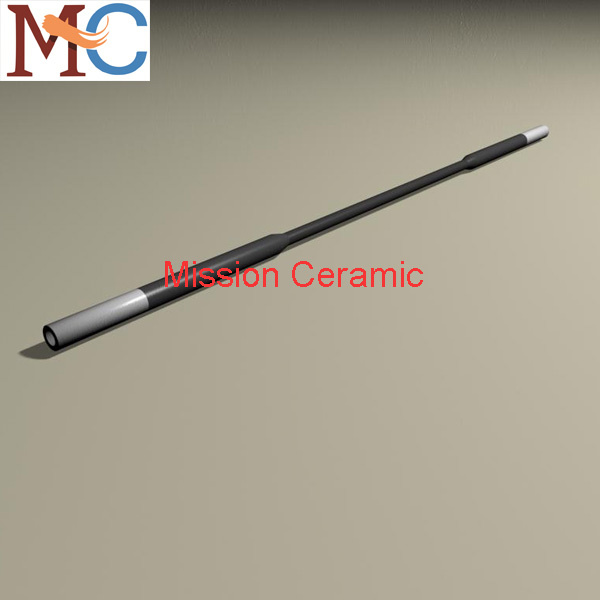

SiC Heater Specifications:
1. High working temperature: 1450C.
2. Long time last.
3. Various type available: Rod, U, W.
SiC Heater is our main product.
Mission can supply high quality SiC Heater.
Mission SiC Heater Advantages:
1. High working temperature: 1450C (Surface Temperature)
2. Various shapes: Rod, U, W shapes are available.
3. Large size range: Diameter 12-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Mission SiC Heater Standard Sizes :| Diameter | Heating zone
Length | Cold zone
Length | Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Other sized SiC Heater can be made according to your need!
Mission SiC Heater Package:
Wood box padded with foam board
Carton box padded with foam board.
Shipping: By sea, by air, by express.
How to Order Mission SiC Heater:
1.Choose the shape you need, like Rod, U, W etc.
2.Out Diameter (OD)
3.Heating Zone Length (HZ)
4.Overall Length (OL)
5.Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
Mission SiC Heater is widely used in high temperature furnaces, It can be used in air, vacuum and other protection gas environments.
I believe you will like our SiC Heating Elements.
Tips:
Customized production is available, for more informations, please do not hesitate to tell me.
Zhengzhou Mission Ceramic Products Co., Ltd
12th Floor, Shenglong Buliding B, High-tech District, Zhengzhou, Henan, China
Tel: 86-371-56689683
Mob:86-152-8681-8691
Fax: 86-371-67103091
About Mission Ceramic Company:
Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013.
Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.
Our main products as bellow:

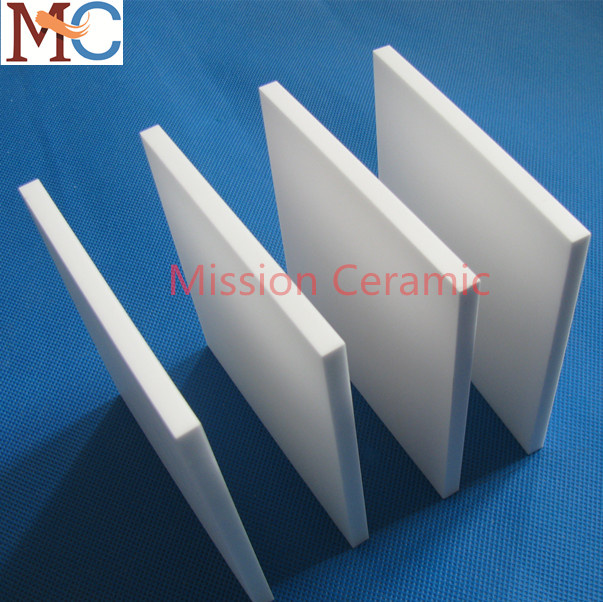

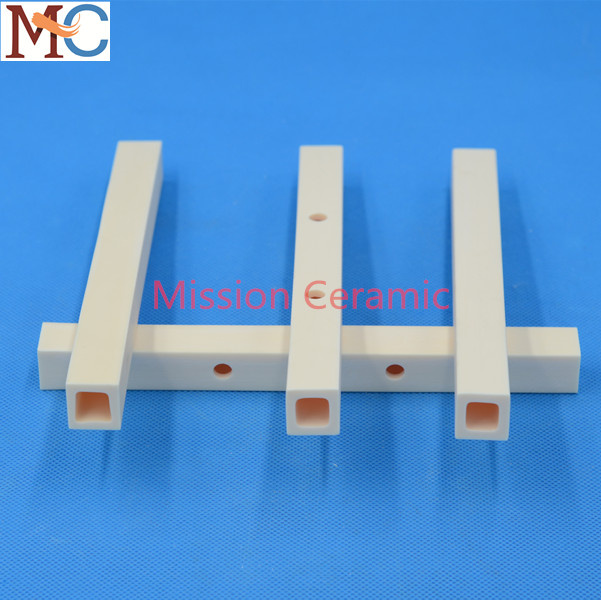

1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your Design.
