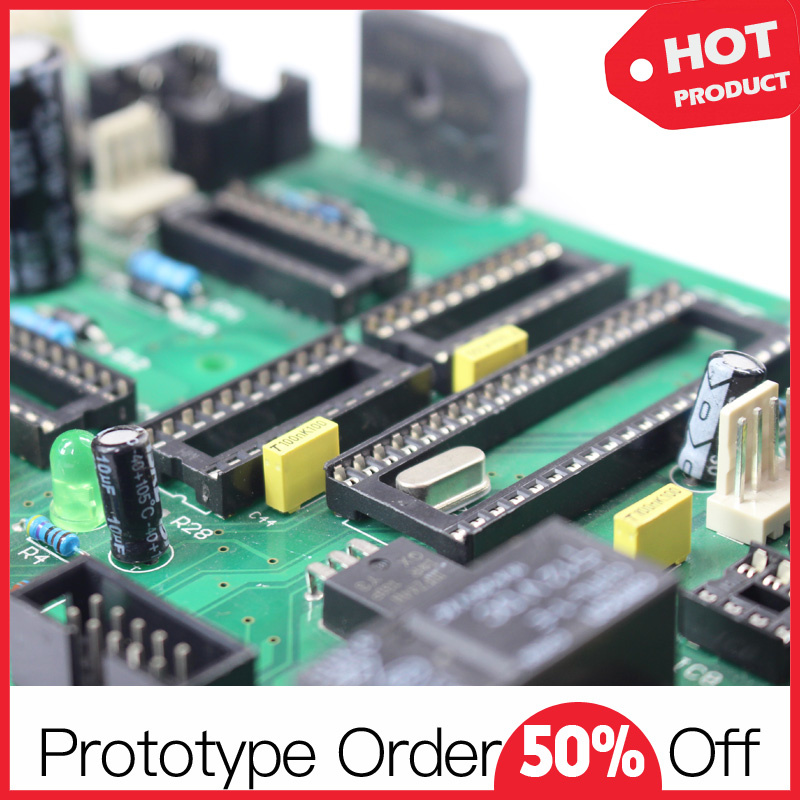

Professional Electronics Board Design with Assembly Service
| Price: |
US $ 0.18-0.34/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy Resin + Polyimide Resin |
| Flame Retardant Properties: |
HB |
Product Description

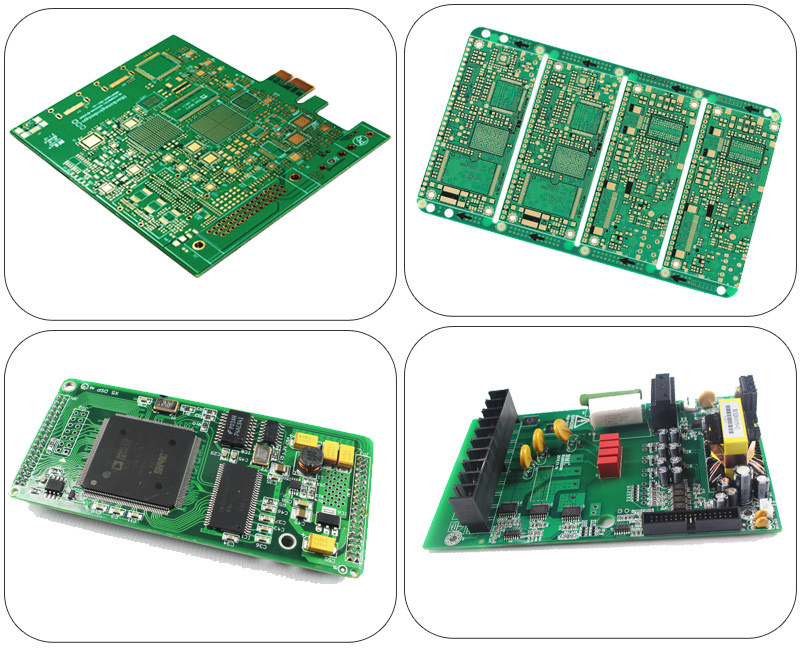

Professional Electronics Board Design with Assembly Service
Production Description:
PCB assembly Equipment:1. High speed and precision chip placer or multi-function SMD mounter2. Wave soldering machine3. Vacuum machine4. High temperature box5. Auto-solder paste printer6. Hot- and mixed-air reflow 1.Components list(a) Specification, brand, footprint(b)To short the lead time, please kindly advise us if there is any acceptable components substitution.(c) Schematic if necessary2. PCB board information(a) Gerber files(b) PCB board processing technic3. Testing Guide & Test Fixtures if necessary4. Programming files & Programming tool if necessary5. Package requirement
Our Advantages:| Turn Times | Selected Volume | Selected Solder Types |
| Same day through four weeks turns | No minimum order quantity | Leaded |
| Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| | Low cost first article builds | No-clean process available |
| Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
| Turnkey | Laser cut stainless steel | As small as .5mm pitch |
| Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
| Partial Turnkey | | |
| Assembly Types | Selected Component Types | Selected Other Capabilities |
| Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
| Thru-hole | As small as 0201 with design review | Repair/Rework services |
| Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
| Single or double sided placement | | Box Build/Electromechanical Assembly |
| | | Sub-assemblies |
About Us :With specialist knowledge of integrated design and manufacturing solutions for high technology, high mix and complex products, we offer a complete electronics assembly service from design - electronic, mechanical and software -prototype, new product introduction, global procurement, in house tooling and moulding, PCB assembly, box build and test, packaging and global logistics.We are offering electronic board design to following big customers all over the world
Your electronic board design demand will be perfectly handled by our professional production line and responsible work team.
What can we do for you?
1.Professional,Competitive price and Fast delivery time
We engaged in this area for almost 15 yeas, skilled engineer can help you process the project well and perfect,
also we own our factory,that we can control the cost and delivery time very well.We can try best to meet your request.
2.Protect our customer profit well.
Even we have very strictly quality control system,but we still can`t promise every part you received will 100% perfect,
so if there is any defective part you received,you just need to offer us the evidence(such as picture),we will check and
confirm it.After that,we will repair or redo them.
Because of our strictly quality control system,so we have the confidence to promise our customer with this.Please kindly
noted that it`s our advantage compare with others,we realize that only the high quality and good service can keep the friendly
and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
