Professional Factory 3td49 100A Mechanical Interlock AC Contactor

Name: Professional Factory 3td49 100A Mechanical Interlock AC Contactor
Brand: all-electronics-online.com
SKU: 732263332
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	3TD49

Product Description

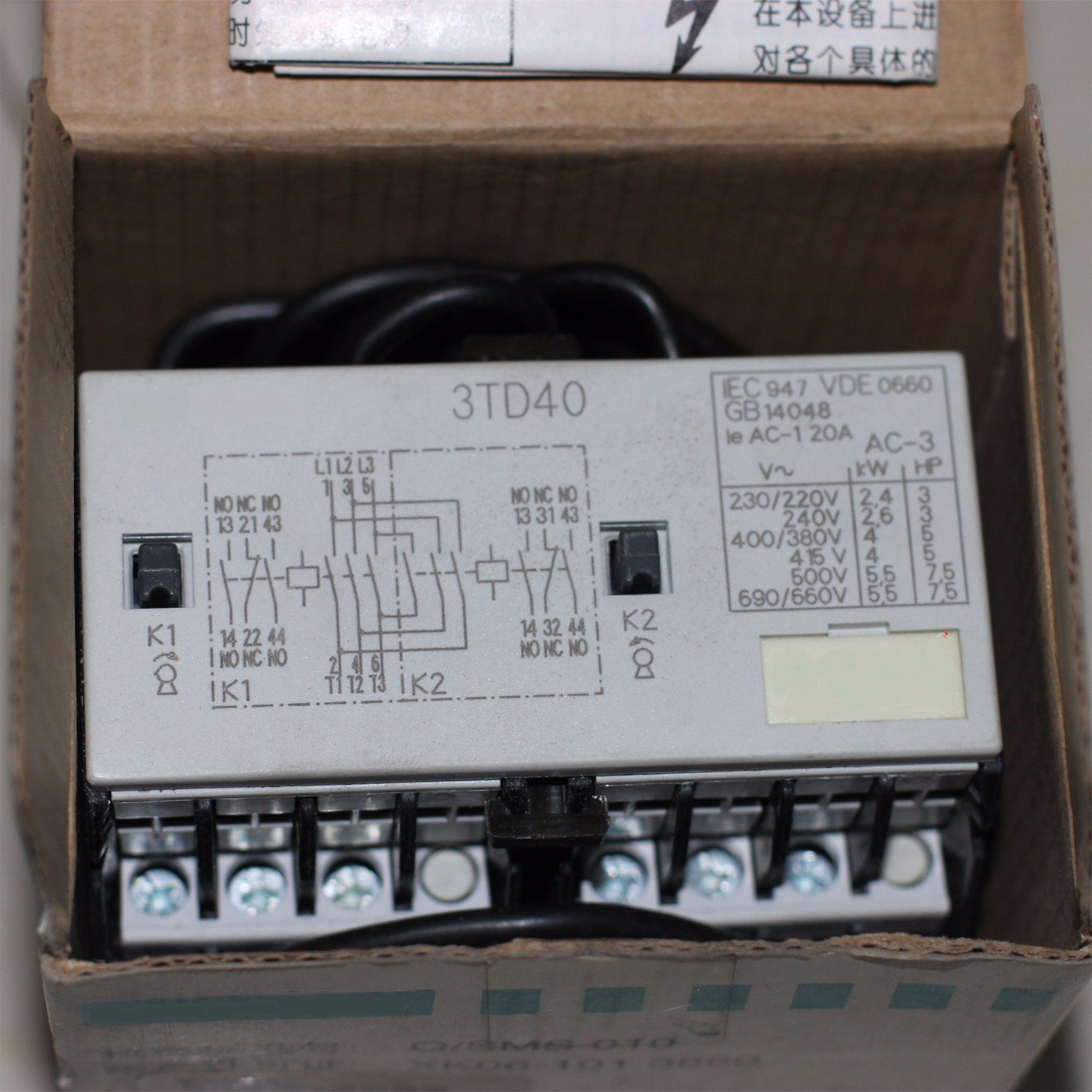

3TD40 mechanical interlock ac contactor

1.Application

--------------------------------------------------------------------

3TD Mechanical Interlocking Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, current 300A, for convertible controlling the motor.t's mechanical interlocking device ensures contact changeover of the two convertible contactors

1. 3TD Contactor up to 660V AC 50Hz or 60Hz, 330A;
2. For convertible controlling the motor;
3. Sure contact changeover

2.Specification

--------------------------------------------------------------------------------------

Type	Rated current (A)	Rated operating current at AC 3 380V (A)Rated operating current at 660V (A)			The power of controlled motor (KW)			Type of auxiliary contact
					AC 3			AC 4
		380V	660V	380V		660V	380V	660V
3TD40	20	9	3.3	4		5.5	1.4	2.4
3TD41	20	12	4.3	5.5		7.5	1.9	3.3
3TD42	30	16	7.7	7.5		11	3.5	6
3TD43	30	22	8.5	11		11	4	6.6
3TD44	45	32	15.6	15		23	7.5	13
3TD45	45	38	18.5	18.5		23	9	15.5
3TD46	70	45	24	22		39	12	20.8
3TD47	70	63	28	30		55	14	24.3
3TD48	90	75	34	37		67	17	29.5
3TD49	90	85	42	45		67	21	36
3TD50	150	110	54	55		100	27	46.9
3TD51	150	140	68	75		100	35	60
3TD52	180	180	75	90		156	38	66
3TD53	220	205	96	110		156	50	86
3TD54	300	250	110	132		235	58	100
3TD55	300	300	125	160		235

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
