Professional Factory Cjx2-E LC1-E Electrical Magnetic AC Contactors Electrical Contactor

Name: Professional Factory Cjx2-E LC1-E Electrical Magnetic AC Contactors Electrical Contactor
Brand: all-electronics-online.com
SKU: 732229862
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-E

Product Description

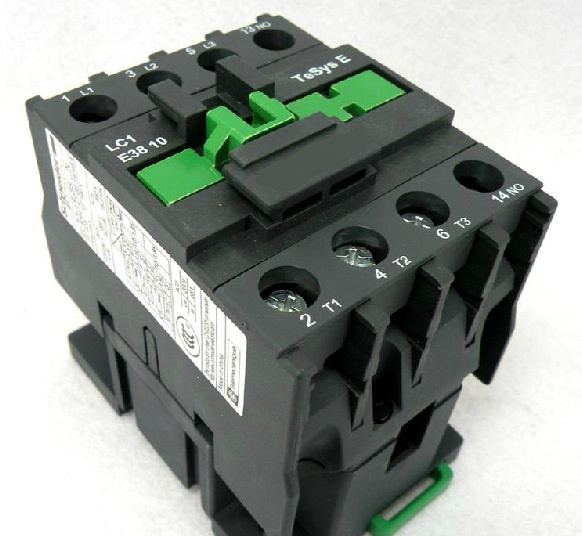

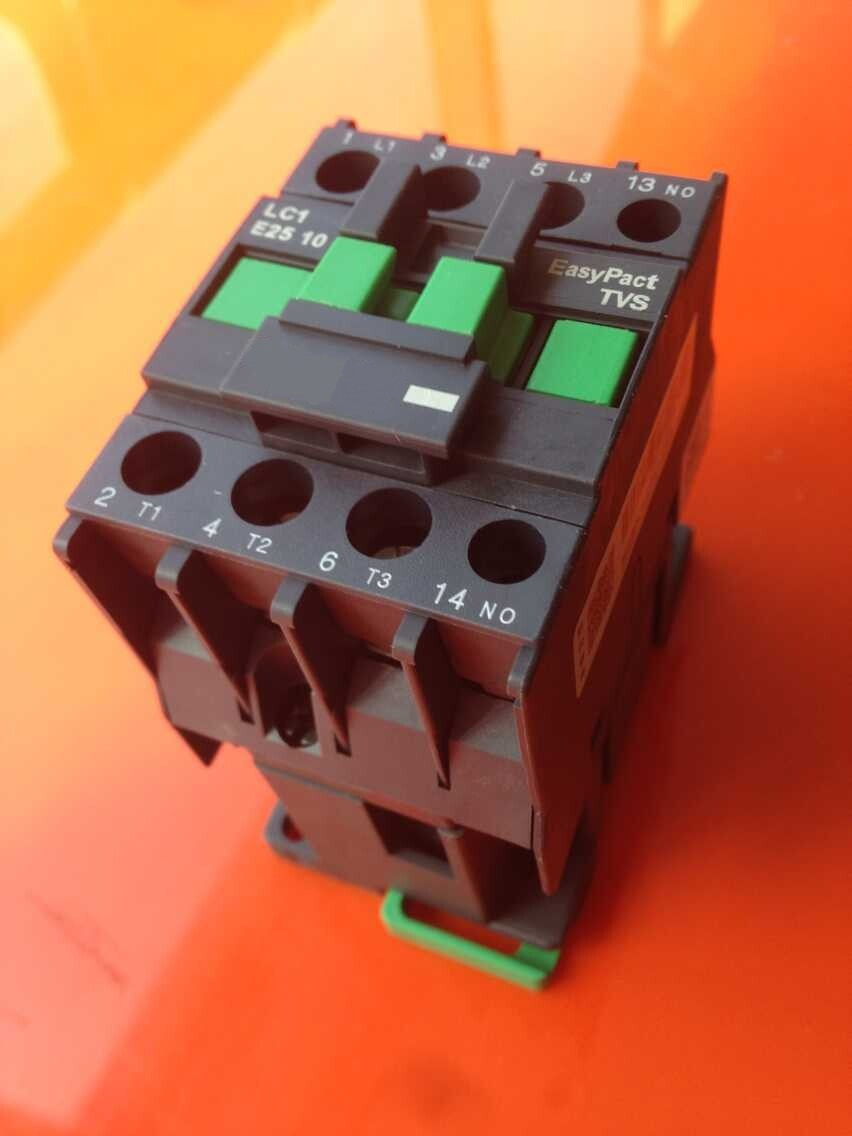

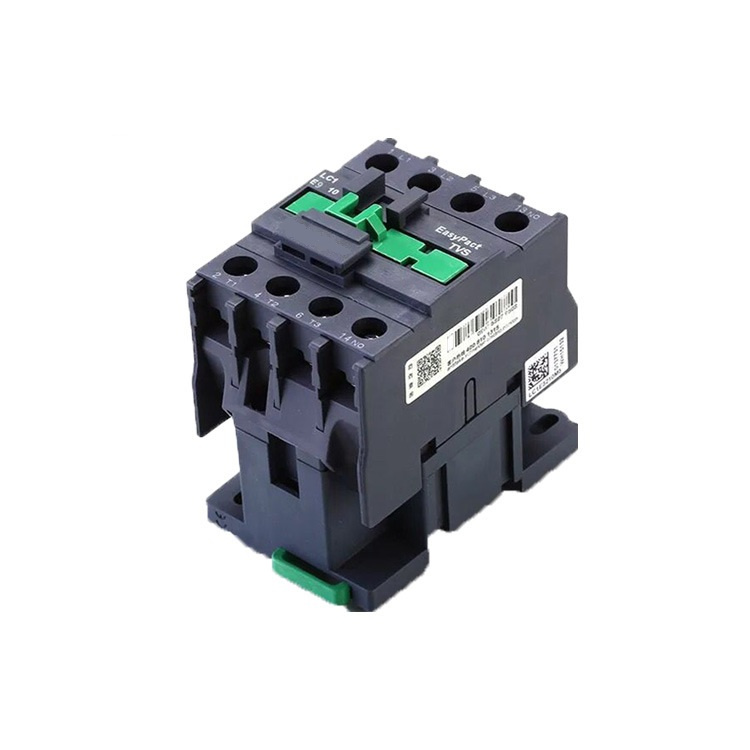

LC1-E12 mini ac contactor lc1-e

LC1-E series of AC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, toconnect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flashover design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE Lc1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.

Type	Rated operational current(380A)	AC-3use group				contact number(1)
		Control power KW
		220V	380/415V	440/500V	600V
LC1-K06 LP1-K06 LC2-E06 LC1-E06	6	1.5	2.2	3	3	3P+NC 3P+NO
LC1-K09 LP1-K09 LC2-E09 LC1-E09	9	2.2	4	4	4	3P+NC 3P+NO
LC1-K09 LP1-K09 LC2-E09 LC1-E09	12	3	5	5	5	3P+NC 3P+NO

Type/Parameters		LC1-K06	LC1-K09	LC1-K12
AC-3use group rated working current A	380V	6	9	12
	660V	5	7.5	10
Conventional thermal current (1th) V		16	20	20
Rated working voltage(Ue) V		380 660
Rated insulation voltage(Ui) V		390
