Professional Factory for 3ve1 Motor Protection Circuit Breakers

Name: Professional Factory for 3ve1 Motor Protection Circuit Breakers
Brand: all-electronics-online.com
SKU: 730819272
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	3VE1
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Certification:	CCC

Product Description

Specifications

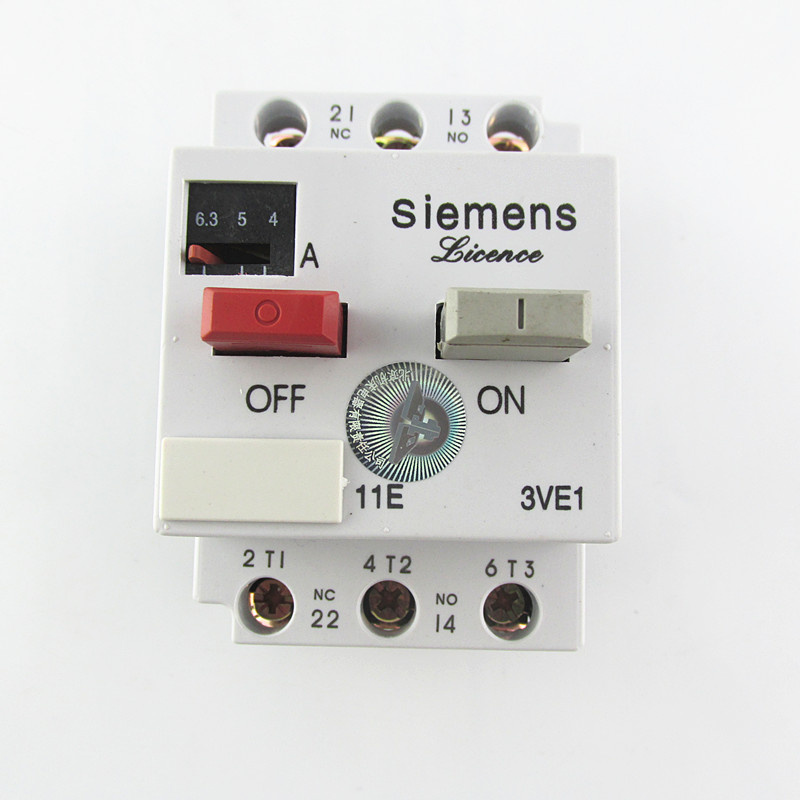

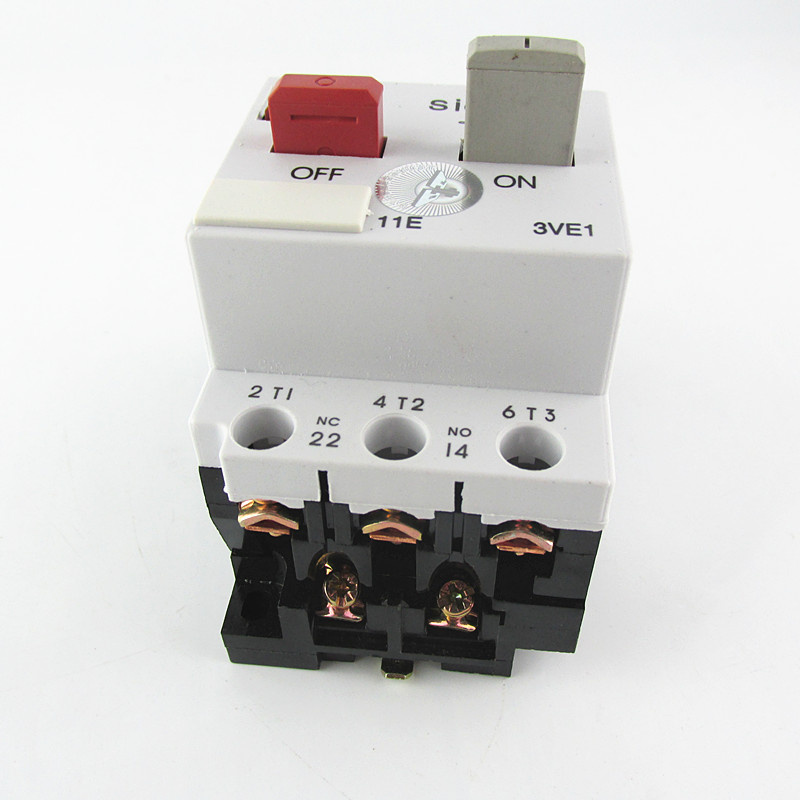

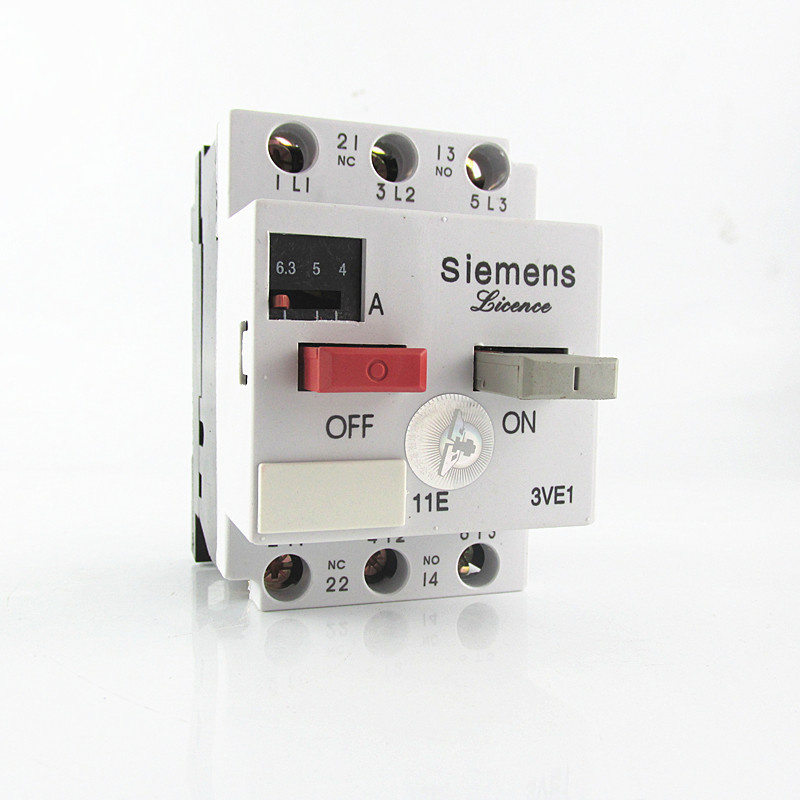

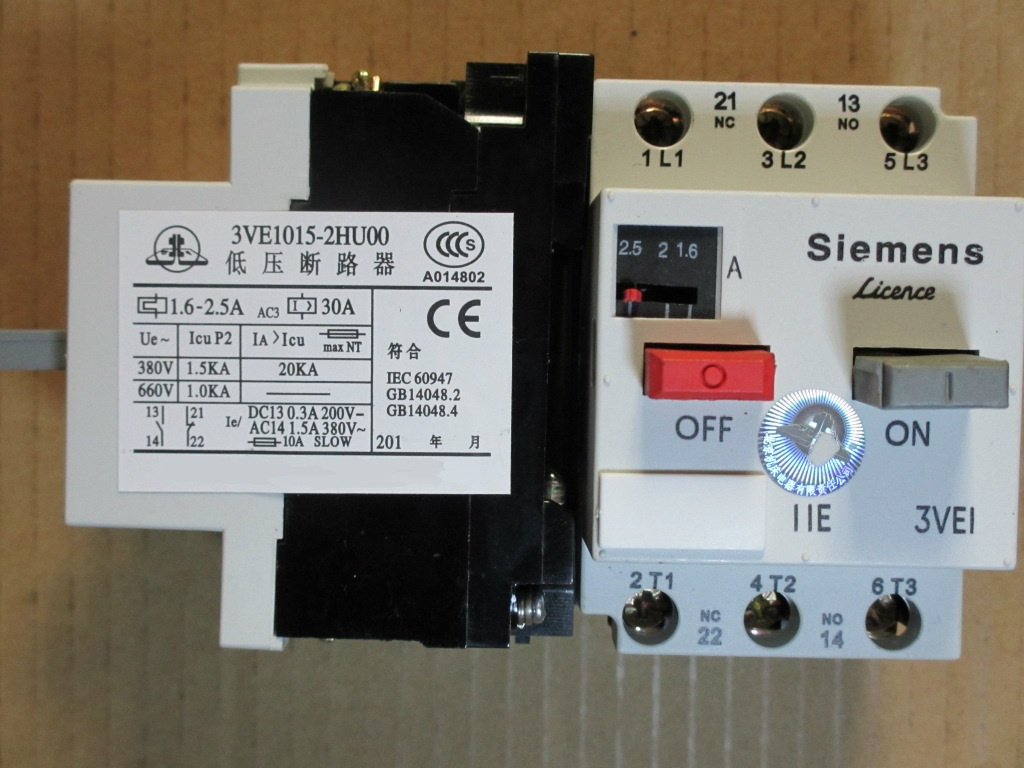

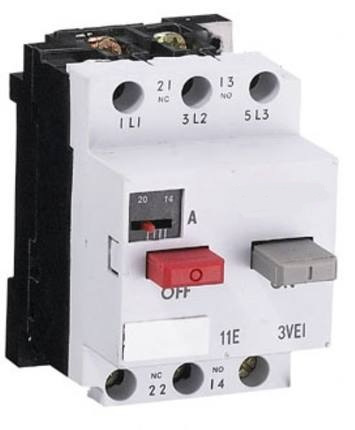

Motor protector 3VE1 3VE3 3VE4 Motor Protection Circuit Breaker

Application

3VE Motor protection circuit breaker is suitable in AC circuit of 50Hz or 60Hz, voltage up to 660V and current up to 0.1-63A and used to prevent small capacity motor and circuits from overload and short circuit. It can be also used as direct starter for starting the motor and a switch for changeover the circuit under normal conditions.

Specifications

Type		3VE1	3VE3	3VE4
Pole		3	3	3
Rated current (A)		20	32	63
Rated Voltage (V)		660	660	660
Rated Insulation Voltage (V)		660	750	750
Current Setting Range (A)		0.1~0.16 0.16~0.25 0.25~0.4 0.4~0.63 0.63~1 1~1.6 1.6~2.5 2~3.2 2.5~4 3.2~5 4~6.3 5~8 6.3~10 8~12.5 10~6 14~20	1~1.6 1.6~2.5 2.5~4 4~6.3 6.3~10 8~12.5 10~16 12.5~20 16~25 22~32	3.6~10 10~16 16~25 22~32 28~40 36~50 45~63 45~56
Power of Controlled Motor (KW)	220V	5.5	9	18
	380V	10	16	32
	660V	13	26	58
Mechanical life (1×10⁴)		10	10	3
Protective Feature	1.05Ie	Not Act Within 2hrs
	1.2Ie	Act Within 2hrs
	12Ie	Action Snap

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
