Professional Factory for Automotive Time Delay Relay Electronic Time Delay

Professional Factory for Automotive Time Delay Relay Electronic Time Delay
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: AH2-Y

Product Description

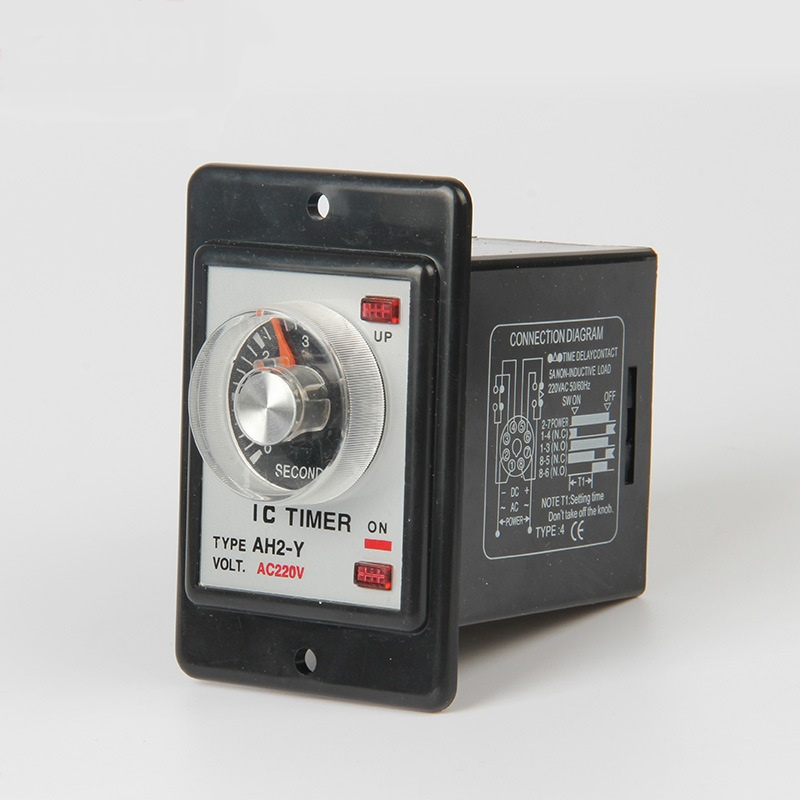

AH2-Y timer relay

Dimensions(mm)88Hx58Wx68D

Socket type:PF083A  DC12V-48V AC12V-380V 50HZ

Different timing range on requiremt

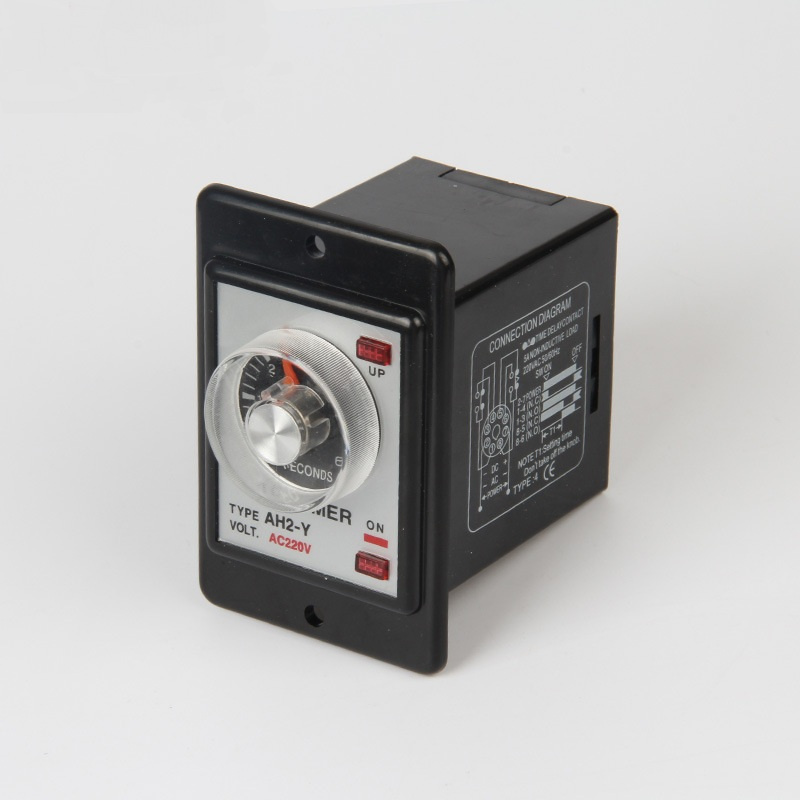

Flush type mounting Time Delay Relay AH2-Y

Technical Data

Classification

Timer

Model

AH2-N

AH2-Y

Dimensions

61H×49W×70D

Mounting & Socker

Surface(-N)

PF083A(E), PS-08



Flush(-Y)



US-08, P3G-08

Full Timing Range

Sec.: 1, 3, 6, 10, 12, 30, 60Min.: 3, 6, 12, 30, 60 Hr.: 3, 6, 12, 24

Rated Voltage

DC(V): 12~24V AC(V): 12~240V

Indicator Operating

ON, UP Two Indicator Lamp

O/P Contact

Model

AH2-N1AH2-Y1

AH2-N2AH2-Y2

AH2-N AH2-Y

Time Limit 1C

5A



5A

Time Limit 2C



5A



Instantenous 1C





5A

Life

Mechanical

5×106times

Electrical

105times

Accuracy

Repea Error

±1% Max.

Setting Error

±10% Max.

Voltage Error

±1% Max.

Temp. Error

±2% Max.

Reset Time

0.1 Sec. Max.

Consumed Power

3VA

Ambient Temperature

-10ºC~+55ºC

Ambent Huminity

48~85%RH

Weight

220g

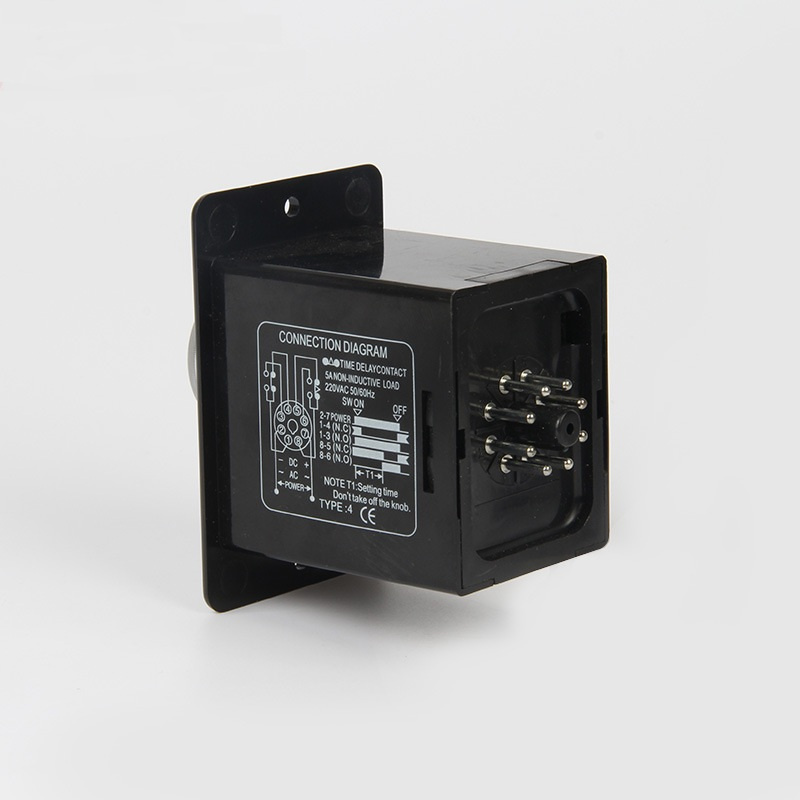

Connection Diagrams & Timing Chart

33D

33E

33F
