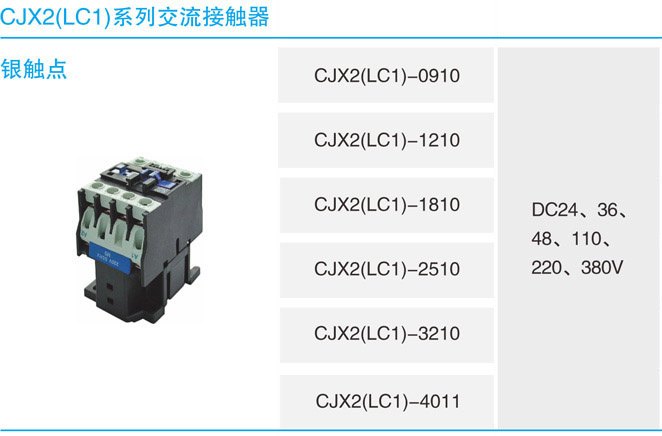

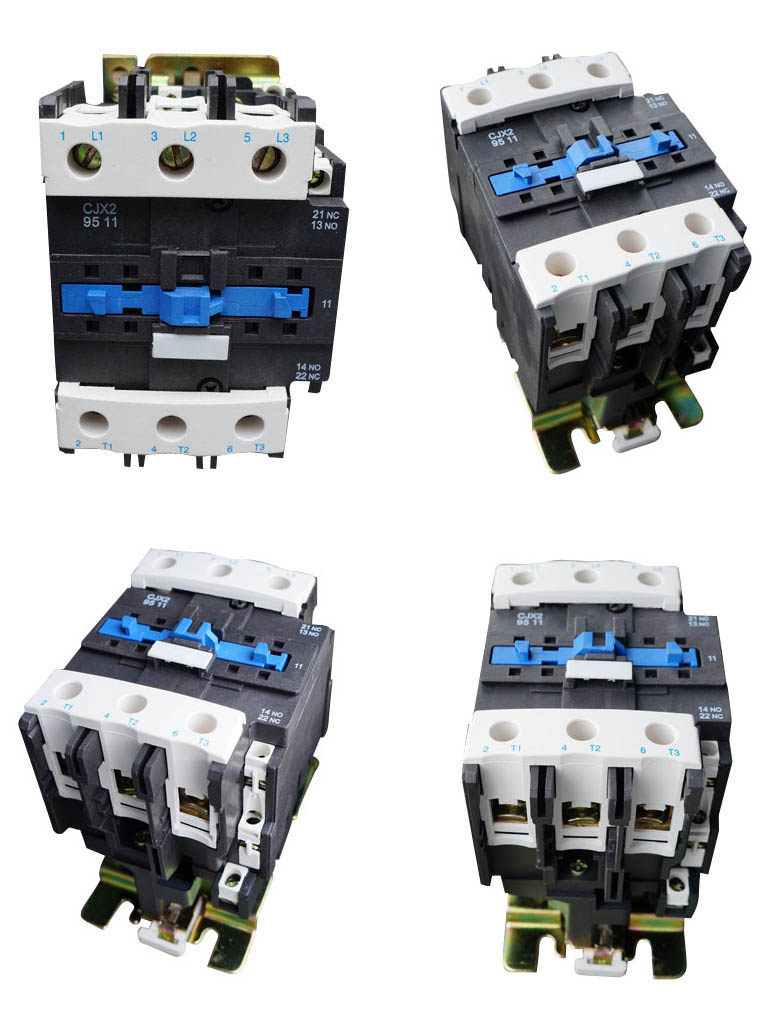

Professional Factory for Cjx2 Types of AC Contactor

Name: Professional Factory for Cjx2 Types of AC Contactor
Brand: all-electronics-online.com
SKU: 728114002
Availability: InStock
Rating: 4.4 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2

Product Description

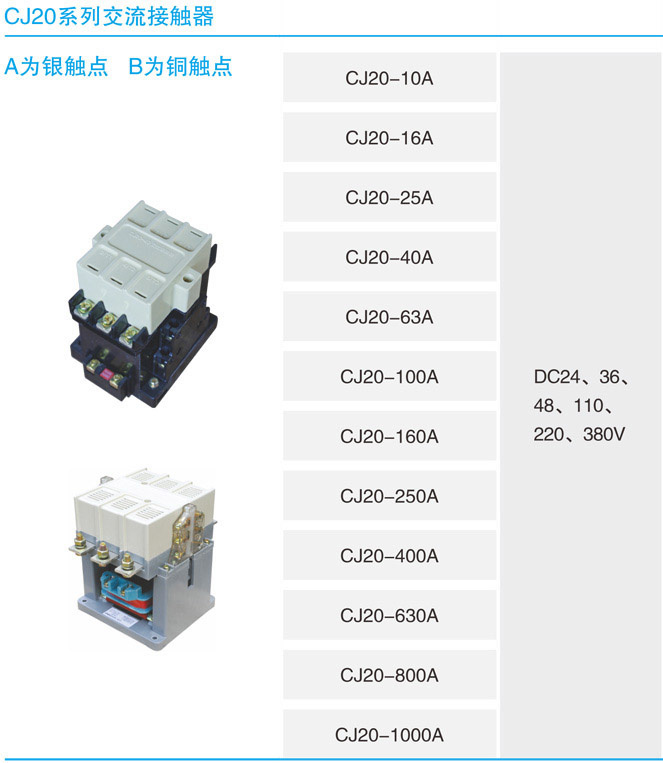

1.CJ20 Series AC Contactor is mainly used for electric electric power circuit of AC 50/60Hz,Rated voltage to 660V(Individual grade to 1140V),Current to 630A for frequently making and breaking circuit and control AC motor.
2. it can be formed electromagnetic starter with thermoal relay or electronic protector for protecting circuit.
3. The contactor is suitable for the following rated duty:eight-hour duty,interrupt duty,interrupted period duty,short time duty.
4.The products comply with IEC60947-4.

Specifications

Type	Rated	Rated	Control power under AC-3 use category Pe kW
	insulation	thermal current	Control power under AC-3 use category Pe kW
	voltage(V)	(A)	220V	380V	660V	1140V
CJ20-10	AC690V	10	2.2	4	4	-
CJ20-16		16	4.5	7.5	11	-
CJ20-25		32	5.5	11	13	-
CJ20-40		55	11	22	22	-
CJ20-63		80	18	30	35	-
CJ20-100		125	28	50	50	-
CJ20-160		200	48	85	85	-
CJ20-160/11	AC1140V	200	-	-	-	85
CJ20-250	AC690V	315	80	132	-	-
CJ20-250/06		315	80	132	190	-
CJ20-400		400	115	200	220	-
CJ20-630		630	175	300	-	-
CJ20-630/06		630	175	300	350	-
CJ20-630/11	AC1140V	400	-	-	-	400

Type	Rated operation	Holding power(KW)	Energy	Temperature rise	Noise
	voltage Ue(V)		saving rate	K	dB
CJ20-40	220,380	5.7	86	>15	<25

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
