Professional Factory for Dz30-32 (DPN) Mini Circuit Breaker, Type of Electric Circuir Breakers

Name: Professional Factory for Dz30-32 (DPN) Mini Circuit Breaker, Type of Electric Circuir Breakers
Brand: all-electronics-online.com
SKU: 832910265
Availability: InStock
Rating: 4.3 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DPN
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

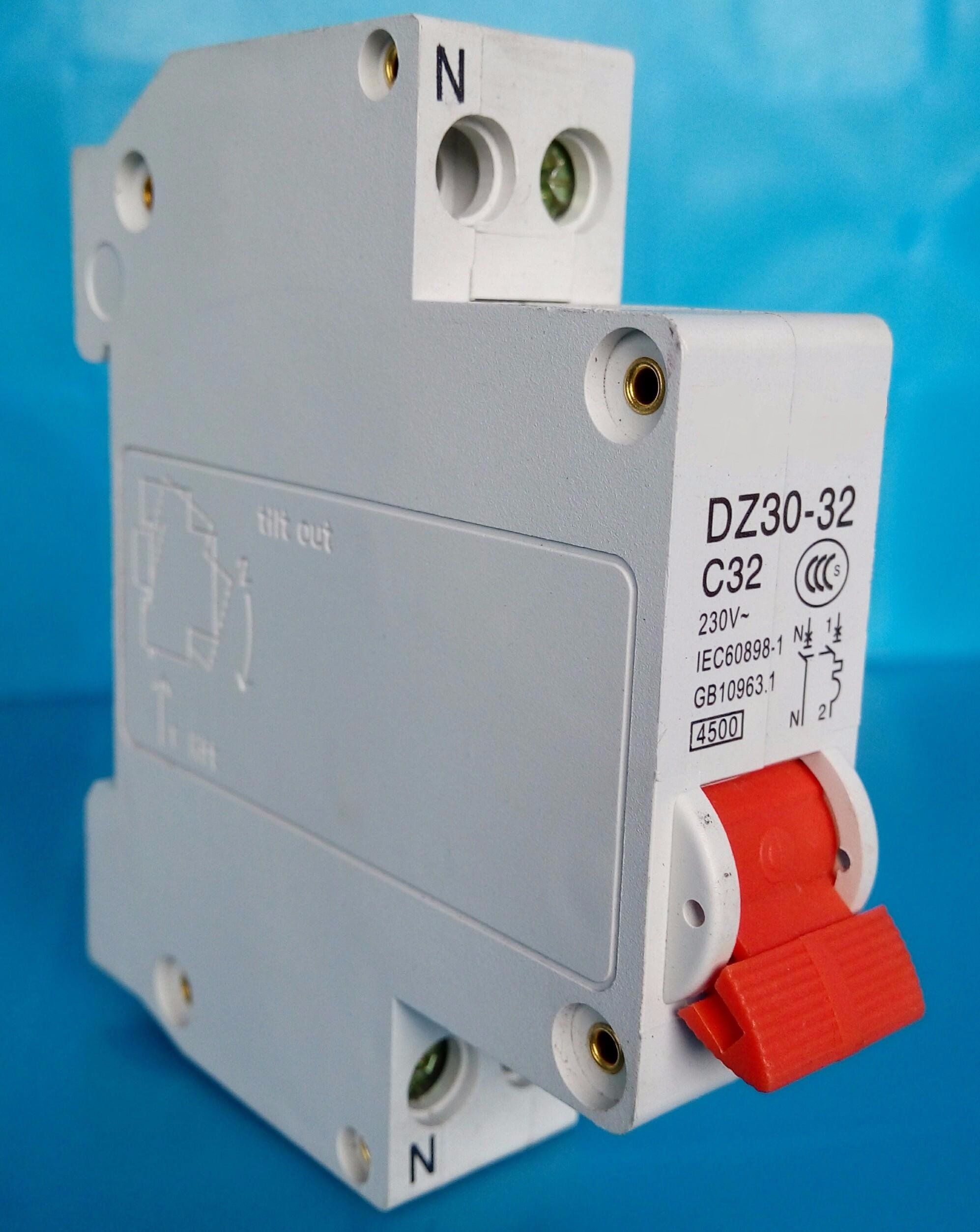

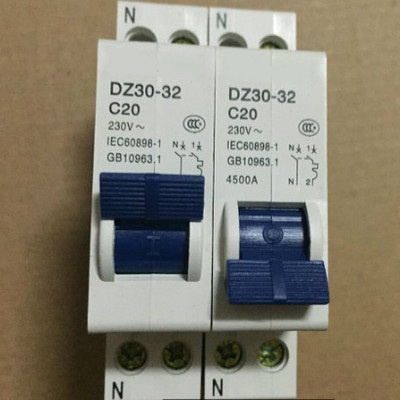

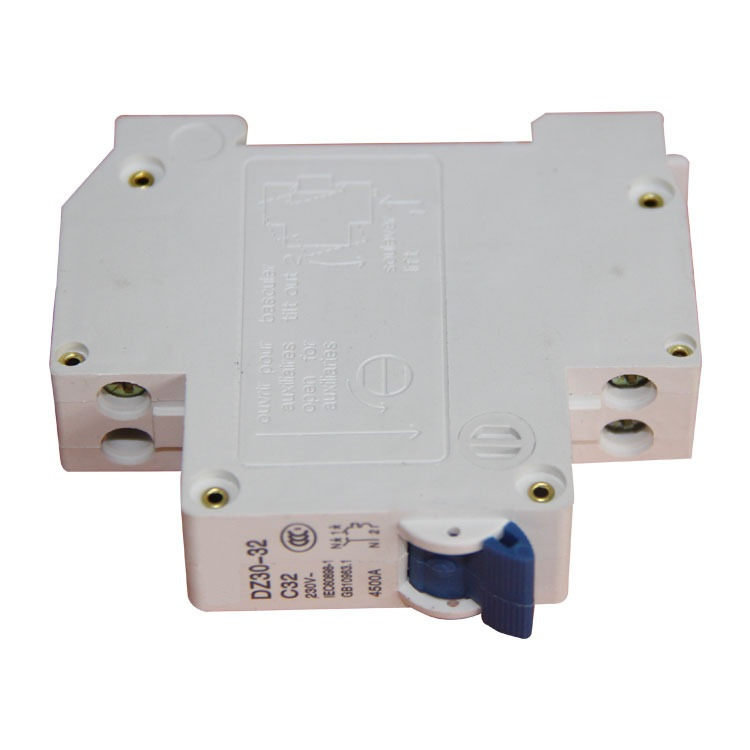

DZ30 series miniature circuit breaker is applicable to the circuit with an alternating current of 50 or 60Hz, rated voltage of 230V, and rated current up to 32A for overload protection and short circuit protection, and also for notfrequent operational transformation in the circuit under normal condition. This product can be applied to various places such as industrial, commercial, and tall buildings, and residential houses.

Standard	IEC 60898-1
Rated current In (A)	6/10/16/20/25/32
Poles	1P+N
Rated voltage Ue (V)	230
Insulation voltage Ui (V)	500
Rated fequency	50/60Hz
Rated breaking capacity (A)	4500
Rated impulse withstand voltage (KV)	4
Dielectric test viltage at ind. Freq.for 1 min (KV)	2
Pollution degree	2
Thermo-magnetic release characterisic	C
Electrical life	10000
Mechanical Life	8000
Protection degree	IP20
Reference temperature for setting of thermal element	+30ºC
Ambient temperature	-5~+40ºC
Storage temperature	-25~+70ºC
Terminal connection type	Cable/Pin-type busbar
terminal size top/bottom for cable (mm²)	1~16
tightening torque	2Nm
Mounting	On din rail EN60715 (35mm)
Connection	From top and bottom

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
