Professional Factory for H3ba-8h Latching Electrical Digital Timer Relay

Name: Professional Factory for H3ba-8h Latching Electrical Digital Timer Relay
Brand: all-electronics-online.com
SKU: 731159872
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H3BA-8H

Product Description

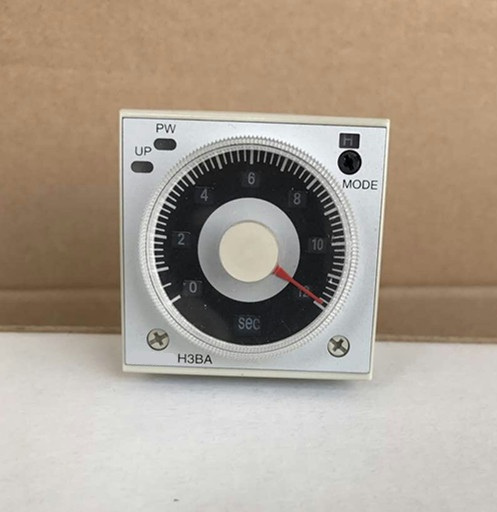

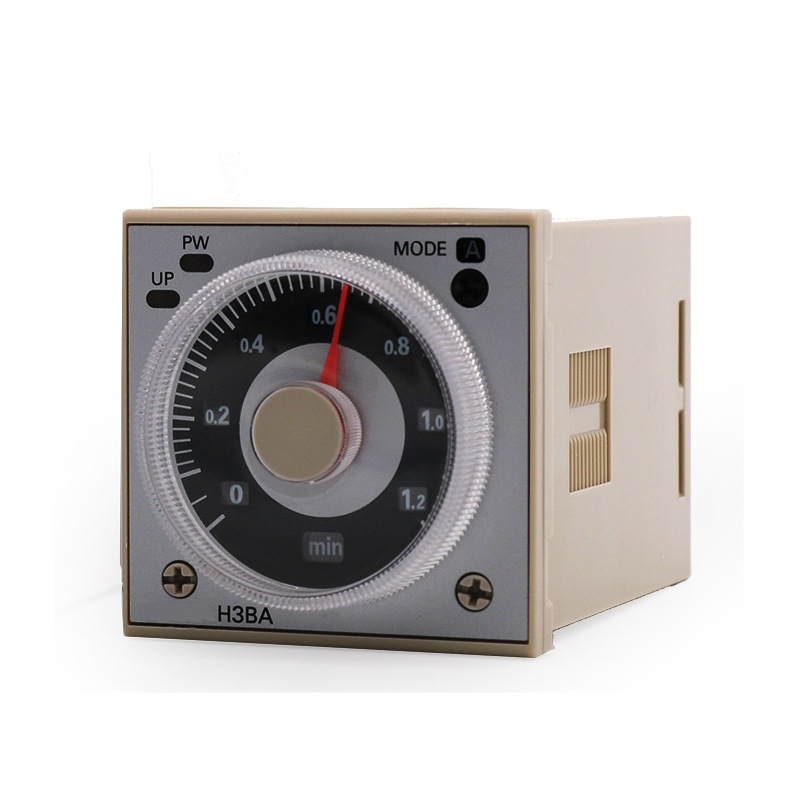

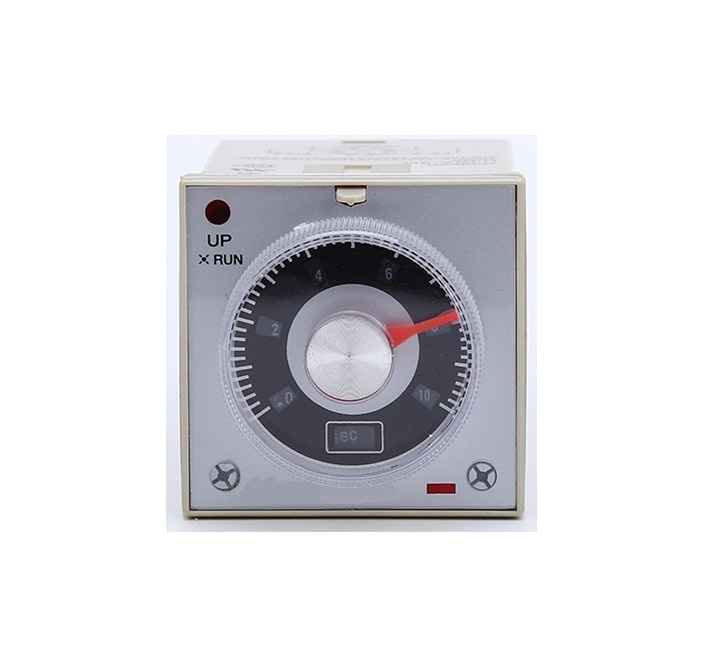

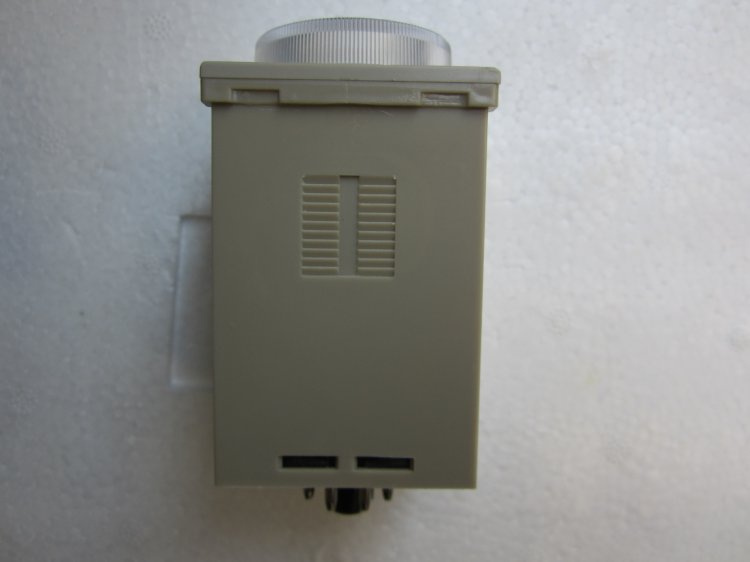

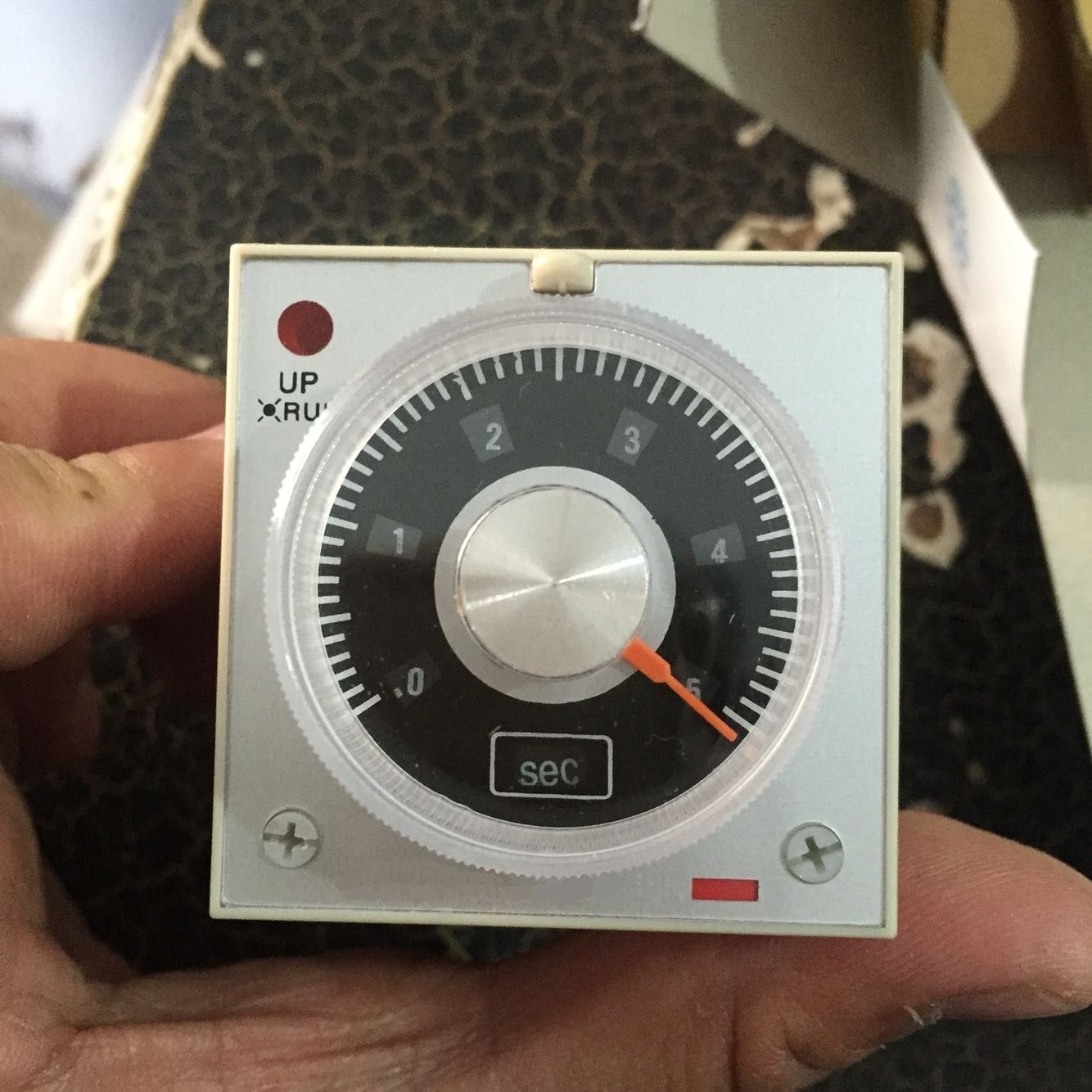

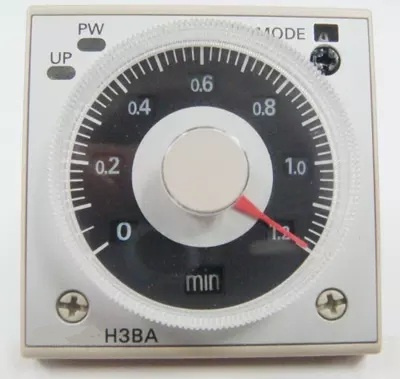

H3BA Control Circuit Electronic Countdown Multi Range Time Delay Relay with CE

Features

Used to control time sequence

With front / back connecting socket

LED display

Voltage: AC12-240V 50/60Hz DC12-24V

Contact: ST4P-, ST4P-8: Timed 2SPDT H3BA-8H: Timed 1SPDT, Inst. 1SPDT

Operation: Time-limit operation/self-restting/external reseting

Timing Range: (S, M, H, 10H) 0.05-0.5, 0.5-5H, 0.1-1, 1-10H 0.5-5, 5-50H, 1-10, 10-100H

Technique parameter

Type		H3BA(ST4P)
Dimensions		48HX48WX93.5D
Mounting	Surface (-N)	PF113A(E)		PS-08
Socket	Flush(-Y)	US-11		US-08 P3G-08
Full timing range		0.5SEC~100HRS
Rated voltage		24 to 240V DC/AC DC(V):12,24,48 AC(V):24,50,110,220
Indicator operation		Time operation flicker
O/P Contact	Model	H3BA	H3BA-8		H3BA-8H
	Time limit 1c				5A
	Time limit 2c	5A	5A
	Instantaneous 1c				5A
Service life	Mechanical	5X10000000 times
	Electrical	100000 times
Accuracy	Repeat error	±2% max
	Setting error	±5% max
	Voltage error	±5% max
	Temperature error	±2% max
Reset time		0.5 sec max
Consumed power		100~240VAC: 10VA 12VDC, 24~240VDC: 1.5W
Ambient temperature		-10~+55
Ambient humidity		35-85% RH
Weight		100g

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
