Professional Factory for H3cr-A8 Mini Multi Range Time Delay Relay, Time Relay Timer

Name: Professional Factory for H3cr-A8 Mini Multi Range Time Delay Relay, Time Relay Timer
Brand: all-electronics-online.com
SKU: 731251272
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

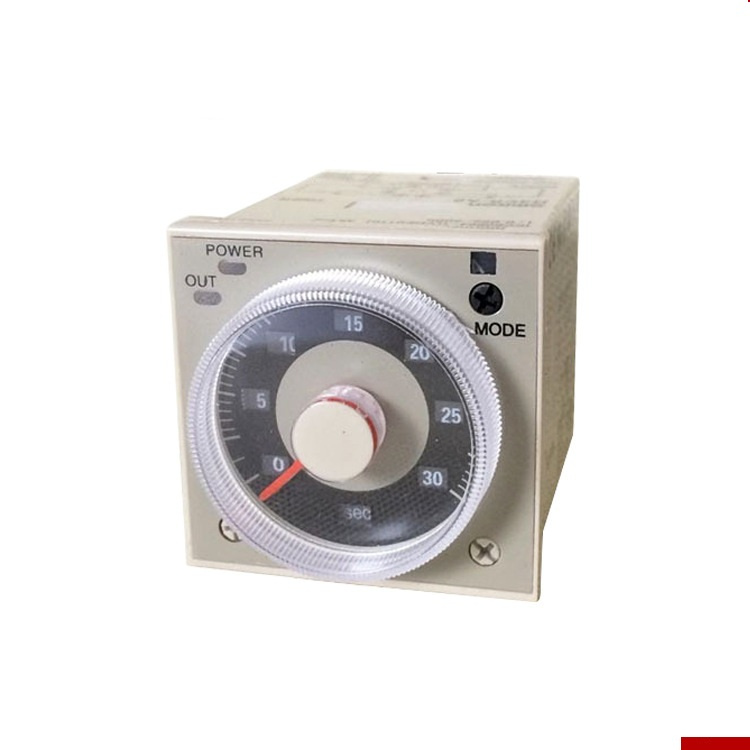

Prod Model:	H3CR-A8

Product Description

- Multiple Operating Modes and Multiple Time Ranges. DIN 48 x 48-mm Multifunctional Timer.
- Time scales from 0.05s to 300h(To adjust the time range switch and time unit to switch).
- A wide AC/DC power supply range greatly reduces the number of timer models kept in stock.
Universal voltage: 24-240VA
High voltage: AC100-240V(DC100-125V)
Low voltage: AC24-48V/DC12-48V
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- A wide range of applications with five operating modes.
- Ecological design with reduced current consumption.
- Easy sequence checking with instantaneous outputs for a zero set value.

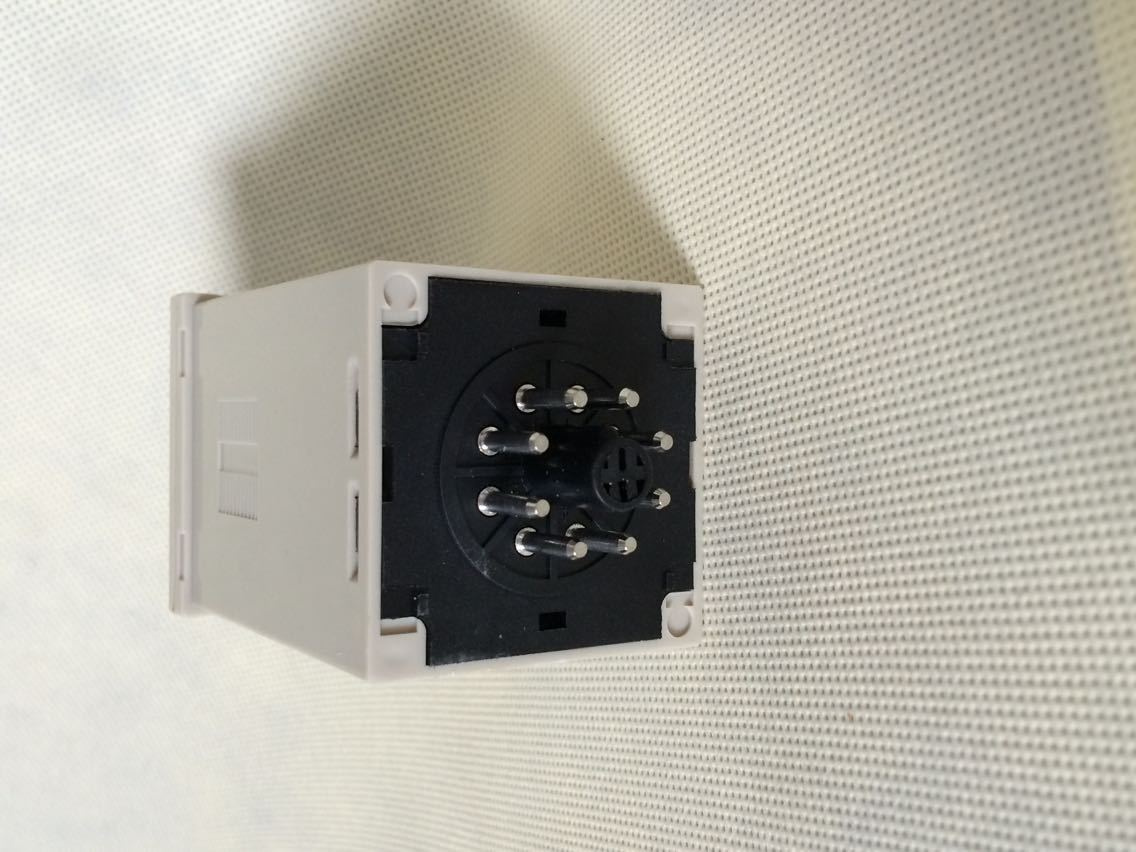

- Front panel or socket mount .
Front panel mounted with a US-08 Socket .
Socket mounted with a PS-08 Socket .
- Two delayed contact (DPDT Relay) Output.
- Large and easy to read dial shows decimal points.
- Timing LED Indicates Output Relay Status.

Technical Data:

Dimensions	48H×48W×81.6D
Mounting & Socket	Surface(-N) PS-08 Flush(-Y) US-08 P3G-08
Full timing range	0.5SEC~300HRS
Rated voltage	100 to 240VAC/100 to 125VDC;24 to 48VAC/12 to 48VDC AC(V):110V, 220V; DC(V):12, 24V
Indicator operating	Time operating flieker
Contact O/P	Time limit 2C 5A Resistive load.
Life	Mechanical 5×10⁷times Electrical 1×10⁵times
Accuracy	Repeat error ±1%max Setting error ±5%max Voltage error ±1%max Temp.error ±2%max
Reset time	0.5sec max
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Consrmed power	100~240VAC:1VA 12VDC,24~240VDC:1.5W
Ambient temperature	-10ºC~+55ºC
Ambient humidity	35~85%RH
Weight	100g
