Professional Factory H3ca LCD Display Output Digital Auto Solid State Time Relay with Ce

Name: Professional Factory H3ca LCD Display Output Digital Auto Solid State Time Relay with Ce
Brand: all-electronics-online.com
SKU: 731208542
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H3CA

Product Description

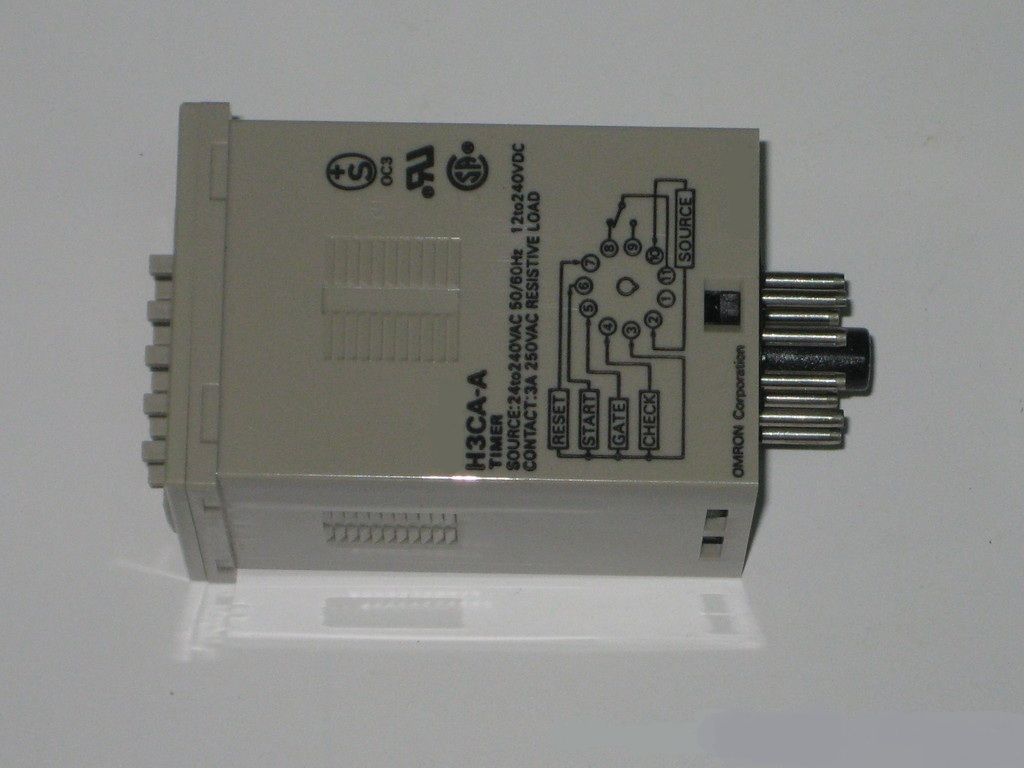

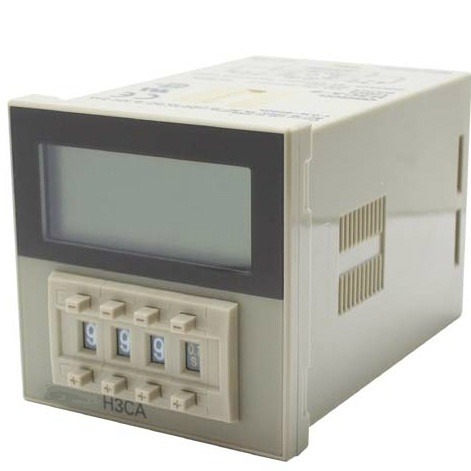

solid state digital timer relay H3CA
1.widely exported to Europe market.
2.small size
3.OEM,ODM,buyer label offered

solid state digital timer relay H3CA

Products Specification:

Part number		H3CA-A	H3CA-8	H3CA-8H
Supply voltage		24 to 240V,50/60Hz/12 to 240VAC	24VAC,100/110/120VAC,200/220/240VAC,50/60Hz
			24V110VDC
Operating voltage		90 to 110% of rated supply voltage	85 to 110% of rated supply voltage
Power consumption	AC	5VA	10VA
	DC	2.5W	2.5W
Timing functions		8 field-selectable modes: A:ON-delay B:Repeat-cycle C:Signal interval/OFF-delay D:Signal OFF-delay E:Interval F:Cycle G:Signal ON-/OFF-delay H:Signal OFF-delay	ON-delay (power supply start)

Part number		H3CA-A	H3CA-8	H3CA-8H
Start,reset,gate inputs		No voltage
Control output	Time limit	SPDT(1C)	SPDT(2C)	SPDT(1C)
	Instantaneous			SPDT(1C)
	Output Max.Load	5A,250 VAC(p.f=1)
	Output Min.load	10 mA,5 VDC
Repeat accuracy		±0.3%±0.05sec(includes variation due to voltage and temperature changes)
Setting error		±0.5%±0.05sec
Resetting system		Power-OFF,external and self-reset	Power-OFF
Power reset		0.5 sec max.	0.1 sec max.

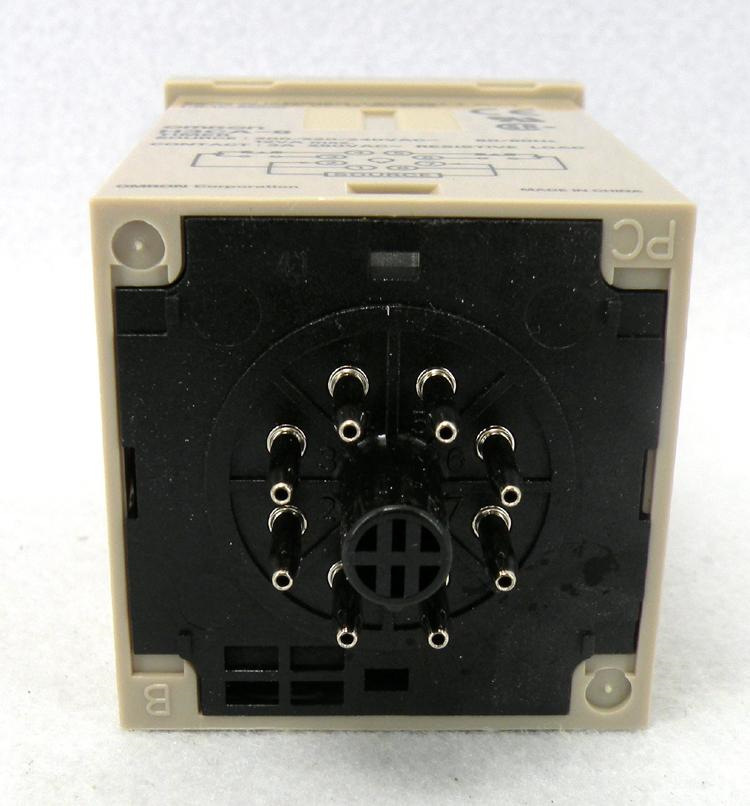

Connection		11-pin	8-pin
Mounting method		DIN track mounting,surface mounting,and flush mounting
Ambient temperature Storage		-10-55 with no icing
Ambient humidity Operating		35 to 85%RH
Insulaton resistance		1000MΩ min.(at DC500VDC)
Dielectric strength		2000V 50/60Hz min between curren-carying and non-curent-carrying parts and between contact and control circuit
		1500V 50/60Hz min between control output terminals and operating circuit
		1000V 50/60Hz min Between contacts
Vibration	Mechanical durability	10 to 55 Hz with 0.75-mm double amplitude each in 3 directions
	Malfunction durability	10 to 55 Hz with 0.5-mm double amplitude each in 3 directions
Shock	Mechanical durability	30G
	Malfunction durability	10G
Service life	Mechanical	10 million operations minimum(under no load,at 1,800 operations/hour)
	Electrical	100,000 operations minmum at maximum ratings
Degree of protection		TECIP40(panel surface)
Weight		Approx:100g

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
