Professional Factory of Wtyk-802 Direct Deal Industrial Usage Bwy (WTYK) -803 Transformer Oil Thermometer

Name: Professional Factory of Wtyk-802 Direct Deal Industrial Usage Bwy (WTYK) -803 Transformer Oil Thermometer
Brand: all-electronics-online.com
SKU: 729213992
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WTYK-803

Product Description

Product Application

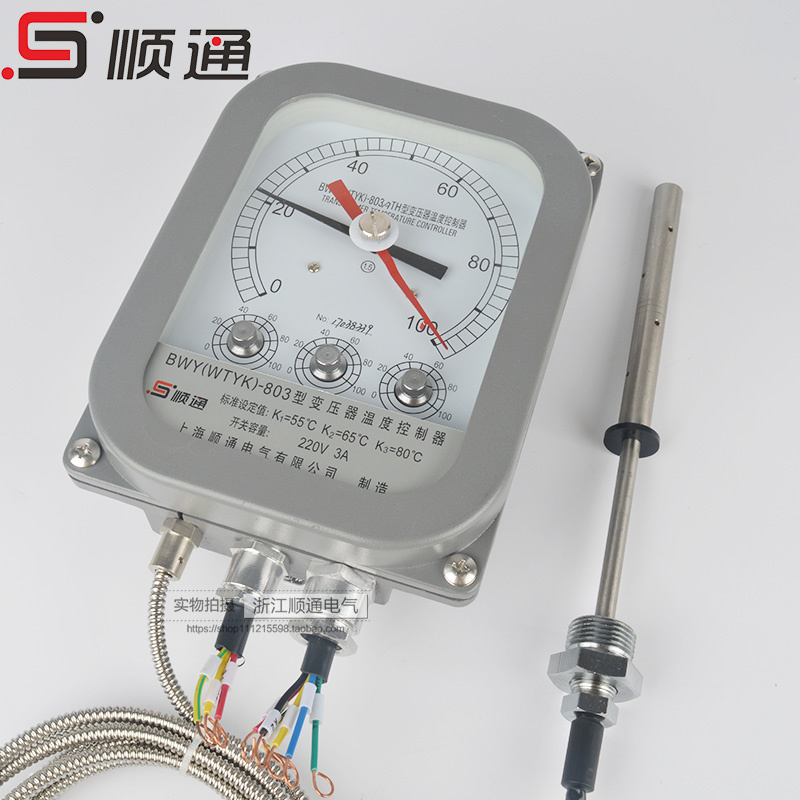

The transformer temperature controller (hereinafter referred to as temperature controller) is mainly composed of elastic elements, capillary tubes, temperature packs and micro switches. When the temperature is heated, the volume increment of package thermal medium temperature thermal expansion generated by the transfer to the elastic element through the capillary, the elastic element produces a displacement, the displacement amplification mechanism by indicating the measured temperature and drive the micro switch, thereby controlling the cooling system in and out. BWY (WTYK) -802A, 803A temperature controller using composite sensor technology, the instrument temperature package to drive the elastic component at the same time, can simultaneously output Pt100 platinum resistance signal, this signal can be transmitted to the control room for hundreds of meters away, synchronous display and control transformer through XMT digital temperature controller. The Pt100 platinum resistance signal can also be converted into a DC standard signal (0~5v, 1~5V or 4~20mA) connected with the computer through digital display instrument.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Color		White
Material		Metal
Output Capability		Pt100 Platinum Resistance
Setting Range		Full range adjustable
Rated power		AC220V/3A
Accuracy		±3 ºC
Switch Differential		6±2 ºC
Keywords		Transformer Oil Thermometer

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
