Professional Factory Pak-6h Contactor Switches

Name: Professional Factory Pak-6h Contactor Switches
Brand: all-electronics-online.com
SKU: 731814002
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PAK-6H

Product Description

contactor switch
1)over 10 years' s history
2)fits any environment
3)competitive price&reliable quality
4)3C&CE

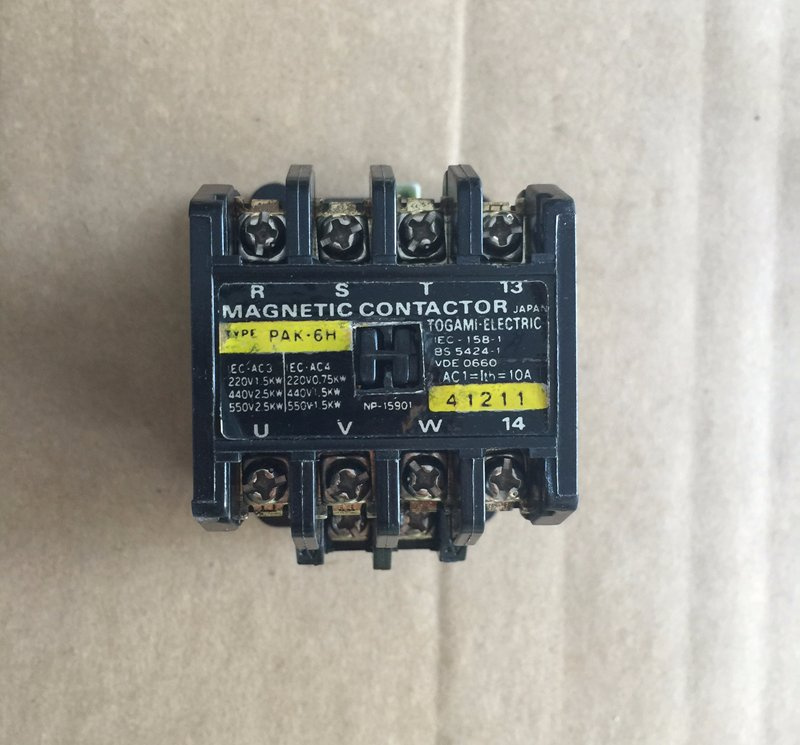

PAK-6H contactor switch

1.APPLICATION:

------------------------------------------------------------------------------

PAK-H series AC contactor is suitable lor circuit 01 AC 50Hz or 60Hz ,voltage up to 500V and currenl up to 60A,to make and break circuit and Irequently start and control AC motor in a lar distance,it can be installed withthermal relay direclly 10 form an eleclromagnelic slarter

2.SPECIFICATIONS

-------------------------------------------------------------------------

Type	Rated Insulated Voltage V	Conventional Thermal Current A	Rated Operation Voltage V	Rated operating current & operating frequency under intermittent periodic duty ( le)				AC-3 PE KW
				AV-3		AV-4
				Le A	Operating Frequeney	Le A	Operating Frequeney
PAK-6H	500	15	200~220	9	1200	3	300	1.5
			380~440	6				2.2
PAK-11H		20	200~220	12	1200	3.3	300	2.2
			380~440	9				4

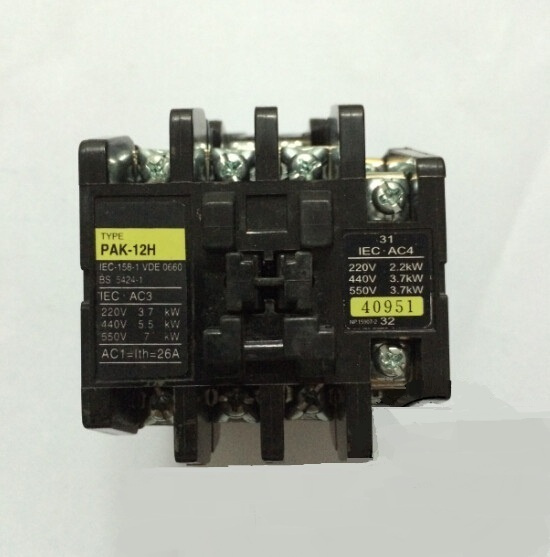

PAK-12H		26	200~220	18	1200	4.8	300	3.7
			380~440	13				5.5
PAK-18H		28	200~220	20	1200	8.5	200	4
			380~440	17				7.5

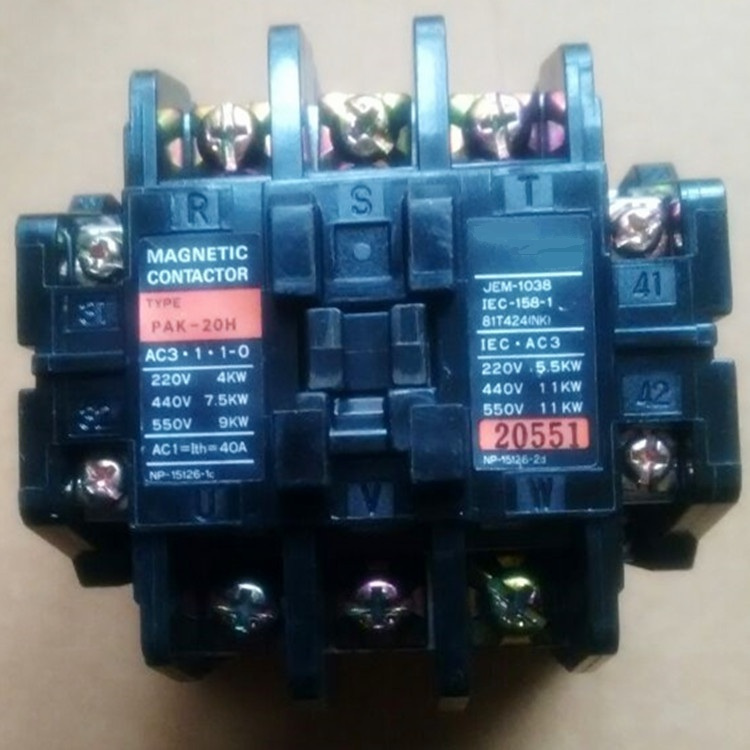

PAK-20H		40	200~220	22	800	8.5	120	5.5
			380~440	20				11

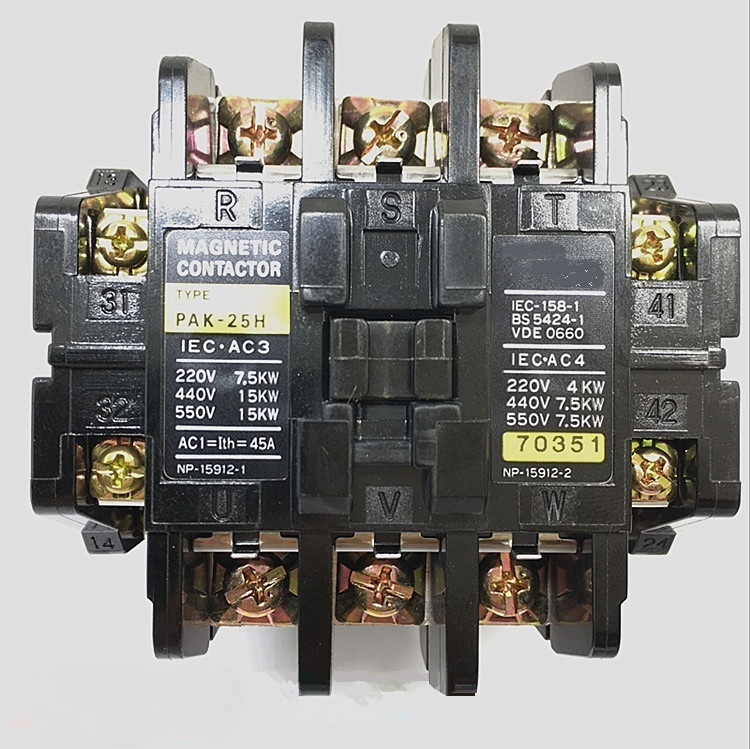

PAK-25H		45	200~220	30	800	11	120	7.5
			380~440	25				15

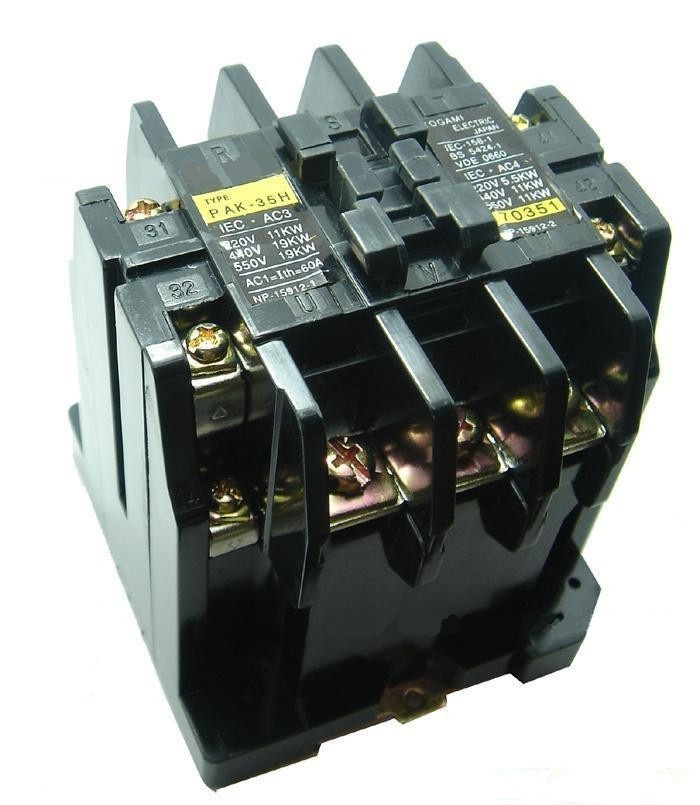

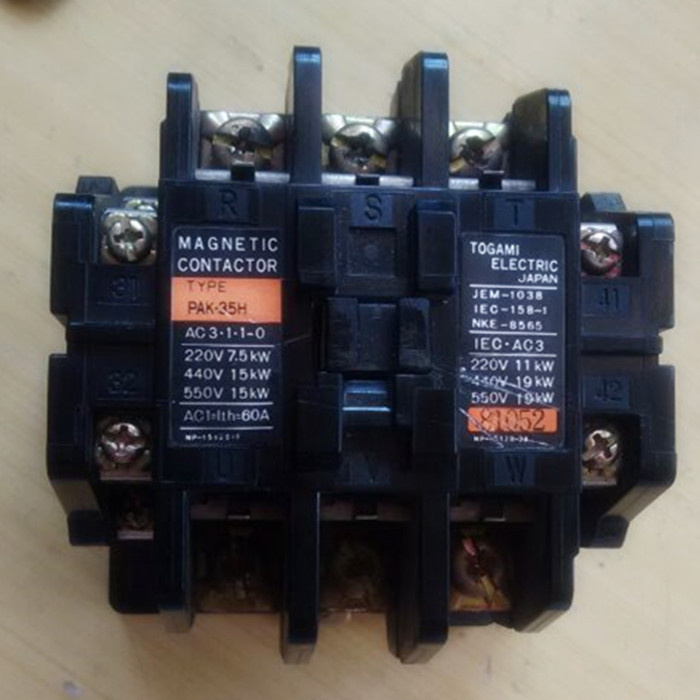

PAK-35H		60	200~220	40	600	16	120	11
			380~440	35				22

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
