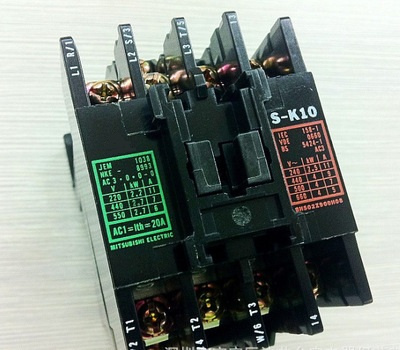

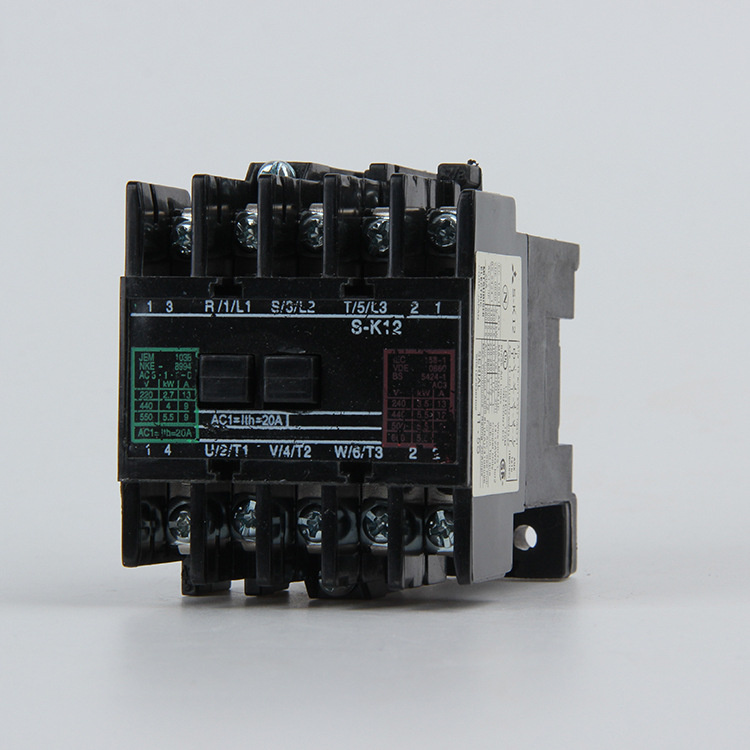

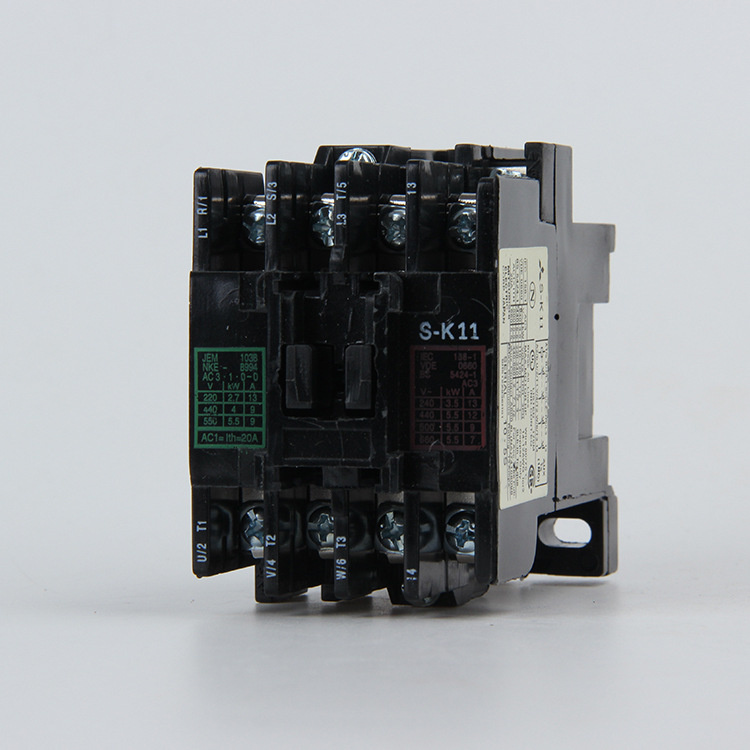

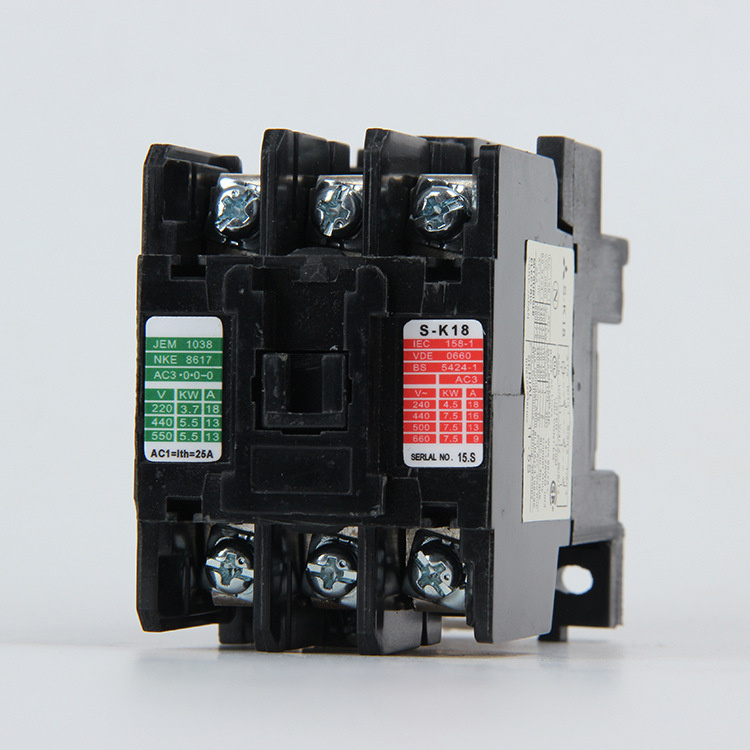

Professional Factory S-K12 Reversing AC Contactor

Name: Professional Factory S-K12 Reversing AC Contactor
Brand: all-electronics-online.com
SKU: 731613682
Availability: InStock
Rating: 4.3 (93 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-K12

Product Description

Specifications

1.50Hz or 60Hz
2.OEM offered

CJX5 series S-K10 electric magnetic contactors household contactor Modular Home Contactor

Package&Delivery: stardard box and carton packing,or according to customers' requirement

--------------------------------------------------------------------------------------Application

S-K series magnetic AC Contactors are a new generation of contactors. The contactor is suitable for making and breaking remote circuits or frequent staring and controlling of AC motor with 50/60Hz rared Voltage up to 660V,rated operating current9,12,16,22,30,40,50and 105A at rated operating voltage 380V under the utilization category AC-3.

Specification

Contactor Type		S-K10	S-K11	S-K12	S-K18	S-K20	S-K21
Rated operating current in 220V(A)		9	13	13	18	22	22
Rated operating current in 380V(A)		5	12	12	16	22	22
Rated operating current in 660V(A)		2.2	7	7	9	9	9
Controlled motor Power under AC-3(KW)	220V	3.3	3	3	4	5.5	5.5
	380V	3.3	4	4	6	10	10
	660V	3.5	4.5	4.5	5.5	10	10
Coil consumption at rated coil voltage		3.5	3.5	3.5	5.5	5.3	5.3
Rated frequency of operation Ops/hr		1800 1200
Electric life under AC-3		1,000,000

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
