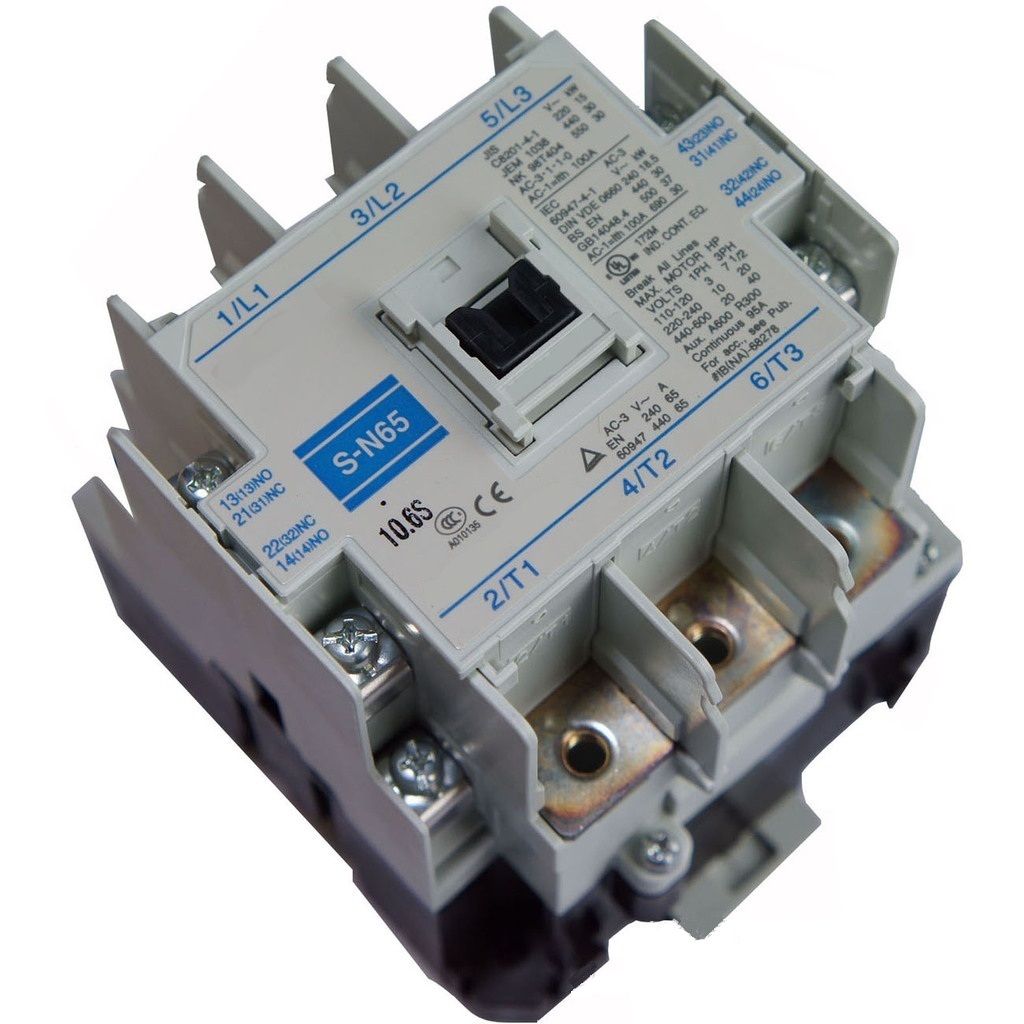

Professional Factory S-N65 S-N AC Contactor

Name: Professional Factory S-N65 S-N AC Contactor
Brand: all-electronics-online.com
SKU: 731632552
Availability: InStock
Rating: 4.4 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-N65

Product Description

S-N series AC contactor are suitable in electrical system with AC 50/60HZ, rated operational voltage up to 660V, In AC-3 usage, rated operational current up to 750A to make or break remote motors of system. And for frequent starting and controlling the motor. After combined with mechanical interlocking device, it is convertible continue-actor for controlling, starting, breaking and reversing of the motor. The products comply with IEC60947-4.

2.SPECIFICATIONS

-------------------------------------------------------------------------

Type			S-N10	S-N11	S-N12	S-N20	S-N21	S-N25	S-N35	S-N50	S-N65	S-N80	S-N95
AC-3 capacity of 3 phase squirrel cage motor AC-3	(A) Rated operating current	220V-240V	2.5	3.5	3.5	5.5	5.5	8.5	12	55	62	85	105
		380V-440V	4	5.5	5.5	11	11	14	20	50	62	85	105
		550V	4	5.5	5.5	11	11	14	20	26	35	52	65
		660V	4	5.5	5.5	7.5	7.5	14	20	17	19	24	30
	(KW) Rated controlled power	220V-240V	11	13	13	22	22	30	40	25	32	40	55
		380V-440V	9	12	12	22	22	30	40	30	40	50	60
		550V	7	9	9	17	17	12	17	2.8	2.8	2.8	2.8
		660V	5	7	7	9	9	12	17	20	20	20	20
Rated heating current 1th(A)			20	20	20	32	32	40	40	60	60	60	60
