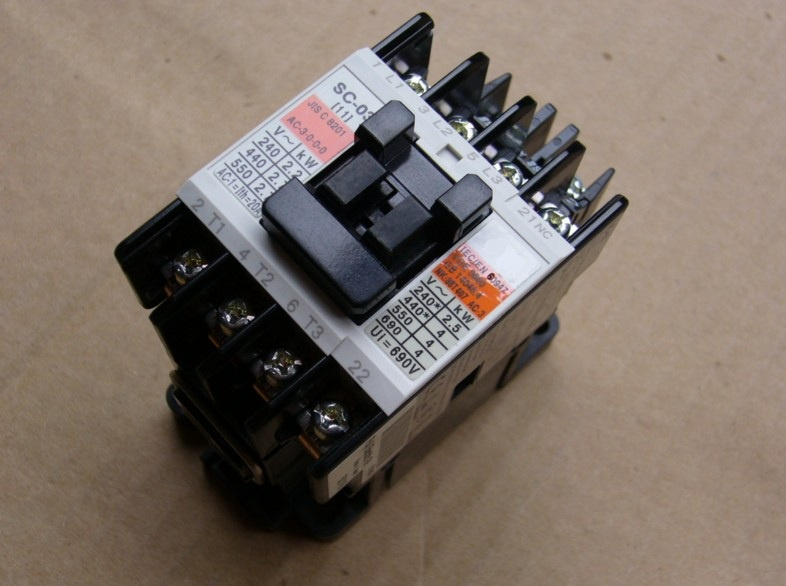

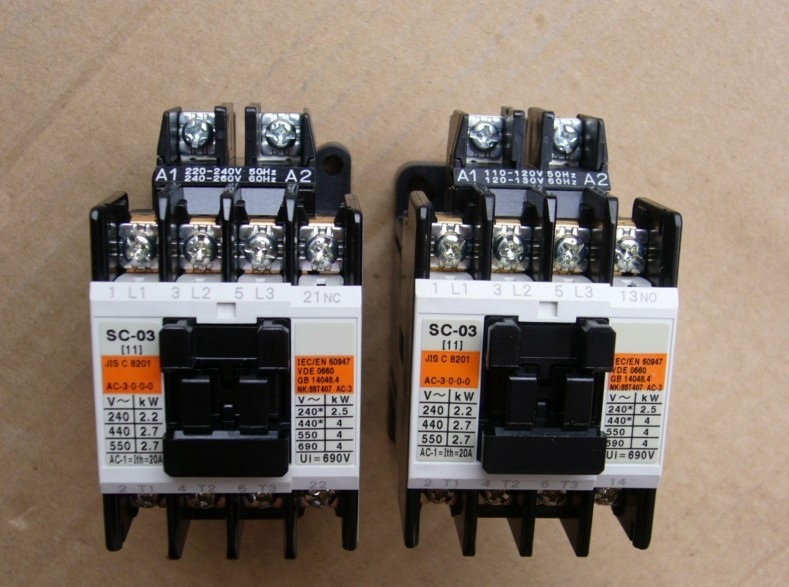

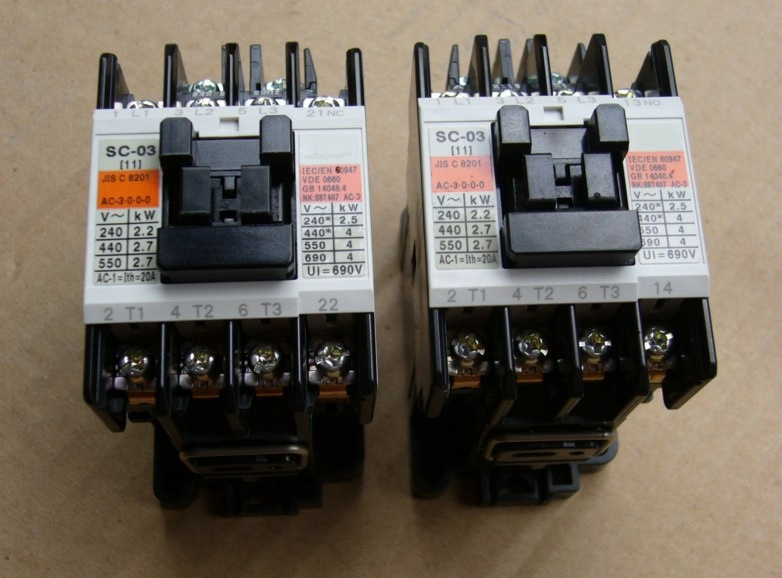

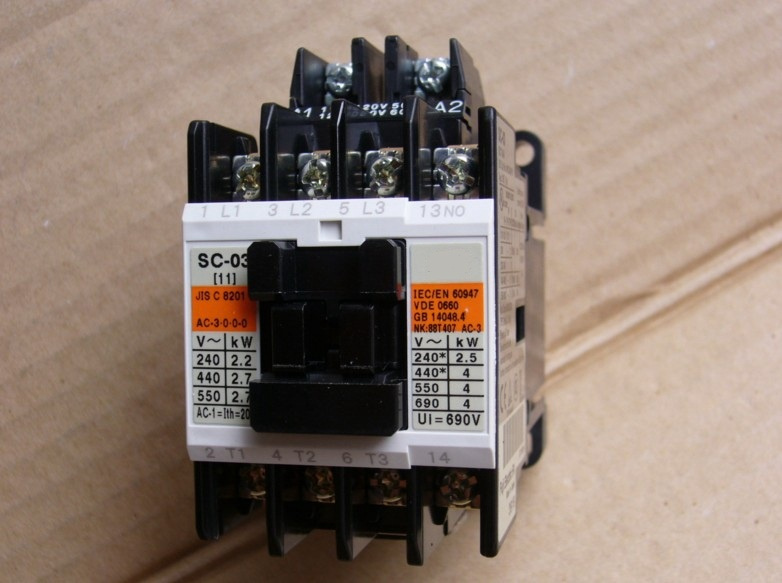

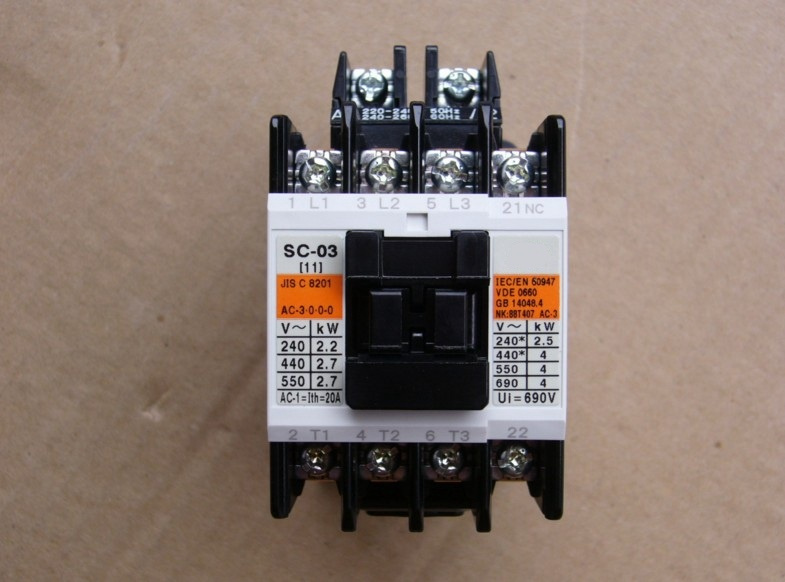

Professional Factory Sc-03 Elevator Electrical Contactor

Name: Professional Factory Sc-03 Elevator Electrical Contactor
Brand: all-electronics-online.com
SKU: 731774892
Availability: InStock
Rating: 4.9 (93 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-03

Product Description

Packaging Detail:	1.standard export packing 2.pakcing desinged by customers' request.
Delivery Detail:	20 days

Specifications

1.Rated up to 660V
2.Suitable:50HZ and 60HZ
3.The current range:9-95A
4.CE certification
5.IEC60947-4-1 stardand

SC AC Contactor

Application

SC AC contactor is suitable for using in the circuits voltage up to 660V 50Hz or 60Hz, rated current up to 150A, for making & breaking, and for frequent starting & controlling the motor.
The product has the features of small volume, light weight, low power consumption, high efficiency, safety, reliability etc. It also can be combined with contact head group, timer delay block, relay, thermal relay accessories, into motor starter etc, multiseries products. It conforms with IEC60947-4.

Specifications

Type		SC-03	SC-04	SC-05	SC-4-0	SC-4-1	SC-5-1	SC-1N
Max.volume of motor	200-240V	2.5	3.5	3.5	4.5	5.5	5.5	7.5
	380-440V	4	5.5	5.5	7.5	11	11	15
	500-550V	4	5.5	5.5	7.5	11	11	15
	600-660V	4	5.5	5.5	7.5	7.5	7.5	11
Operating current AC3 (A)	200-240V	11	13	13	18	22	22	27
	380-440V	9	12	12	16	22	22	30
	500-550V	7	9	9	13	17	17	24
	600-660V	5	7	7	9	9	9	15
Rated heating current (A)		20	20	20	25	32	32	50
Aux-contact layout	Standard	1NO	1NO	1NO 1NC	1NO	1NO	1NO 1NC	2NO 2NC
Aux-contact layout	Other	1NC	1NC	2NC or NC	1NC	1NC	2NO or 2NC	4NO 4NC
Electrical Life (x 10⁴)		200	200	200	500	200	200	200
MachanicalLife (x 10⁴)		1000	1000	1000	1000	1000	1000	1000
