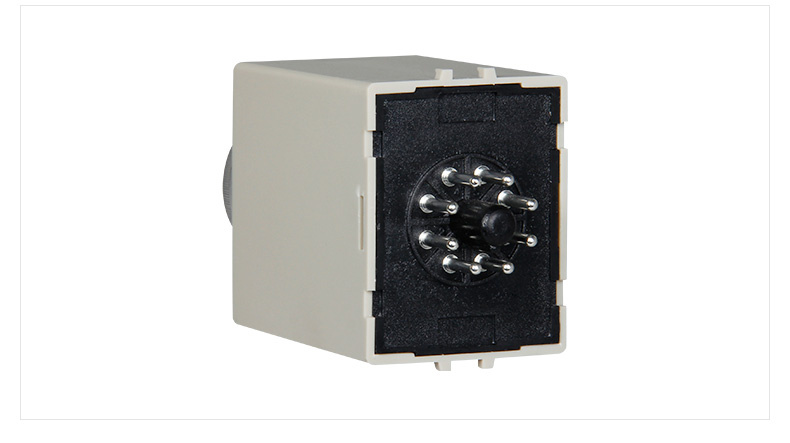

Professional Factory St3PC Timer Time Relay

Name: Professional Factory St3PC Timer Time Relay
Brand: all-electronics-online.com
SKU: 731400722
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST3PC

Product Description

Specifications

1.Rated up to 220V
2.acceptable for OEM
3.contact capacity 220V 3A
4.CE certification
5.IEC60947-4-1 stardand

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Specification

Classification			Timer	Multi Range Timer		Multi Range Timer
Specification Model			ST2P	ST3PA		H3BA-8/H3BA-11
Dimension			50H × 40W × 57.5D	55H × 40.5W × 57.5D		48H × 48W × 93.5D
Mounting & Socket		Surface(-N)	PF083A(E)	PF-083A(E)		PF113A(E)		PF083A PS-08
		Flush(-Y)	US-08 P3G-08	US-08 P3G-08		US-11		US-08 P3G-08
Full Timing Range			SEC: 1,3,6,10,12, 30,60 MIN: 3,6,10,12,30, 60 HR: 3,6,10,12,30	A: 0.05-0.5s/5s/30s/3min B: 0.1-10s/60s/6mim C: 0.5-5s/50s/5min/30min D: 1-10s/100s/100min/60min E: 5-60s/10s/60min/6h F: 0.25-2min/20min/2h/12h G: 0.5-4min/40min/4h/24h		0.1SEC~100HRS
Rated Voltage (V)			AC: 12,24,110,220(50/ 60Hz) DC: 12~24	AC: 24,48,110,220 (50/60Hz) DC: 24,48		24 to 240 DC/AC AC: 24,48,110,220 DC: 12,24,48
Indicator Operating			ON-UP Operating	ON-UP Operating		Time Operating Flicker
O/P Contact	Model		ST2P-E	ST3PA	ST3PC	H3BA	H3BA-8		H3BA-8H
	Time Limit 1C		5A		5A				5A
	Time Limit 2C		5A	5A		5A	5A
	Instantaneous 1C		5A		5A				5A
Life	Mechanical		5 × 10⁷ Times	5 × 10⁷ Times		10⁷ Times
	Electrical		10⁵ Times	10⁵ Times		10⁵ Times
Accuracy	Repeat Error		±2% max	±2% max		±2% max
	Setting Error		±5% max	±5% max		±5% max
	Voltage Error		±5% max	±5% max		±5% max
	Temp Error		±2% max	±2% max		±2% max
Reset Time			0.5 sec max	0.5 sec max		0.5 sec max
Consumed Power			3VA	3VA		100~240VAC:10VA 12VDC,24~240VDC:1.5W
Ambient temperature			-10^oC~+55^oC	-10^oC~+55^oC		-10^oC~+55^oC
Ambient Huminity			35~85% RH	35~85% RH		35~85% RH
Weight			100g	100g		100g
