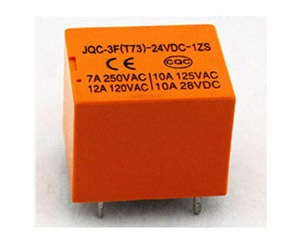

Professional Factory T73 7A Relay General Purpose Subminiature PCB Mounting Relays

Professional Factory T73 7A Relay General Purpose Subminiature PCB Mounting Relays
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: T73

Product Description

Features :

 Size (mm):20.5×27×33.4

Terminal layout:4Z
Contact capacity:3A 220VAC/3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC

Feature:

1. Extremely low costs,5PIN/10A/12VDC.
2. SPST-NO & SPDT configuration.
3. Subminiature,standard PCB layout.
4. Sealed IP67 & flux free types available.



Specification:



Contact Form:

1H:SPST-NO    1Z:SPDT

Contact Material:

NO: AgSn02  D: AgCdO

Construction:

S:Sealed IP67  NO:No Sealed IP67

Initial Contact Resistance:

100mΩ(1A 6VDC

Contact Rating(Res. Load):

7A 250VAC/10A 28VDC

Coil Voltage:

3VDC/5VDC/6VDC/9VDC/12VDC/18VDC/24VDC/48VDC

Max. Switching Voltage:

250VAC/30VDC

Max. Switching Current:

15A

Max. Switching Power:

300W/2500VA

Mechanical life:

1×107 times

Electrical life:

1×105 times

Initial Insulation Resistance:

1000mΩ,500VDC

Dielectric Strength:

Between coil contacts  750VAC 1min.

Between open contacts  500VAC 1min.

Operate Time (at nomi. Volt):

15ms

Release Time (at nomi. Volt):

10ms

Impact Resistance:

Stability  100m/s2 ; Intensity  1000m/s2

Vibration Resistance:

1mm 10~55Hz

Temperature:

-40º ~ +85º

Termination:

PCB and Plug type leading-out terminal













ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
