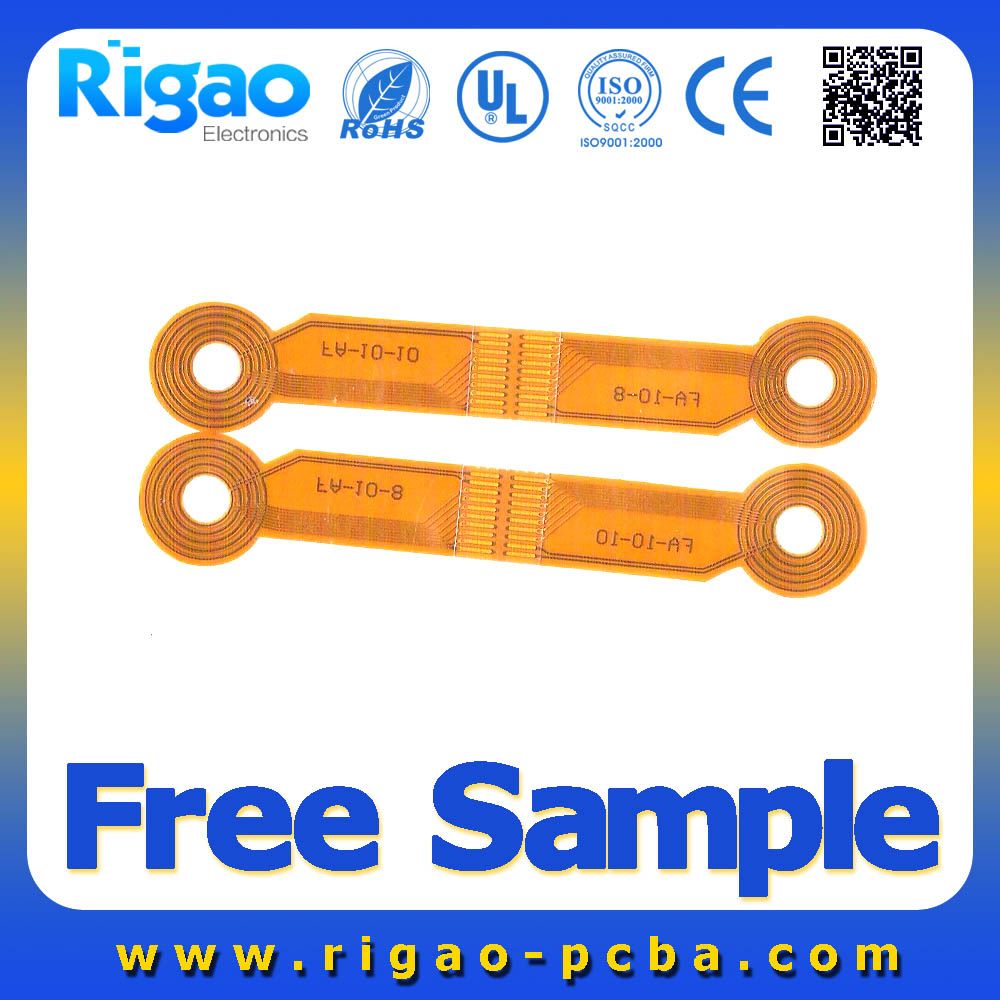

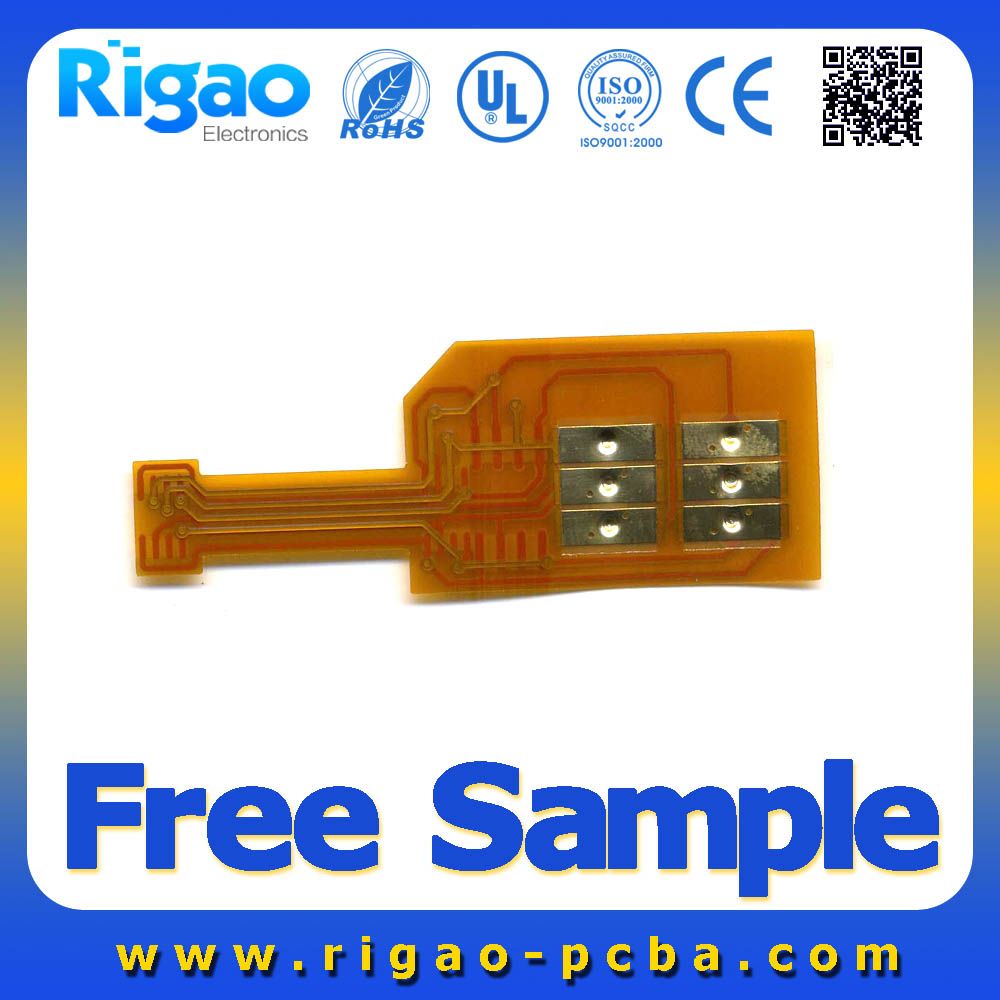

Professional FPC Soldering (Rigao FPC-15)

Name: Professional FPC Soldering (Rigao FPC-15)
Brand: all-electronics-online.com
SKU: 706584525
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rigao FPC-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	105*205mm
Solder Mask:	Yellow
Max Size:	300*1200mm
Silk Screen:	White or Black
Assembly:	FPC Board Assembly
Copper Thickness:	Rigid:0.5-12 Oz Flex:18-105um5
Samples Run:	Yes
Max Production:	Yes
Material:	Polyimide
Structure:	Multilayer FPC
Application:	Aviation and Aerospace
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Anisotropic Conductive Adhesive

Product Description

We are focus on manufacturing Printed Circuit Boards(PCB) and PCB Assembly(PCBA). OEM PCBA, SMT, DIP and final Assembly is our strengths.

Our aim: High quality, low cost & fast delivery for PCB and PCBA.
Service: One-stop-service for PCB and PCBA.
Product Name: High Quality Flexible PCB, Rigid Flex FPC (Flex-1)

Specifications:
1. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
2.4-5 days fast PCB and FPC delivery
3. Our Products meet the RoHS & WEEE lead-free requirement.
4. Minimum Order: 1 Pieces
5. PCB and FPC manufacturer

Production show:

FPC Features:
FPC Dimension: 92.5mm*36mm
FPC Base Material: 0.1mm Cu/25um ADH/25um PI+25um ADH/35um Cu/
20um ADH/ 35um Cu/ 2525um PI+25um ADH/
25um ADH/ 0.1mm Au
FPC Thickness: 1.6mm
FPC Line Width/Space: 0.15mm/0.15mm
FPC Surface Treatment: ENIG: Au: 0.03-0.09um, Ni: 2-6um
FPC Minimum via diameter: 0.2mm
The smallest hole: 0.35mm
Outline Tolerance: +/-0.2mm.

Flexible PCB
Item			Capabilities
Number of Layers			1 - 8 Layers
Material			Polyimide or Polyester
Min.Line Width			0.05mm
Min.Hole Size			0.15mm PTH
Min. PTH Hole Ring			0.45mm
Min. Gap between Cover Layer and Pad			0.1mm
Min. Gap between Trace and Outline			0.2mm
Trace Width Tolerance			±0.03mm W±30%
Outline Tolerance			±0.05mm L≤25mm
Hole Size Tolerance			±0.05mm
Stiffener and Outline Tolerance			±0.25mm
Surface Treatment			ENIG,Gold Plating,HAL,Plating Pb-Sn,Immersion Tin
Special Process			Blind/Buried Via Hole
Total Capacity			300,000 Sq.ft/month

Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.

As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.

Our main services include offering

Rigid PCB (up to 64 Layers)

Flexible PCB/FPC (1~6 Layers)

Rigid-Flex (3~18 Layers)

Aluminum-based PCB (1~6 Layers)

High Density Interconnection/HDI PCB

High frequency material PCB

DIP, COB, SMT assembly Services

Components Sourcing

We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.

Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.

Our Principle is simple, "Act by heart, Make the best. "

Our strength is distinct, "Years of experiences in PCB and PCBA field"

Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "

Our orientation is clear, "Focus on prototypes and low to medium volume business "

Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.

We are look forward to working with you!
