| Prod Model: |
6-EVF-110 |
| Certificate: |
SGS |
| Weight: |
33-34kg |
| Self-Discharge: |
Low |
| Warranty: |
12 Months |
| Product Name: |
6-Evf-110 |
| Color: |
Balck |
| Positive Plate: |
Lead |
| Case: |
ABS |
| Capacity: |
120ah |
| Delivery: |
25 Days After Receive Deposit |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description
Product Introduction:
Product advantage:1.There are all active compoment in lead paste, keep the long life for battery.
2.Battery is decorated with delicate colorful cartons, raise the products level.
3.Add activator benefit positive plate in electrolyte.Product Application:1.Electric Bikes, Electric Scooters, electric cars
2.Electric Motorcycles, Electric Tricycles, golf cars
3.Battery-powered wheelchairs, traction, mowers
4.Electric Tools, electric sweeper, electric cooler/heater, etc
5.Other electric devices requires DC power supply
6.Green energy like solar power, UPS and storage power
Product Parameter:| Battery Specification | Battery Characteristics |
| Nominal Capacity | 12V | Capacity | 20hr | 130AH |
| Nominal Capacity(2hr) | 110AH | 5hr | 120AH |
| Dimensions | L(mm) | 330 | 3hr | 115AH |
| W(mm) | 170 | 2hr | 110AH |
| H(mm) | 220 | Open-circuit Voltage | 13.1-13.5 |
| TH(mm) | 220 | Charging Voltage(V) | Float Charging | 13.5-13.8 |
| Weight(kgs) | 33-34 | Cycles V | 14.5-14.8 |
| Container Material | ABS | Max Discharging Current(A) | 150A(5S) |
| Internal Resistance(mΩ) | ≤20 | Max Charging Current(A) | 1.7A |
| Capacity at different temperature | 40ºC | 102% | Remain Capacity(2hr) | 1 Months | 90% |
| 25ºC | 100% | 3Months | 80% |
| 0ºC | 85% | 6 Months | 60% |

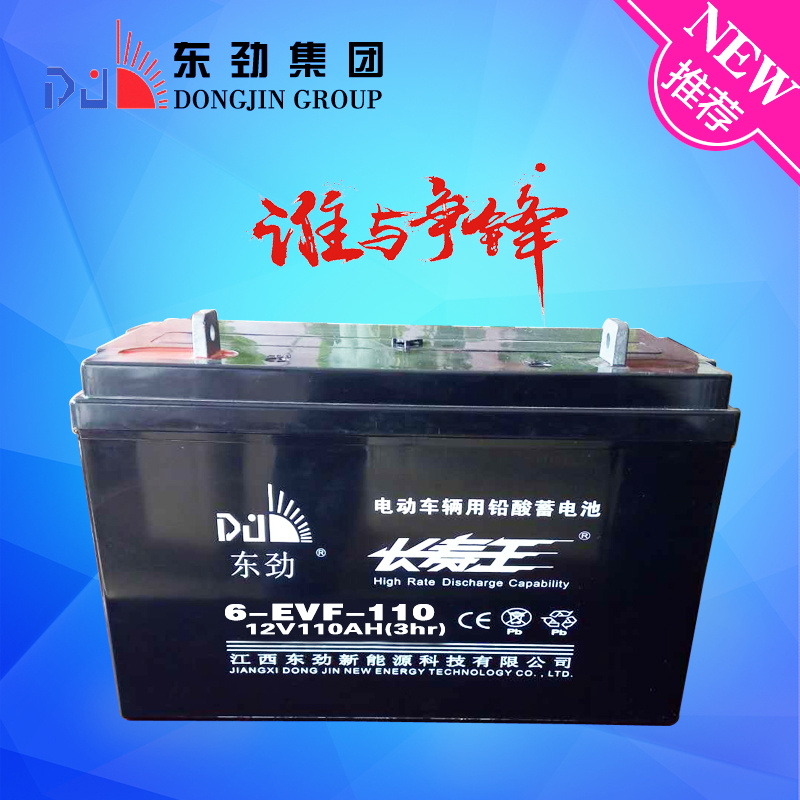

| Charging Curve | Battery Picture |
12V110(4pcs/set)
Phase I:The maximum charging current is 1.7A,voltage gradually increase to 14.4V.
Phase II:Charging voltage gradually increases from 14.4V to 14.7V,when charge current gradually decreases to around 0.40-0.50A,converted to float (trickle)charge.
Phase III:Constant charge Voltage13.75V. |
Relate Products:| Model | Voltage | Capacity | Dimension(mm) | Weight |
| 3-EVF-200 | 6 | 200 | 260 | 180 | 275 | 275 | 35 |
| 4-EVF-150 | 8 | 150 | 260 | 180 | 280 | 280 | 35 |
| 6-EVF-65 | 12 | 65 | 260 | 170 | 220 | 220 | 23 |
| 6-EVF-70 | 12 | 70 | 260 | 170 | 220 | 220 | 24 |
| 6-EVF-90 | 12 | 90 | 300 | 170 | 220 | 220 | 28 |
| 6-EVF-100 | 12 | 100 | 330 | 170 | 220 | 220 | 32.5 |
| 6-EVF-110 | 12 | 110 | 330 | 170 | 220 | 220 | 34 |
| 6-EVF-120 | 12 | 120 | 407 | 170 | 240 | 240 | 43 |
| 6-EVF-135 | 12 | 135 | 333 | 180 | 280 | 280 | 44 |
| 6-EVF-150 | 12 | 150 | 485 | 170 | 242 | 242 | 52 |
