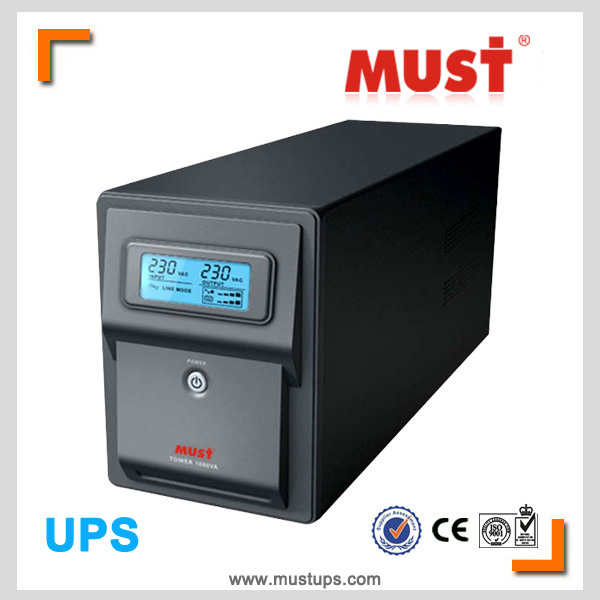

| Prod Model: |
EW2110series |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
145-275VAC |
| Output: |
220VAC/50Hz |
| AVR Function: |
Yes |
| Battery: |
12V/7ah Lead Acid Maintenance Free |
| Capacity: |
500-1500va |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
Product Description
Automatic buck and boost AVR function, wide input voltage 145-275VAC.

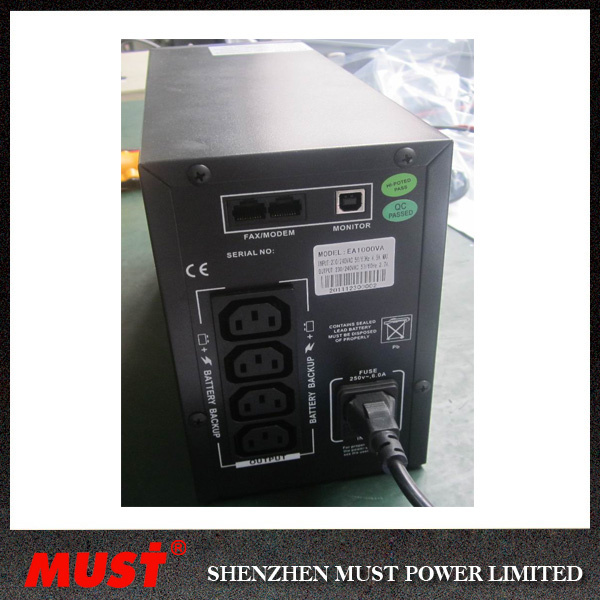

BYPASS outlet available, user can connect equipment of heavy load without damaging UPS.
Advanced automatic constant charging circuit, prolongs battery life.
Battery low voltage, overload & short circuit protection.
Lead-Acid, maintenance free battery inside, provides strong power to users.
Boost and buck AVR (Auto voltage regulation).
Fully digitized microprocessor controlled.
Energy saving function (UPS green mode).
50/60Hz frequency auto sensing and selection.
Cold start function (DC power on).
Lightning and surge protection.
Short circuit and overload protection.
Advanced battery management (ABM technology).
Tel/Modem internet surge suppression.
Automatically charging when UPS off.
History record of power failure events.
Back up, on-line, battery status, power status display by software.
Schedule shutdown & reboot.
Technical of PWM adjustment and advanced MOSFET power components, ensures stable performance
|
MODEL |
EW2000 1200 |
EW2000 1500 |
EW2000 1500 |
|
CAPACITY |
1200 VA /720W |
1500 VA / 900W |
1500 VA / 900W |
|
INPUT |
|
Phase |
Single |
|
Voltage |
110/120 VAC or 220/230/240 VAC |
|
Voltage Range |
81-145 VAC / 162-290 VAC |
|
Frequency Range |
60/50 Hz (auto sensing) |
|
OUTPUT |
|
Phase |
Single |
|
Voltage(Btt. Mode) |
110/120VAC or 220/230/240VAC |
|
Voltage Regulation(Batt. Mode) |
±10% |
|
Frequency Range (Batt. Mode) |
60 Hz or 50 Hz ±1 Hz |
|
Transfer Time |
Typical 2-6 ms, 10ms max. |
|
Waveform (Batt. Mode) |
Modified SineWave |
|
BATTERY |
|
Battery Type & Number |
12 V/7 AH x 2 |
12 V/9 AH x 2 |
12 V/9 AH x 2 |
|
Typical Recharge Time |
8 hours recover to 90% capacity |
|
Backup Time(1 PC load with 15 monitor) |
30-40 minutes |
40-50 minutes |
40-50 minutes |
|
INDICATORS |
|
AC Mode |
The 1st green LED lighting |
|
Battery Mode |
The 2nd yellow LED flashing |
|
PROTECTION |
|
Full Protection |
Overload, discharge, Short-circuit and overcharge protection |
|
TRANSFER TIME |
|
Typical |
4-8ms |
|
ALARM |
|
Battery Mode |
Sounding every 10 seconds |
|
Low Battery |
Sounding every second |
|
Overload |
Sounding every 0.5 second |
|
Battery Replacement Alarm |
Sounding every 2 seconds |
|
Fault |
Continuously sounding |
|
PHYSICAL |
|
Dimension, D X W X H (mm) |
340 x 122 x 188 |
|
Net Weight (kgs) |
9.4 |
9.6 |
9.6 |
|
OPERATING ENVIRONMENT |
|
Humidity |
0-90 % RH @ 0- 40°C (non-condensing) |
|
Noise Level |
Less than 45dB |
|
MANAGEMENT |
|
Optional USB/RS-232 Port |
Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
