Professional Made High Power Fan Air-Con 12V Relay

Name: Professional Made High Power Fan Air-Con 12V Relay
Brand: all-electronics-online.com
SKU: 824009715
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 2-4/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PR382
Color:	Black
Other Services:	ODM OEM
Delivery Time:	30 Days After Deposit
Application:	Refrigeration, Air Conditioning and Heating
Life Time(Mechanical):	1 Million Times

Product Description

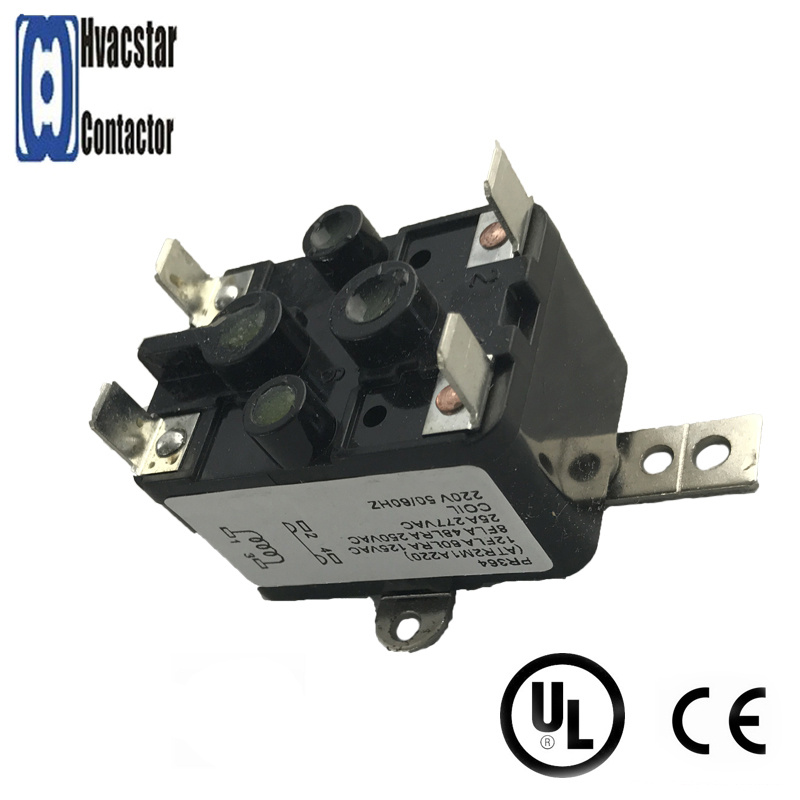

High Power Fan Relay:
Fan Relays, mainly Is Suitable For 50Hz Or 60Hz, The Nominal Current Up To The 14A at 120v and 8A at 277V.
It is used on heating and air conditioning equipment to provide switching of heavier loads with a compact size relay.

Feature:
1. 25A switching capability
2. 2kV dielectric strength(between coil and contacts)
3. Panel mount types available
4. Environmental friendly product(RoHS COMPLIANT)
5. Outline Dimensions: 47.0×32.0×28.5mm

Applications:
Air conditioners
Heat pumps
Water heaters
Other locations where a local disconnect is required

Specifications:

Amps Resistive	25
Coil Voltage	24
FLA/LRA at 125 Volts	14/84
FLA/LRA at 250 Volts	8/48
Switch Type	SPST-NO

Replaces:

RBM	90-360
Mars	90360

Contact Data

Contact arrangement:			1A, 1B, 1C, 1A+1B
Contact resistance:			200m max.(at 1A 24VDC)
Contact Material			AgCdO
Contact rating (Res. Load)			18A 227VAC
Max. Switching Voltage:			277VAC
Max. Switching Current:			18A
Max. Switching Power:			4986VA
Mechanical endurance:			1×106OPS
Electrical endurance:			5×104OPS(25A 227VAC, Resistive load, at 65 ºC 1s on 9s off)
			3×104OPS(3A 250VAC, General use, at 65 ºC 1s on 9s off)

Coil Data at 23°C

Nominal Voltage VDC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC	Coil Resistance
Nominal Voltage VDC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC
6	4.50	0.6	6.6	17.5×(1±10%)
9	6.75	0.9	9.9	40×(1±10%)
12	9.00	1.2	13.2	70×(1±10%)
24	18.00	2.4	26.4	280×(1±10%)
48	36.00	4.8	52.8	1120×(1±10%)
120	90.00	12	132	7000×(1±10%)

Nominal Voltage VAC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC	Coil Resistance
Nominal Voltage VAC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC
6	5.1	1.2	6.6	4.8×(1±10%)
12	10.2	2.4	13.2	19×(1±10%)
24	20.4	4.8	26.4	90×(1±10%)
48	40.6	9.6	52.8	300×(1±10%)
120	102.0	24	132	2000×(1±10%)
240	204.0	48	264	7200×(1±10%)
277	235.0	55.4	304.7	11000×(1±10%)

Note: Maximum voltage refers to the maximum voltage which relay coil could endure in a short preiod of time
