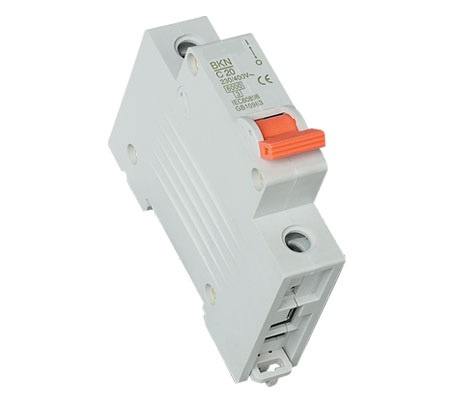

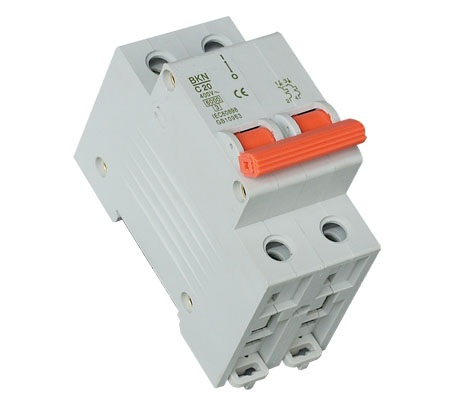

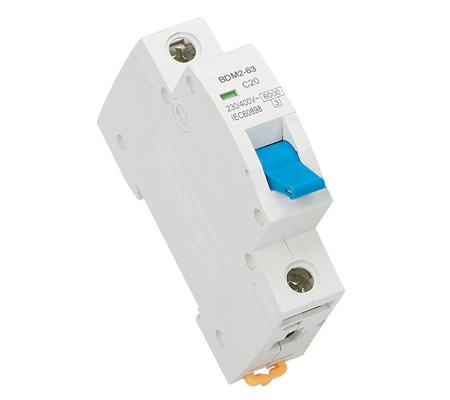

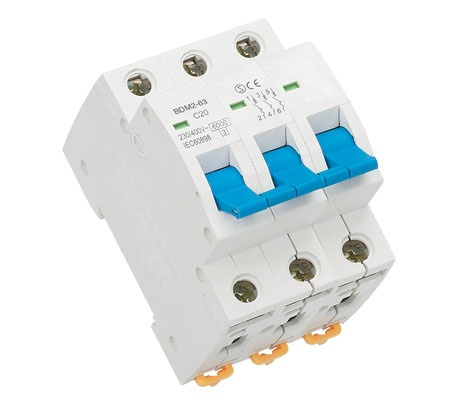

Professional Manufactures C20 MCB Circuit Breaker/ MCB

Professional Manufactures C20 MCB Circuit Breaker/ MCB
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: C20
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Vacuum
Installation: Fixed
Structure: MCB
Poles Number: 2
Certification: CCC

Product Description

Technical Data
Pole No:1,1P+N,2,3,3P+N,4
Rated voltage:AC 230/400V
Rated current(A):1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve:B,C,D
Ultimate short-circuit capacity(lcu):4.5KA
Rated frequency:50/60Hz
Energy limiting class:3
Rated impulse withstand voltage:6.2KV
Electro-mechanical endurance:4000
Connection terminal:
Screw terminal
Pillar terminal with clamp
Connection capacity:Rigid conductor up to 25mm2
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height:19mm







ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
