Product Description
Product DetailProfessional Online Edition Handheld PCBA Board Manufacturer1.Production IntroduceThis product is based on the Panasonic RETX protocol of an Ethernet control system, the use of TI's dedicated motion control chip, high-speed closed-loop control, with Panasonic network drive in the case of the entire device can make the servo performance to the extreme.

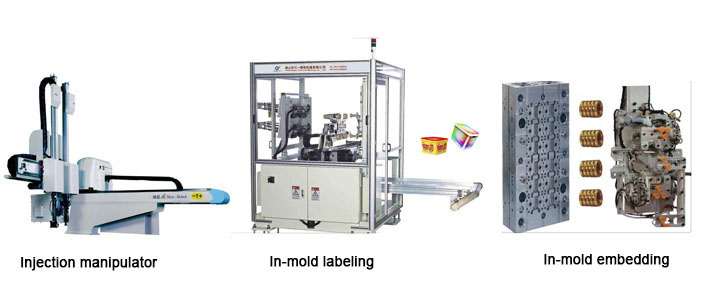

2.Appliance Range:A.Injection manipulator B.In-mold labeling C.In-mold embedding
3.System Featuresa. Strong positioning and high-speed processing capabilitiesEthernet (RTEX) control, real-time network speed rate of up to 100MBPS, the fastest update cycle 0.083ms.
Network single ring can support up to 32 axes, the node spacing of up to 100 meters.
Built - in high - speed response time of 0.01S, cycle of the maximum time 2.5S. In-mold time can reach 0.48S
b.Dual-core processing, computing speed and performance significantly improved
Using DSP + ARM dual-core processor, multi-task parallel processing.
The program execution speed is 0.065us
Can be unlimited online speed, 8-axis at the same time to achieve high-speed parallel operation
c.Reliable user rights security
Support 6 user password, user rights protection
Users can upgrade their own USB boot screen
The more flexible configurable reservation consists of 8 sets of inputs and 8 sets of outputs, which can be designed and designed
Programmatic teaching comes with fault tolerance
d.Simple wiring mode
The network into a set to automatically prevent wiring errors
Support hand wheel accurate shift, can be accurate to 0.01mm / times
The origin direction can be set to die, outside the mold
4.Teachnical Data: | Item | Index |
| System | Screen | 8-inch TFT true color LCD screen, resolution 800 * 600, screen brightness 250cd / m2 |
| Hardware | HMI + main control board + expansion board, using RS422 communication protocol |
| Processor | CPU Cortex-A8 highest frequency 1GHZ + 32-bit DSP |
| Servo Control | Support linkage | Support |
| Motor Configuration | Relative encoder, easy maintenance, motor universal |
| Manual Fine Tuning | Support |
| Parameter modification | A key to automatically adjust, but also through the touch screen directly modified |
| Motor configuration | RTEX communication protocol, Panasonic servo |
| Enter 56 groups | Input Method | Contact input or NPN input (leakage type, optocoupler isolation), impedance 4.7K |
| Input Current | DC24V 5MA |
| Output 40 groups | Output Method | NPN open collector output, current 0.5A, with short circuit overload protection |
| Relay output DC30V 10A, 250V / 5A |
| Overcurrent protection | Transistor 0.5A self-healing protection device |
| Number of programs | Up to 100 programs |
| System power consumption | DC24V -0.32A P=7.6W |
| Operating temperature | -10 ° C - + 65 ° C Temperature 90% |
| Upgrade method | USB Plug and Play USB |
| Language mode | Support in English and Chinese switch |
| Intelligent alarm | Sub-two intelligent alarm tips, user-friendly operation |
5.Detail Part
