Professional Production Supply 3TF (cjx1-b) Series High Quality AC Contactor Withe Silver Contactor
| Price: |
US $ 1.55-1.7/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
3TF (cjx1-b) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
LC2-D115 (Cjx2-N) |
| Rated Operation Current: |
9A to 620A |
| Rated Operation Voltage: |
Rated Operation Current |
| Max. Power Of 3 Phase: |
450W |
| Electrical Life: |
200000times |
| Operation Frequency: |
1.5-7.5kw |
| Place Of Origin: |
Zhejiang China |
Product Description

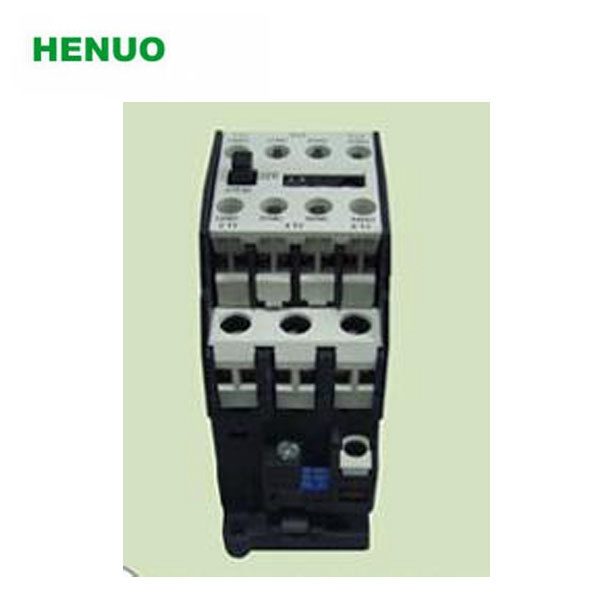

3TF series AC Contactor
Application:
The contctor is suitable for using in the circuis the rated voltage up to 660V AC 50/60HZ., rated current 630A, for making&breaking, and for frequently atarting and controlling the motor. After being combined with the mechanical interlocking device, it becomes 3TD Series convertible contactor for controlling, starting, breaking and reversing of the motor. The products comply with IEC60974-4.
Specification:
Type | Rated thermal current(A) | Rated operating current at 380V(A) | Rated operating current at 660V(A) | The power of controlled motor(KW) | Type of auxiliary contact |
| 380(V) | 660(V) |
| 3TB40 (CJX1-B9) | 22 | 9 | 7.2 | 4 | 5.5 | 1NO 1NC 1NO+1NC 2NO+2NC |
| 3TB41 (CJX1-B12) | 22 | 12 | 9.5 | 5.5 | 7.5 |
| 3TB42 (CJX1-B16) | 35 | 16 | 13.5 | 7.5 | 11 |
| 3TB43 (CJX1-B22) | 35 | 22 | 13.5 | 11 | 11 |
| 3TB44 (CJX1-B32) | 55 | 32 | 18 | 15 | 15 | 2NO+2NC |
WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
