Professional Supplier LED Lighted Switch DIP Tact Switch with Illuminated

Name: Professional Supplier LED Lighted Switch DIP Tact Switch with Illuminated
Brand: all-electronics-online.com
SKU: 799683555
Availability: InStock
Rating: 4.9 (92 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-DD02
Type:	Standard
Installation Form:	Insert Welding
Package:	SMT Chip Package
Shape:	Square
Shrapnel:	Gold-Plated
Certification:	RoHS
Structure:	Four Contact
Application:	Electronic and Electrical Equipment

Product Description

Led Lighted Switch DIP Tact Switch with Illuminated
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rated Current Capacity	DC 36V 0.5A
Contact Resistance	50mΩ Max
Insulation Resistance	100mΩ Min
Withstand Voltage	AC 250V
Press Force	160gf, 250gf
Life	100,000 cycles Min
Travel	0.25+-0.05mm
Temperature	-25'C-85'C

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

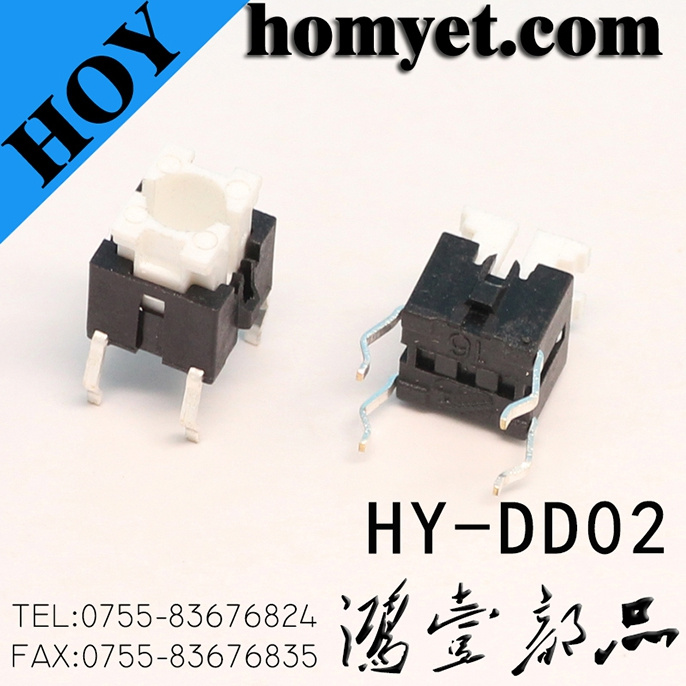

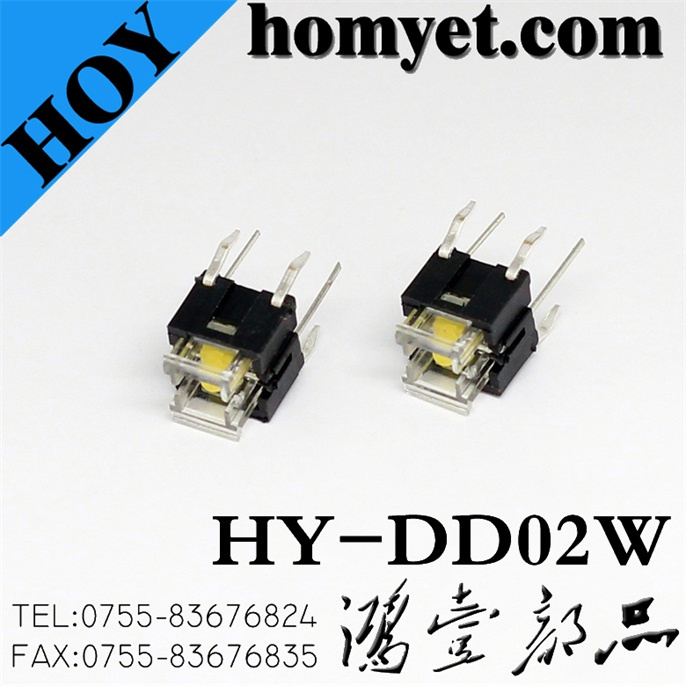

Product Datasheet&Picture

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

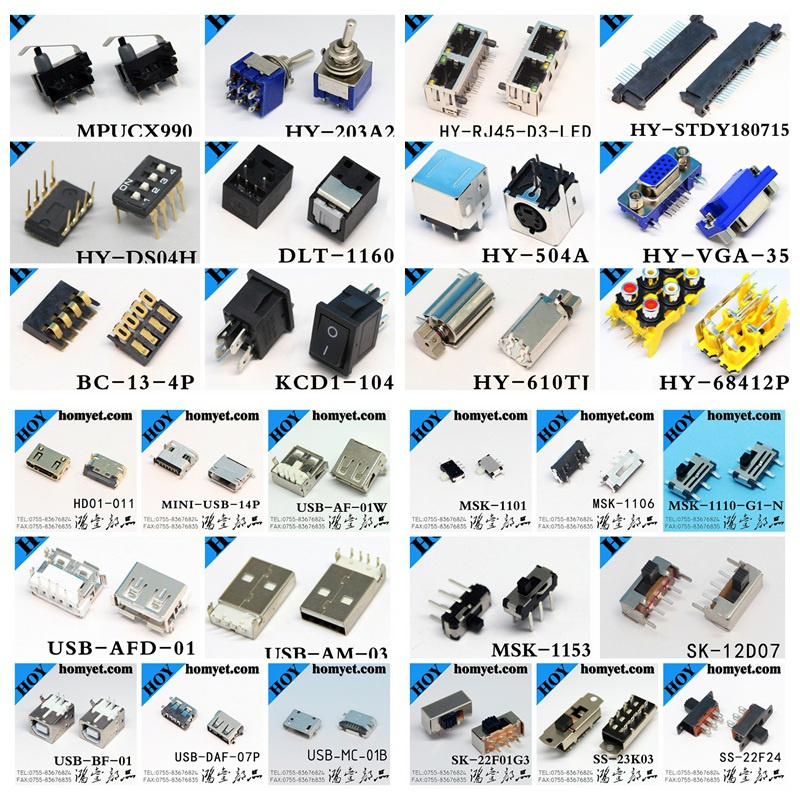

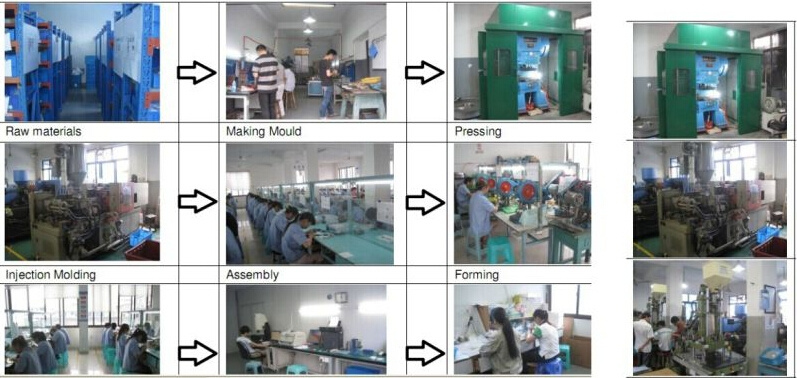

Company&Products Show:

Contact Information:
Albert Chen/Overseas Sales Dept
Mob: +86- 13924602911
Shenzhen Office:
Tel:  +86-755-83676824/29768399    Fax: +86-755 83676835/27888655
Add:  302-306, Block E, Huachuangda Industrial Park, Bao'an District No.42, Shenzhen City, Guangdong Provice, China
Hong Kong Office:
Tel: +852-23892981      Fax: +852-35902333
Add: 704, 7/F,Bright Way Tower, No.33 Mong Kok road, Kowloon, Hong Kong
Web: www.homyet.com

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.
