Professional Supplier of Matel Laser Cutting Machine From China

Name: Professional Supplier of Matel Laser Cutting Machine From China
Brand: all-electronics-online.com
SKU: 820020785
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 10000-100000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS-LFD3015
Power:	1000 Watt
Drive:	Double Drive
Control:	CNC
Z Axle Stroke:	150mm
Max. Cutting Speed:	40m/Min
Max. Positioning Speed:	80m/Min
Laser Wavelength:	1070nm
Cooling:	Water Cooling

Product Description

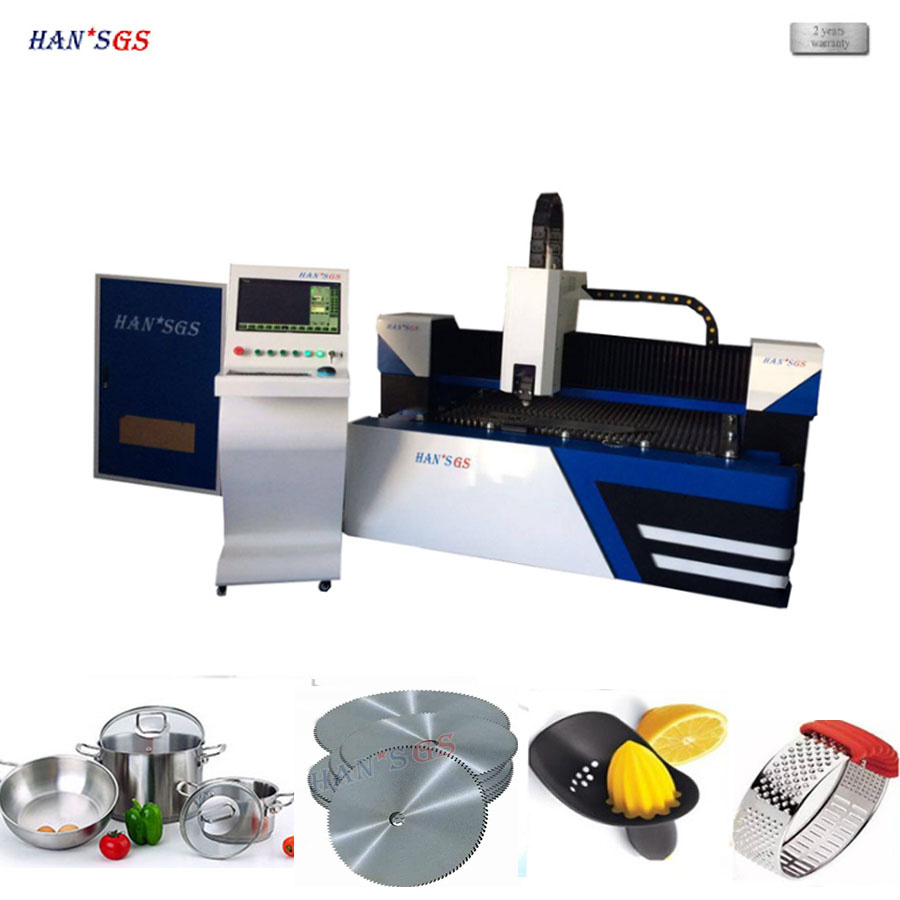

Professional Supplier of Matel Laser Cutting Machine From China

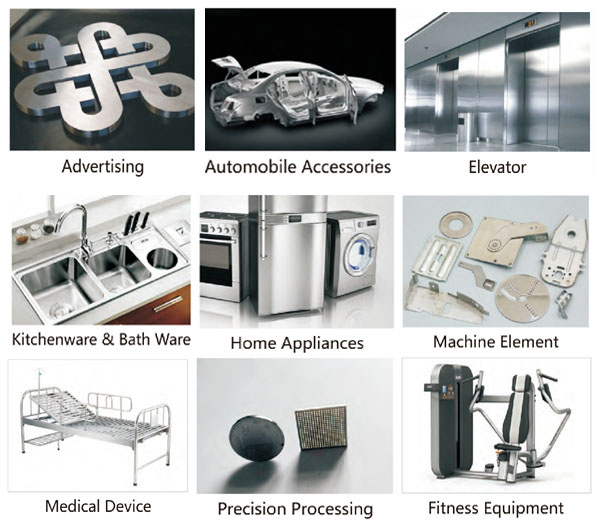

Applicable industry:

Fiber laser cutting machine is widely used in hardware,precise machinery,automobile components,glasses clocks and watches, precisioncutting,medical equipment,instrument and other metal related industry.

Products

Parameters of laser cutting machine

Model	GS-LFD3015(Dual Drive)
Output power of laser source	2000W
Cutting area (L*W)	3000mm × 1500mm
Z axle stroke	150 mm
Max. cutting speed	40m/min
Max. positioning speed	80m/min
Platform size/Max height of feeding material	4250x2500mm/more than 120mm
Cooling	water cooling
Laser wavelength	1070nm
Cutting gap	0.1-0.3mm
Positioning accuracy of X, Y and Z axles	±0.03 mm
Repeated positioning accuracy of X, Y and Z axles	±0.02 mm
Thickness of cutting material (according to material)	0.2-12mm
Drive model	Imported servo motor
Voltage	380V,50/60Hz
Temperature	5ºC-45ºC
Continuous working time	24 Hours
Wok platform max bearing	600Kgs
Complete System Coverage	4500x2700mm
Total protection level of power supply	IP54

Standard Configuration of GS-LFDS3015 Laser Cutter
1.Laser Source:500W~1000W Fiber laser source
2.Machine tool:(1)Cutting bed & accessories;(2)Gear&rack
3.CNC & software:(1)CNC system;(2)Operation software
4.Standard accessories:(1)working table;(2)Water chilling unit

Automatic focus follow up system

Sampling rate	1000 times/sec
max following speed	500mm/sec
Statics inspection accuracy	0.001mm

Support network communication and upgrade with flash disk

Exhibition

Cutting Sample

Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.

Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.

Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
