| Prod Model: |
FP-10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channels: |
4 Channels |
| Amplifier Type: |
Swithcing Power Amplifier |
| Class: |
Td Class Ampifier |
| Power: |
4 X 1350W @ 8ohm |
| Size: |
485X378X89mm |
| Type: |
Professional Amplifier |
| Usage: |
Professional |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Sound Channel: |
4 Channels |
| Output Number: |
4 Output |
| Voltage: |
220V and 110 Available |
Product Description
NOVA make pro audio, professional amplifier, professional switching power amplifier, professional sepaker, line array to customer. NOVA is a professional loudspeaker manufacture in China which could offer OEM/ODM service to our customers.
The global power supply works anywhere in the world and offers PFC ( Power Factor Correction).
It is a switching power supply easily deals with a very high variation in the AC mains voltage: it can drop by up to 20% below its nominal level (e.g. to 180VAC instead of 230VAC ) without any loss of the amplifier's rated output power. Aregulated power supply also presents some other sonic advantages, such as better cone control and the same fast response as a linear power supply.
Features:
1) High power - FP amplifier delivers unprecedented output power of total 10,000W(4X2500W@2ohms) in only 2U frame
2) Good sound quality - FP amplifier not only maintains Class A/B favored sound quality and reliability but also with Class D efficiency.
3) Regulated Switch Mode Power Supply (RSMPS) - Xtd2300H2 is able to remain constant output power even with wide fluctuation of external mains voltage

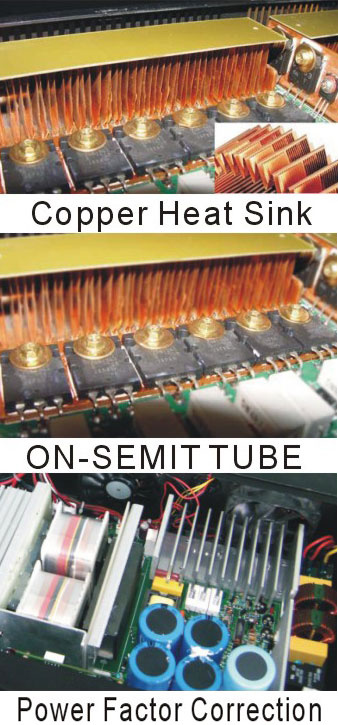

4) Efficient cooling system - Unique cooper cooling system allows more heat dissipation at extended peak output.
5) XLR signal input and link connectors.
6) Comprehensive protection - Equips with protection circuitry for excessive output current, DC, over heat, very high frequency (VHF), short circuit, open load, main fuse protection and soft start
| Model Number | FP-10000Q | FP-6000Q | FP14000 | FP-9000 |
| 8Ω Stereo power(RMS) | 4 x 1350 W | 4 x 700 W | 2 x 1500 W | 2 x 1300 W |
| 4Ω Stereo power (RMS) | 4 x 2100 W | 4 x 1000 W | 2 x2200 W | 2 x 2150 W |
| 2Ω Stereo power (RMS) | 4 x 2500 W | 4 x 1550 W | 2 x 3000 W | 2 x 3000 W |
| 8Ω Bridged power | 2 x 4200W | 2 x 2600W | 4000W | 4200W |
| 4Ω Bridged power | 2 x 5000 W | 2 x 3100 W | 6500 W | 7000 W |
| THD at 1kHz and 1dB below clipping | 0.10% |
| FREQUENTY RESPONSE | 20Hz-25KHz ±0.5dB |
| Input connectors | Combo XLR type, 3pin |
| Link connectors | XLR type, 3pin male |
| Input Impedance | 20KΩ Balanced / 10KΩUnbalanced |
| Output connectors | speaker connectors |
| Dimensions (H x W x D) | 485x 378 x 89 mm | 88 x 483 x 440 mm |
| Net Weight (kg) | 13 | 14 | 11 | 11 |
| Specification |
| MODLE | K-1100 | K-1500 | K-1800 |
| 8Ω Stereo power(RMS) | 2 x 1100 W | 2 x 1500 W | 2 x 1800 W |
| 4Ω Stereo power (RMS) | 2 x 1700 W | 2 x2200 W | 2 x 3000 W |
| 2Ω Stereo power (RMS) | 2 x 2500 W | 2 x 3000 W | 2 x4800 W |
| 8Ω Bridged power | 3000w | 4000w | 6000w |
| 4Ω Bridged power | 5000 W | 6500 W | 9500 W |
| THD at 1kHz and 1dB below clipping | 0.10% |
| Slew rate | 20V/μs | 30V/μs | 40V/μs |
| Damping Factor | 1000 | 1000 | 1000 |
| FREQUENTY RESPONSE | 20Hz-25KHz ±0.5dB |
| Input connectors | Combo XLR type, 3pin |
| Link connectors | XLR type, 3pin male |
| Input Impedance | 20KΩ Balanced / 10KΩUnbalanced |
| Output connectors | speaker connectors |
| Operation Indication | Blue |
| Power Requirement | 100-120V~50-60Hz |
| Gain Selectable(dB) | 41dB 32dB 26dB |
| Load Matching | 0, -2, -4, -5dB |
| Dimensions (H x W x D) | 88 x 483 x 440 mm |
| Net Weight (kg) | 11 | 11 | 12.5 |
| Gross Weight (kg) | 11 | 11 | 12.5 |
Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.
With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.
OEM/ODM also available.
Nova will offer what you want.
Please join in NOVA family!
