Professional UL Verified PCB ODM with High Quality

Professional UL Verified PCB ODM with High Quality
Price: US $ 0.27-0.45/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Structure: Multilayer Rigid PCB
Material: Polyester Glass Fiber Mat Laminate
Production Process: Subtractive Process

Product Description

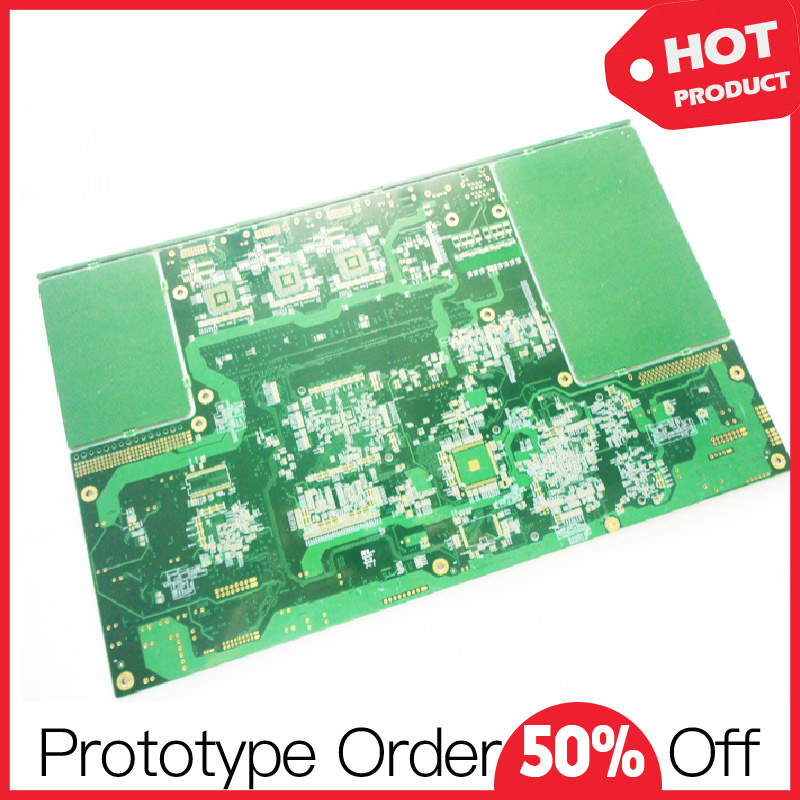

                   Professional UL Verified PCB ODM with High Quality

Products Description

*Layers: 1-22
*Base material: FR-4 CEM-1
*Thickness: 0.2-5.0mm
*Solder mask: Green, black, red, yellow, white
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold, OSP. Lead free HASL.
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours
4 layer- 8 layer pcb delivery time: 48-96 hours

PCB assembly Equipment:
1. High speed and precision chip placer or multi-function SMD mounter
2. Wave soldering machine
3. Vacuum machine
4. High temperature box
5. Auto-solder paste printer
6. Hot- and mixed-air reflow

UL Verified PCB ODM Manufacturing Capabilities
Total Pad SizeStandardAdvanced
Capture PadDrill + 0.008Drill + 0.006
Landing PadDrill + 0.008Drill + 0.006
BC Mechanical Drill (Type III)0.0080.006
Laser Drill Size0.004-0.0100.0025
Material Thickness0.00350.0025
Stacked ViaYesYes
Type I Capabilities single & Double DeepYesYes
Type II Capabilities Buried Vias with MicroviasYesYes
Type III CapabilitiesYesYes
Copper Filled MicroviaYesYes
Smallest Copper Filled Microvia0.0040.0025
Copper Filled Microvia Aspect Ratio0.75:11:01
Smallest Laser Microvia Hole Size0.0040.0025
Laser Via Aspect Ratio (Depth:Diameter)0.75:1c

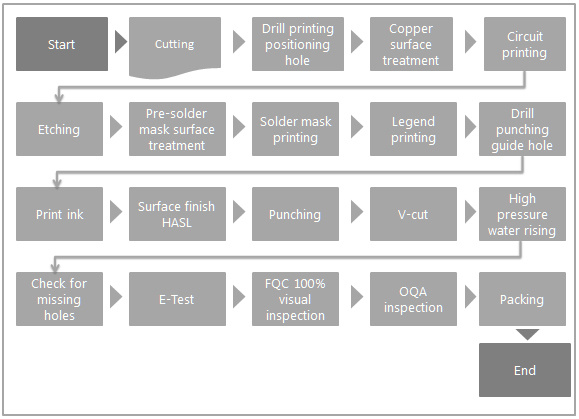

The special manufacturing process is as follows


About Us
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

Our customers are widely distributed in mainland China, Taiwan, the United States, Japan, Singapore, Korea, Russia, Germany, Switzerland and other parts of the word.


If  you are searching a reliable ODM supplier, you can contact us !!

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
