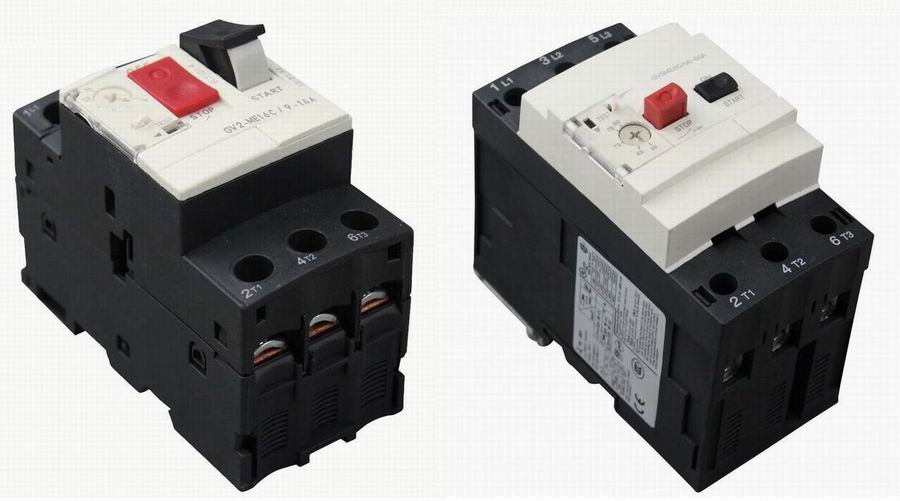

Progessional Factory Fw-Gv1-M Gv2 Gv3 MPCB Motor Protection Circuit Breaker

Name: Progessional Factory Fw-Gv1-M Gv2 Gv3 MPCB Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 730747432
Availability: InStock
Rating: 4.4 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV1-M
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Poles Number:	1
Certification:	CCC

Product Description

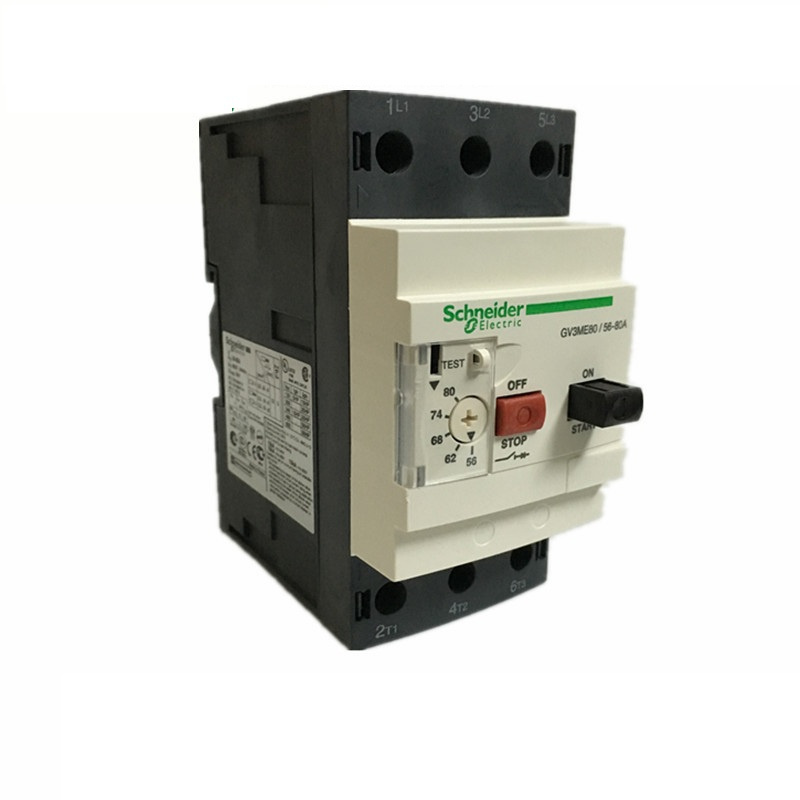

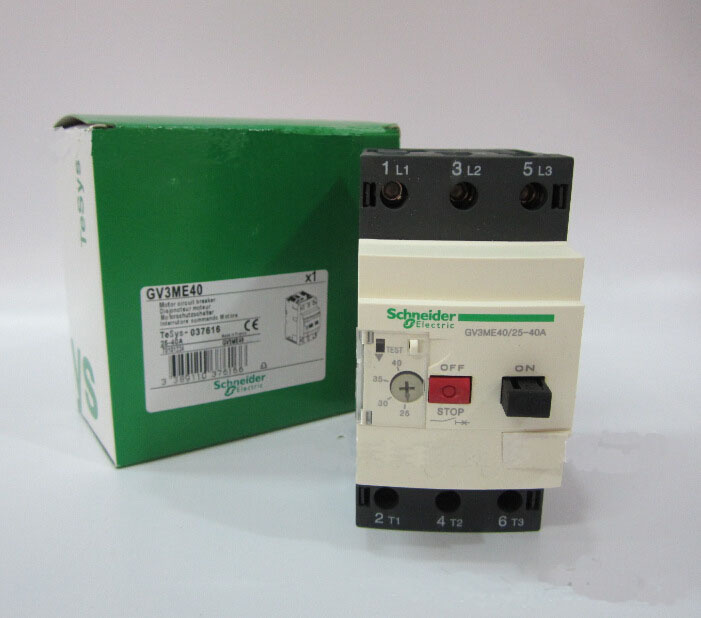

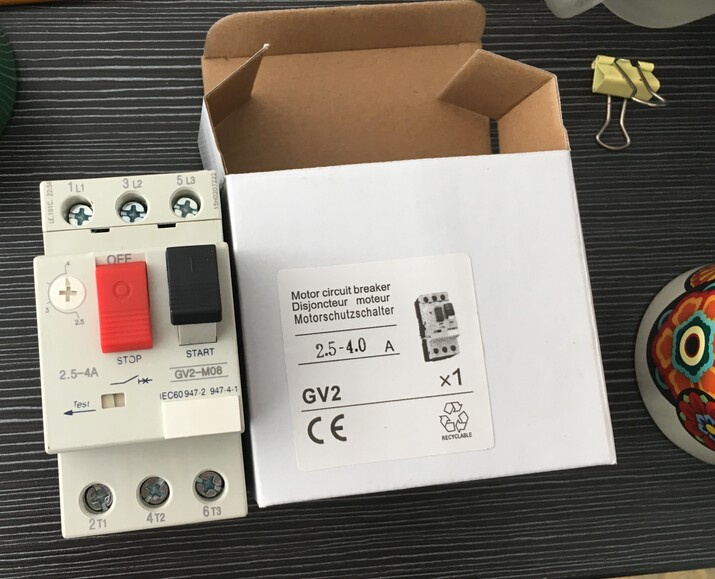

HOT SALE GV2 ME GV3 ME 3p 0.1A~80A Adjustable Motor Protection Switch Motor Manual Starter Circuit Breaker MPCB

Application

GV2/GV3 series motor protection circuit breaker (Motor Manual Starter) are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

Specification

Product name	HOT SALE GV2 ME GV3 ME 3p 0.1A~80A Adjustable Motor Protection Switch Motor Manual Starter Circuit Breaker MPCB
Type	Rated standard power of 3-phase motors 50/60HZ in category AC-3						Setting range(A)
	220V	380V	415V	440V	500V	660V
	KW	KW	KW	KW	KW	KW
GV2-M01	--	--	--	--	--	--	0.1-0.16
GV2-M02	--	--	--	--	--	--	0.16-0.25
GV2-M03	--	--	--	--	--	--	0.25-0.4
GV2-M04	--	--	--	--	--	0.37	0.4-0.63
GV2-M05	--	--	--	0.37	0.37	0.55	0.63-1.0
GV2-M06	--	0.37	--	0.55	0.75	1.1	1.0-1.6
GV2-M07	0.37	0.75	0.75	1.1	1.1	1.5	1.6-2.5
GV2-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4.0
GV2-M10	1.1	2.2	2.2	3	3.7	4	4-6.3
GV2-M14	2.2	4	4	4	5.5	7.5	6.0-10.0
GV2-M16	3	5.5	5.5	7.5	7.5	9	9.0-14.0
GV2-M20	4	7.5	9	9	9	11	13.0-18.0
GV2-M21	5.5	11	11	11	11	15	17.0-23.0
GV2-M22	5.5	11	11	11	15	18.5	20.0-25.0
GV2-M32	7.5	15	15	15	18.5	26	24.0-32.0
GV3-M06	--	0.37	--	0.55	0.75	1.1	1.0-1.6
GV3-M07	0.37	0.75	1.1	1.1	1.1	1.5	1.6-2.5
GV3-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4.0
GV3-M10	1.1	2.2	2.2	3	3.7	4	4.0-6.0
GV3-M14	2.2	4	4	4	5.5	7.5	6.0-10.0
GV3-M20	4	7.5	7.5	7.5	10	11	10.0-16.0
GV3-M25	5.5	11	11	11	15	18.5	16.0-25.0
GV3-M40	11	18.5	22	22	25	33	25.0-40.0
GV3-M63	15	30	33	33	40	55	40.0-63.0
GV3-M80	22	40	45	45	55	63	56.0-80.0
