| Prod Model: |
CR2025 |
| Color: |
Silver |
| Weight: |
2.5g |
| Working Temperature: |
-21ºC to 60ºC |
| Storage Temperature: |
10ºC to 25ºC |
| Test Passed: |
TUV, SGS, Pony |
| Validity: |
5 Years |
| Cross Reference: |
Dl2025, ECR2025 |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Material: |
Metal |
| Battery Type: |
Button Battery |
Product Description

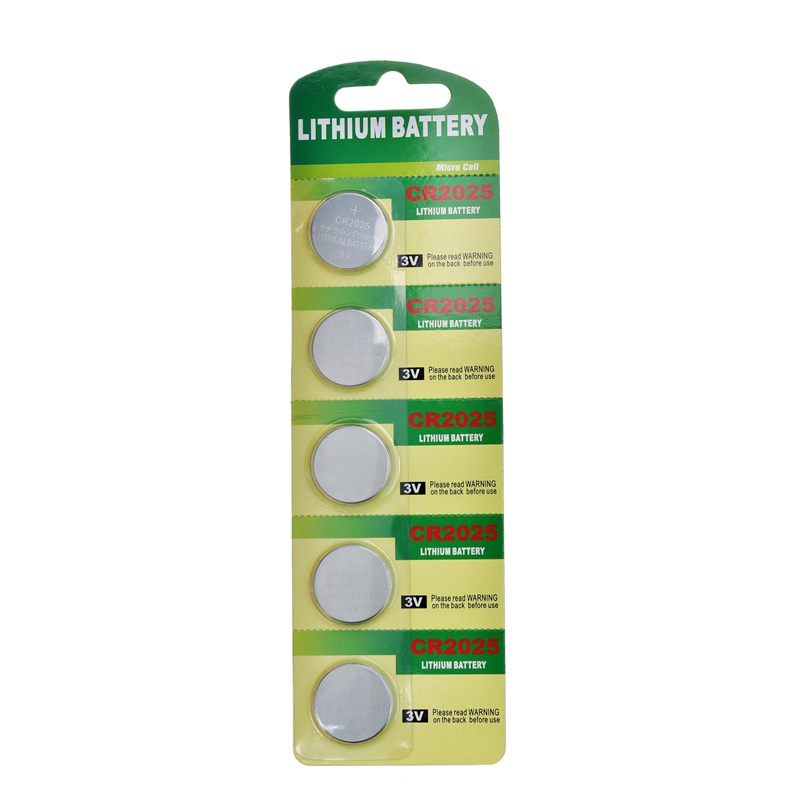

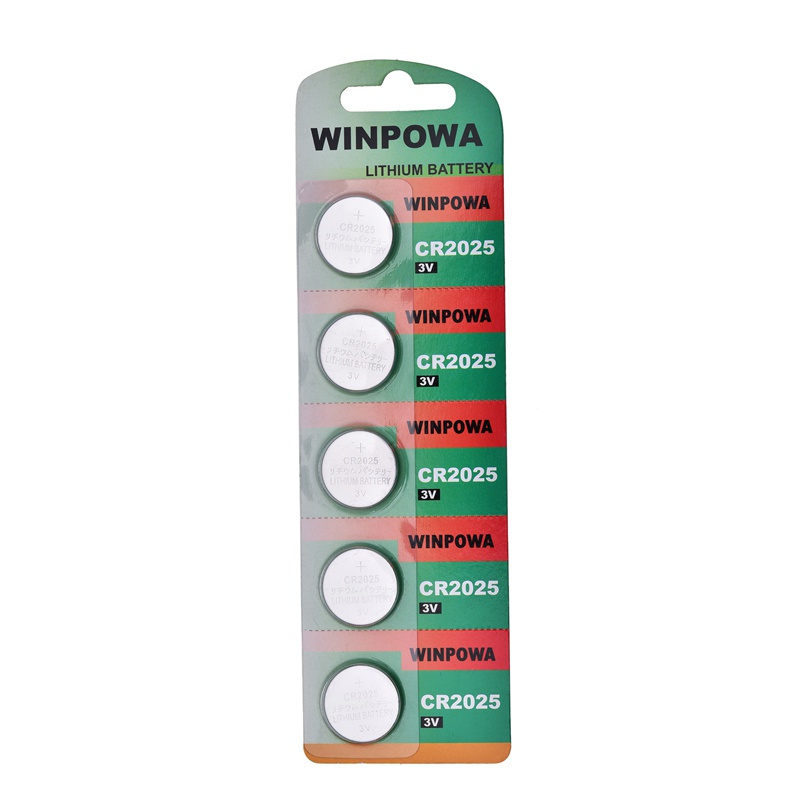

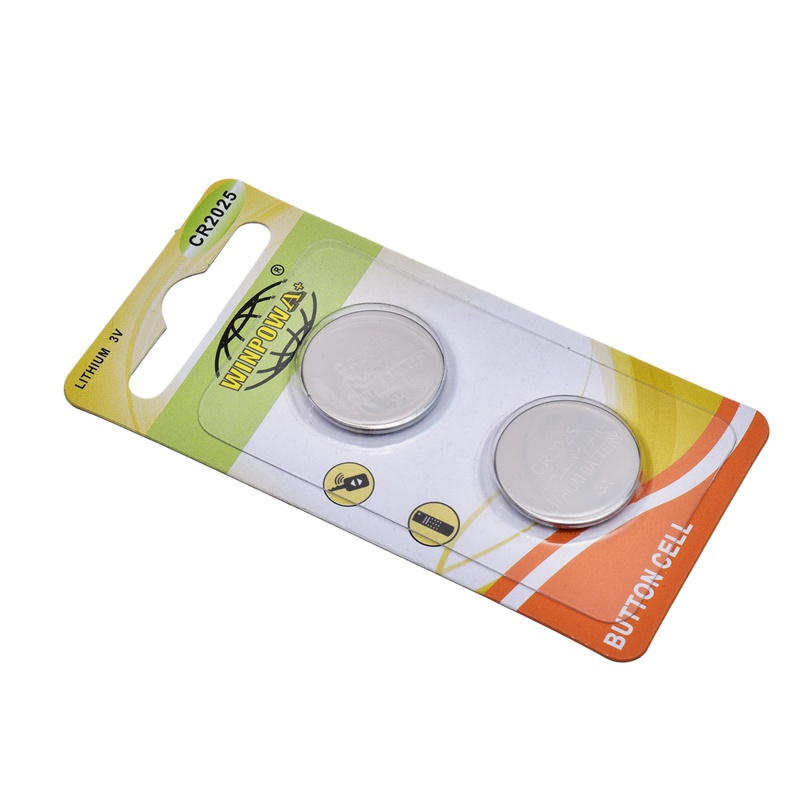

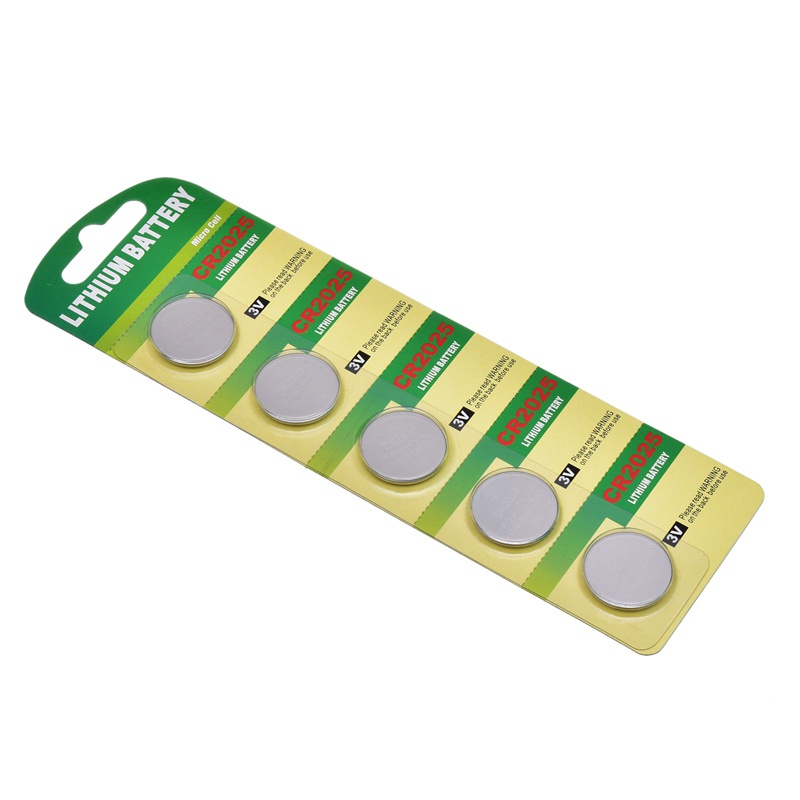

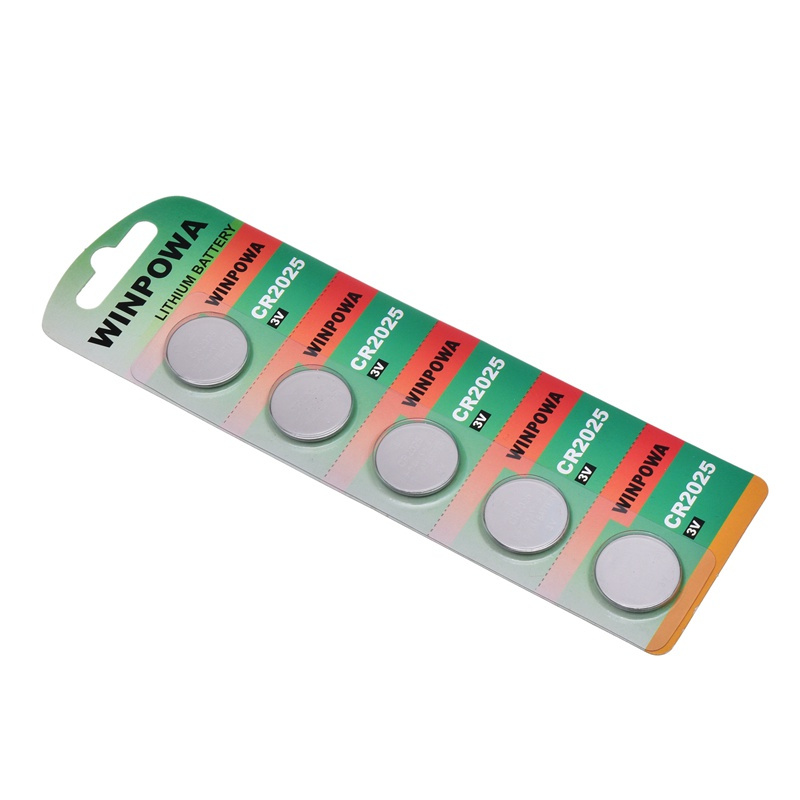

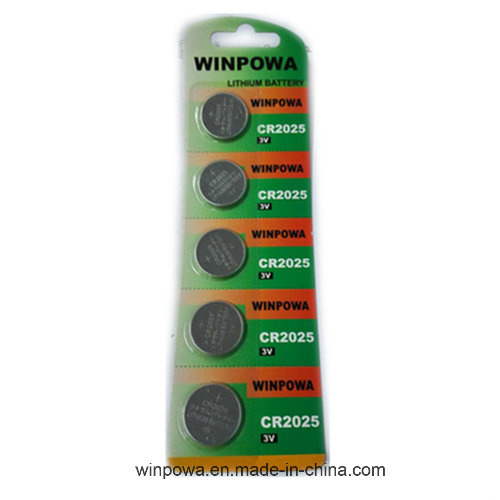

Programmable keyless remote control CR2025 battery
Product overview
Chemical System : Coin Type Manganese Dioxide Lithium battery
Model No. : CR2025
Nominal Dimensions:20.00×2.50mm
Nominal Voltage : 3.00V
Average Weight : 2.50g
Shelf Life : Not less than 95%of the service capacity, following 1st year storage at 20ºC.
Standard Capacity :150mAh(continuous discharge at 20 ºC under 0.20mA discharge current to 2.0V voltage)
Chemistry:
| Chemical Composition | CAS No. | EC# | Weight (%) |
| Manganese Dioxide | 1313-13-9 | 215-202-6 | 41.1 |
| Li | 7439-93-2 | 231-102-5 | 2.31 |
| Iron | 7439-89-6 | 231-096-4 | 45.23 |
| PC | 108-32-7 | 203-572-1 | 5.77 |
| DMC | 616-38-6 | 210-478-4 |
| DO | --- | --- |
| Lithium Perchlorate | 7791-03-9 | 232-237-2 |
Typical discharge time:
Test repots:
If you need more test reports, please contact us, thanks.
FAQ:
Q:Can you help us for freight?
A:Yes,we also have trustable forwarders for you option, if you need.
Q:Can we have our own packaging design?
A:Of cause, customized packaging is available, but it has MOQ required.
Q:How long is your warranty?
A:We offer 1 years warranty after order delivery.
