| Prod Model: |
HTW-51-2000 |
| Control Type: |
Digital on/off Control Thermostat |
| Supply Power: |
110VAC/220VAC |
| Fan-Speed: |
Manual/Automic 3-Speed/Ventilation Configurable |
| Version: |
Horizontal/Vertical Optional |
| Installation: |
Flush Mounted in 86 Junction Box |
| Temperature Unit: |
ºC/F Configurable |
| Key-Board: |
Lock/Unlock Configurable |
| Changeover: |
Heating/Cooling/Ventilation |
Product Description
Product Description
>>General Application

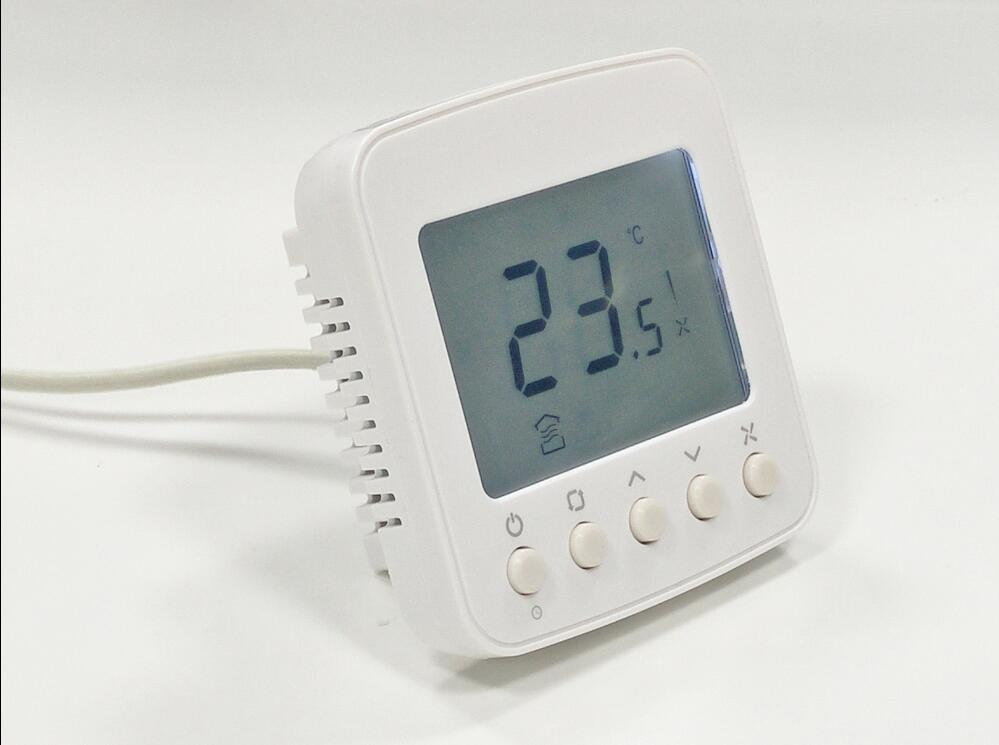

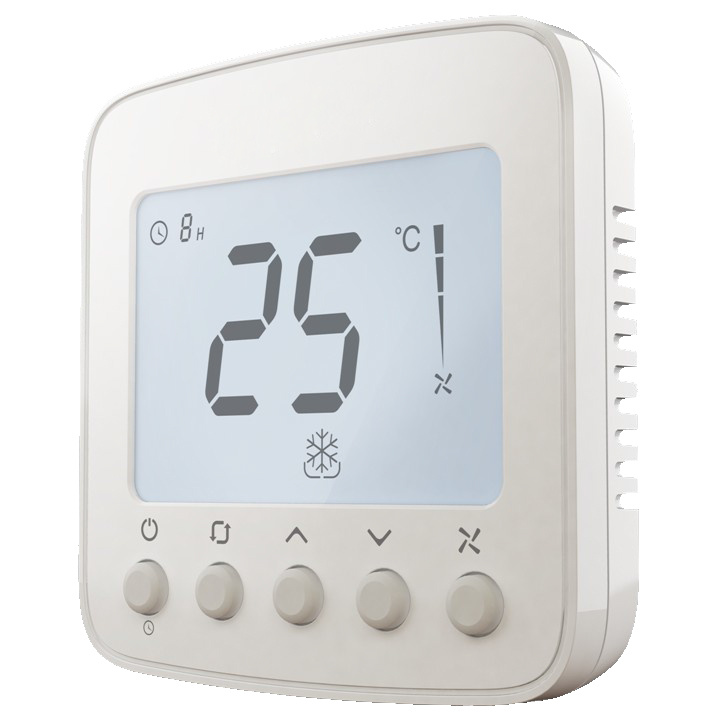

The TF228WN digital thermostat is designed for 3-speed fan and valve control in a fan coil system, including:
2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Besides the basic controls, TF228WN featuring CPH (Cycle Per Hour) better maintains the room temperature to the setpoint
and memorized time off function can automatically turn off the thermostat to save energy.
In addition, Honeywell Random start-up function would help to maintain power grid stability.
>>Features
Memorized time off
Cycle Per Hour (CPH)
Random startup
LCD display with simple user interface
Room temperature or setpoint temperature display selectable
Manual or automatic fan speed selectable
Temperature units in either °C or °F
User setting can be stored with power loss
Freeze protection available
Four keypad lock options
Heating and cooling setpoint limitation
Flush mount on standard 86 wall mounting box
>>Specification
Power supply :220(+10%,-15%)VAC, 50Hz
Control PI, On/off output
Accuracy :±1°C at 21°C
Rating capacity: 3A for fan load, 2A for zone valve
Protection class: IP20
Set point range: 10 ~ 32°C
Display range: 0 ~ 37°C
Ambient operating limits: 0~ +49°C
Ambient storage limits: -30 ~ +49°C
Humidity limits: 5~90% RH, non-condensing
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
HOTOWELL International Co., Limited is an innovative and modern medium-sized enterprise, the company is headquartered in Xiamen (China/Fujian). Hotowell was found to offer our customers mature top technology. Our creative potential and our manufacturing and development know how are the basis for innovative products. Since the company was founded, HOTOWELL International Co., Limited has continuously developed itself into a market leading enterprise in the HVAC Automation / Building Automation. Our products mainly applied for industrial, commercial and residential temperature control.
Our product range contains:
Thermostats, Motorized Zone Valves, Water Flow Switches, Proportional Valves, Balancing Valves, Differential Pressure Transmitters, PIR Motion Sensors, Fan Controllers, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.
HOTOWELL products are designed and used as field control products to be integrated with HVAC control systems such as:
BAS = Building Automation System
BMS = Building Management System
BEMS = Building Energy Management System
BAMS = Building Automation Management Systems
HVAC controls = Heating, Ventilation and Air Conditioning controls
Our objective is to develop, produce and design user-friendly products on the highest technical level. We place great value on always meeting the requirements of the latest technical standard. In this process we take the utmost care in complying with quality and safety standards and thus ensure a long service life for our products. Products that satisfy rigorous quality requirements can only be manufactured through modern manufacturing methods. Satisfaction of all safety and environmental guidelines is a matter of course for us.
Our Products save money and protect the environment!
*********************************************************************************************************
