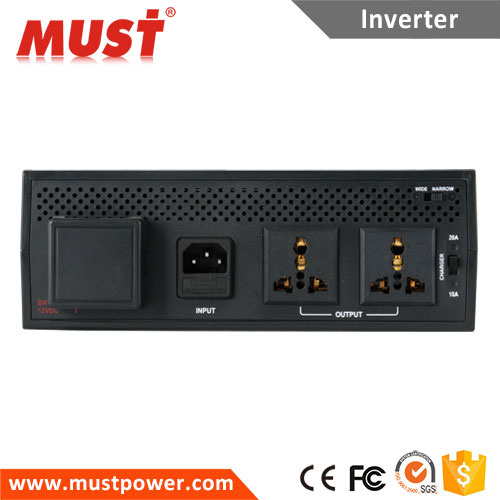

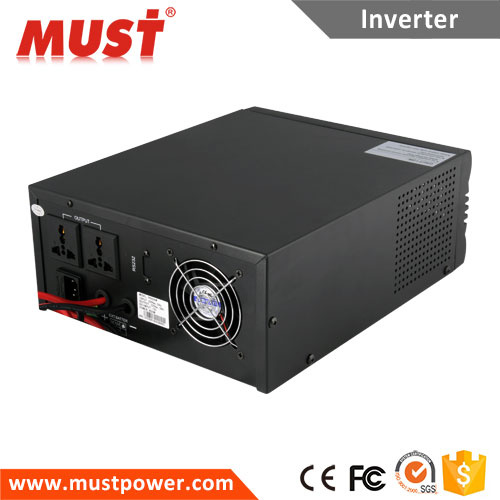

Promotion Selling! ! ! New Function 3000W Inverter Charger

Prod Model:	NB300W 600W 800W 1000W
Markets:	South America,Southeast Asia,Africa

Product Description

Promotion Selling! ! ! NEW Function 3000W Inverter Charger

Features descroptaions:

NB Series type inverter power supply is a new type, which adopts the design of advanced high-frequency pulse-width modulation technology and microcomputer control technology. It has many good points, including high reliability, complete protection function, Small waveform distortion, low price, etc. It can convert the 48V DC power supply into the purity sine wave AC power supply of voltage stabilizing, frequency stabilizing and low noise of 220V and 50Hz.

This product has higher conversion efficiency (can reach up to above 90% under the full load) and very strong nonlinear load drive capacity, and simultaneously implement the inspection and monitoring to input voltage
& current and output voltage & current; Therefore, it realizes the maintenance function of unattended operation. Which is applied to SPC exchanger, computer room, network, billing server, accident lighting and other places that have the 12V - 48V (or-48V) DC dynamic (DC screen)a

Main characteristics
1. High efficiency and reliability
2. Protection Function
3. Computer inspection monitoring
4. Automatic shunt circuit transformation

MODEL		NB1000W		NB1200W	NB1500W	NB2000W		NB3000W
INPUT	Phase	Single
	Voltage	100/110/127/220/230(+25%,-25%)
	Frequency	60/50+/-10%
OUTPUT	Phase	Single
	Voltage range(VAC)	100/110/127/220/230+/-5%
	Frequency	Commercial power supply shared frequency with the commercial inversion state:60/50+/-0.5
	Waveform	Sine wave
BATTERY	DC Voltage	DC24V		DC24V	DC48V		DC48V	DC48V
	Back up Time	Standard model: (halfload)>/=8min
	Recharge current	Long back up model: 15A max, standard model: 3A max
	TRANSFER TIME	Typical		Typical: 5ms (including detection time)
Display	LCD/LED	Optional
PROTECTION	Full Protection	Discharge, overcharge, and overload protection
PHYSICAL	Dimension, DXWXH (mm)	480*235*305	574*325*495
	Out packing Size, DXWXH (mm)	495*490*320 (2cs/ctn)	584*335*495(1pcs/ctn)
	Gross Weight (kgs)	23	25		27	32		38
ENVIRONMENT	Operating Environment	0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing)
	Noise Level	Less than 40dB
INTERFACE	Smart RS-232	Support Windows family, Linux, Compaq True64,
	USB Option	N / A
