Protection Children GPS Tracker with Smart Bluetooth Anti Theft Function
Price: |
US $ 44-49/Set |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
PT09 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
60*43*25mm |
Weight: |
80g |
GSM Chip: |
Quectel M35 |
GPS Chip: |
Ublox 7 |
Back-up Battery: |
2000 mAh |
Warranty: |
2 Years |
Free GPS Tracking Platform: |
Yes |
Is Customizable: |
Yes |
Protocol: |
Opened |
Input Voltage: |
DC 4.5V~5.5V/400mA(Mini USB Port) |
Product Description

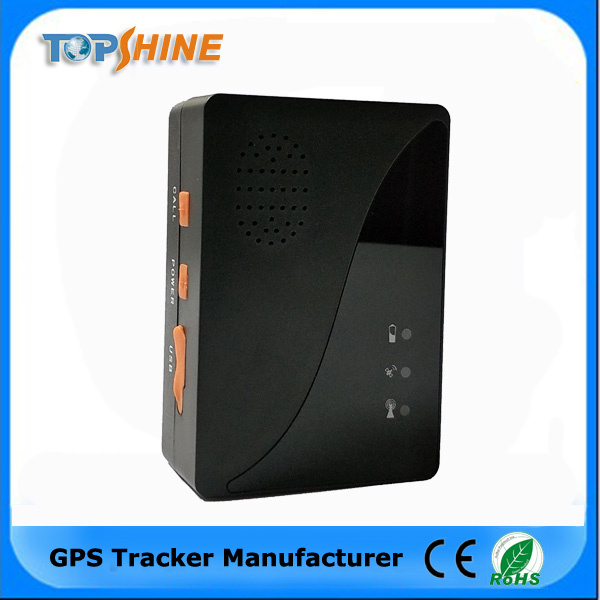

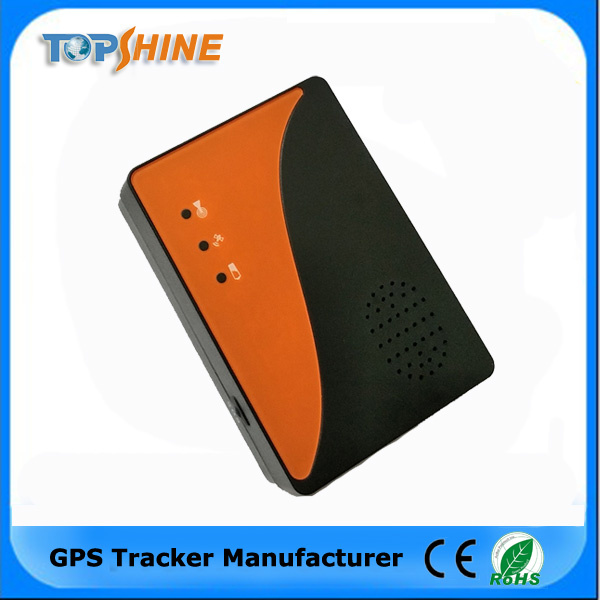

Protection children GPS tracker with smart Bluetooth anti theft function PT09
(* Free GPS tracking platform lifetime * 2 years warranty * 1 day delivery * High Quality * Factory
price )
General Description:
PT09 is a personal remote position device,small size,build-in battery,easy to use.PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance.It is suitable for the care&protection&rescue of the elderly, children, patients, wild area explorer ,tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.

Applications:
1.Vehicle tracking
2.Person Safety (Kids,Elders, Patients, Wild Visitors)
3.Pet/Animal Tracking
4.Asset Tracking
Specification Items | Specifications |
Dimension | 60*43*25mm |
Weight | 80g |
ChargingVoltage | DC 4.5V~5.5V/850mA(Mini USB port) |
|
Power consumption | Active mode(peak) < 1.0A Active mode(avg.) < 300mA |
Operating Temperature | -30~+75 Celsius degree |
Humidity | Up to 75% non-condensing |
External Antenna | Connected via 50 ohm coax connector |
External SIM Card | Connected via SIM card connector |
Button | 1SOS and 1poweron/off |
Microphone | Optional |
Transmit Power | Class 4(2W) for E-GSM 900 and 850 Class 1(1W) for DCS 1800 Class 1(1W) for PCS 1900 |
Sensitivity | -104dBm minimum for E-GSM 900 AND 850 -102dBm minimum for DCS 1800 -102dBm minimum for PCS 1900 |
GPSChip | LatestGPSSIRF-StarIIIchipset |
GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.) Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4) Maximum download speed is 85.6kbps Maximum upload speed is 21.4kbps |
Speech Codec | Triple rate Codec Half rate_ETS 06.20 Full rate_ETS 06.10 Enhance full rate_ETS 06.50/06.06/06.08 |
Packing Measures: | |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 165x155x50 | 0.24 | 1 set |
Carton | 470x340x310 | 9 | 30 sets |
Main Features:
1. Smart Bluetooth Anti lose /anti theft for child/elderly/luggage/pet/ vehicle ect
(When your children/luggage/asset/pet go away from you some distance,the tracker will send you alarm message or call you.)
2. Elderly fall alert 3. Built in Speaker and microphone( two way communication )
4. Quick dial button for 3 calls, talking as a mobile phone
5. With 2000 mAh inbuilt rechargeable battery
6. Ultra low power consumption, continuously work 40hours by 1 minute interval, standby time more than 7 days
7. Two way locating, can still track on map when there is no GPS signal, especial in buildings or in subway.
8. Inbuilt 4MB data logger for saving position when there is no GSM/GPRS network coverage
9. Tracking via SMS or GPRS(TCP/UDP)
10. Real time GPS locating;
11. Set automatic tracking by distance or time interval
12. Get actual location name via SMS or internet
13. Get position GoogleMap link via SMS
14. SOS panic button
15. Geo-fence control, over speed alert
16. Built-in motion sensor for power saving
17. Mileage report
18. No installation, small and easy to carry
Standard Package:
Main unit
charger
USB cable


We also supply you Free web base and Android APP GPS tracking platform lifelong,no charge.
But other company will charge you tracking platform months /year fee or exist other hidden cost.
Welcome login our multifunction platform demo to experience the function.
Web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: test1
Password: 123
( This is demo account.May have some limitation.after you purchase GPS tracking devices from us ,we will help you create a main account of GPS tracking platform ,you can management your account ,can set unlimited sub account for your clients )

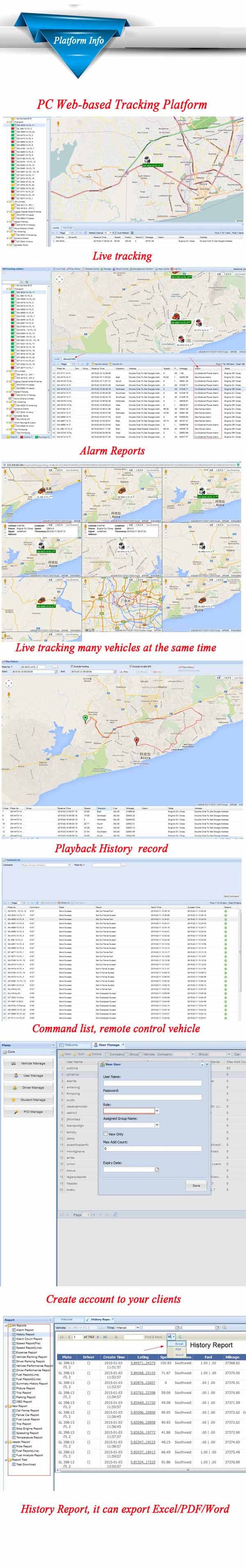

We base GPS tracking platform

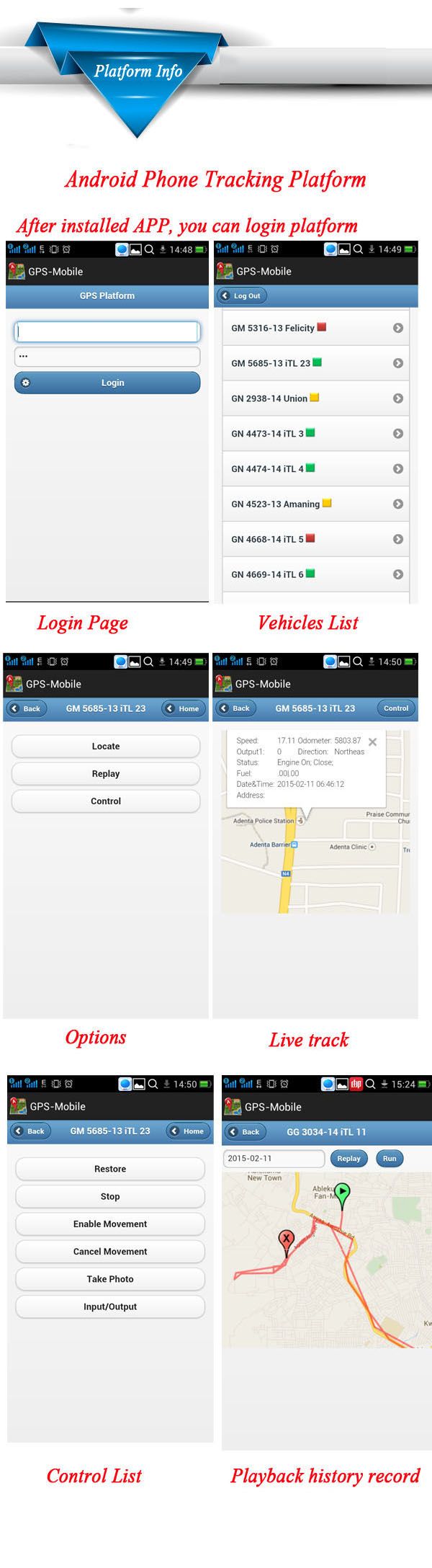

Android APP GPS tracking platform

Shipment & Certificate

What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
Inquiry Now!!
Fiona:
Cel: 00-86-15989113087
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
Professional Consulting Services
With years of service experience, we have built up a good reputation and a strong
Professional team to provide strategic solutions and technical advice in fleet
Management. We work closely with all our clients to define their problems and
Expectations and tailor the best solution to solve their fleet management problems.
Our role is more than a technology provider who is assisting you to drive your
Business to be more profitable and competitive.
Customer Integration Services
Our team will support you as you work to integrate the GPRS01 system into your
Operations. We provide complete servicing from the installation to the maintenance of
Each tracking unit. A member of our customer support team will help coordinate the
Times and location for unit installation and demo/training times at your convenience,
While you, our client, can concentrate on managing your business.
On-Site Training Services
Once we have installed our units in your fleets, a training session will be arranged to
Familiarize all necessary parties with the software. We also provide a customer service
Help desk to assist you should you have any further questions. Our strong customer
Service team will ensure you understand the system and can put it to good use.
Customer Care Services
Customer satisfaction is a critical element for us. We care about our clients' needs,
Ideas and opinions. We make sure our products and services satisfy or exceed our
Client's expectations.
