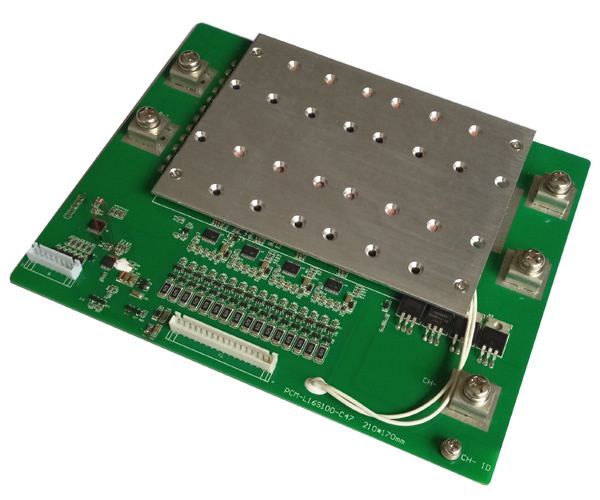

Protection Circuit Module For 16S Lithium/Lipo/LiFePO4 battery pack
Quick Detail:
Brand Name: QUAWIN/OEM
Specified Types: 8S Li-ion/Li-polymer/LiFePO4 Battery Pack
Place of Origin: Guangdong China (Mainland)
Charging Voltage:
Li-ion/Li-polymer: 59.2V±0.05V
LiFePO4: 51.2V±0.05V
Max. continuous charging current: 100A
Warranty: 12months
Packaging & Delivery:
.Netural labels, Antistatic bag /white box and standard export carton/customized
. Netural packing/Carton box with less than 10KGS
. Delivery Detail: sample within 5 work days, 15 days for bulk order
Specifications:
| Protection Circuit Module Specifications For 16S Lithium/Lipo/LiFePO4 battery pack |
| Model: PCM-L16S100-C47(16S) |
| No. | Test item (Test at normal temperature 25±2ºC and relative humidity≤90%) | Criterion |
| 1 | Capacity | Designing battery capacity | 100000mAh |
| Designing battery capacity | 100000mAh |
| Max capacity(Battery pack) | 320000mAh |
| Min capacity(Battery pack) | 800mAh |
| External capacity Indication | |
| Gas gauge algorithm | Impedance Track |
| 2 | Voltage | Charging voltage | DC: 57.6V(3.6V/1cell) |
| Balance voltage for single cell | 3.6V±0.03V |
| 3 | Current | Balance current for single cell | 58±5mA |
Normal operating-mode current:Gas Gauge
in NORMAL mode,ILOAD > Sleep Current | 600 uA |
SLEEP operating-mode current:Gas Gauge
in SLEEP mode,ILOAD < Sleep Current | 250 uA |
FULL SLEEP operating-mode current:Gas Gauge
in FULL SLEEP mode,ILOAD < Sleep Current | 100 uA |
| Maximal continuous charging current | 30A |
| Maximal continuous discharging current | 100A |
| 4 | Over charge Protection | Over charge detection voltage | 3.75±0.05V |
| Over charge detection delay time | 0.5S-2S |
| Over charge release voltage | 3.55±0.1V |
| 5 | Over discharge protection | Over discharge detection voltage | 2.20±0.1V |
| Over discharge detection delay time | 150-300mS |
| Over discharge release voltage | 2.70±0.1V |
| 6 | Over current protection | Over current detection current | 350±30A |
| Detection delay time | 100ms-300ms |
| Release condition | Cut load |
| 7 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 200us-2ms |
| Release condition | Cut load |
| 8 | Resistance | Protection circuitry | ≤20mΩ |
| 9 | Temperature | Operating Temperature Range | -40~+85ºC |
| Storage Temperature Range | -40~+125ºC |
| The above parameter test temperature is 25 DEG C, if the temperature is not at 25 C there will be a certain deviation. |
