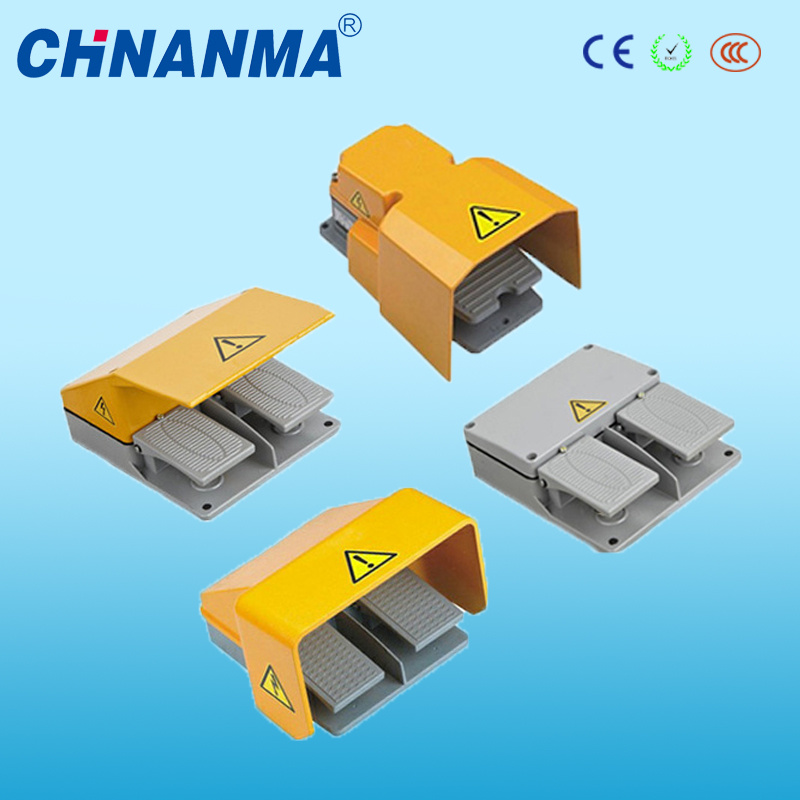

Protective Guard Type Foot Switch

Prod Model:	FS-402
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP54
Color:	Free Choice
Max. Current:	10A
Max. Voltage:	250VAC
Withstand Voltage:	2000VAC
Mechanical Life:	1,000,000 Times Above
Rotary Number:	Dual Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Protection Type
Certification:	CE
Condition:	New

Product Description

Specifications

Foot Switch:
10A 250VAC.
IRON Material.
Mechanical Life:1,000,000times above.



Foot Switch XF-1 (FS-1) Features:

 Steel housing is painted black.

Speical Twin,Triple baseplates with wiring channel available on special order.

Application Attentions:


1.According to the difference of load and current value,rated load should be taken note.Current value of this serise is 10A and 15A;
2.When transporting and moving,pls take note of the short circuit or open circuit may happen in internal wiring;
3.Please take note of the level of protection when used in water,oil and bug dust.This series has protective type and unprotective type;
4.The immediate cause for broken is stress and attack,please pay attention;
5.Warning mark'Danger! High Voltage!' and 'Take note!' remind us pay attention to personnel safety and correctly operation.

Contact resistance	25mΩ(Initial value)
Insulation resistance	100mΩ(above)DC500V
Withstand voltage	>=2000VAC
Mechanical life	1,000,000 above
Electrical life	100,000 above
Operating temperature	-20~+70ºC
Operating humidity	<=85%

3.Specification

Material	Steel
Inner Switch	FS-1
Rating Load	10A250VAC
Contact Form	1C
Outgoing	0.5mm2X3
Protection Degree	IP54

4.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

5.Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 100PCS, mixed order acceptable, welcome trial order.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
