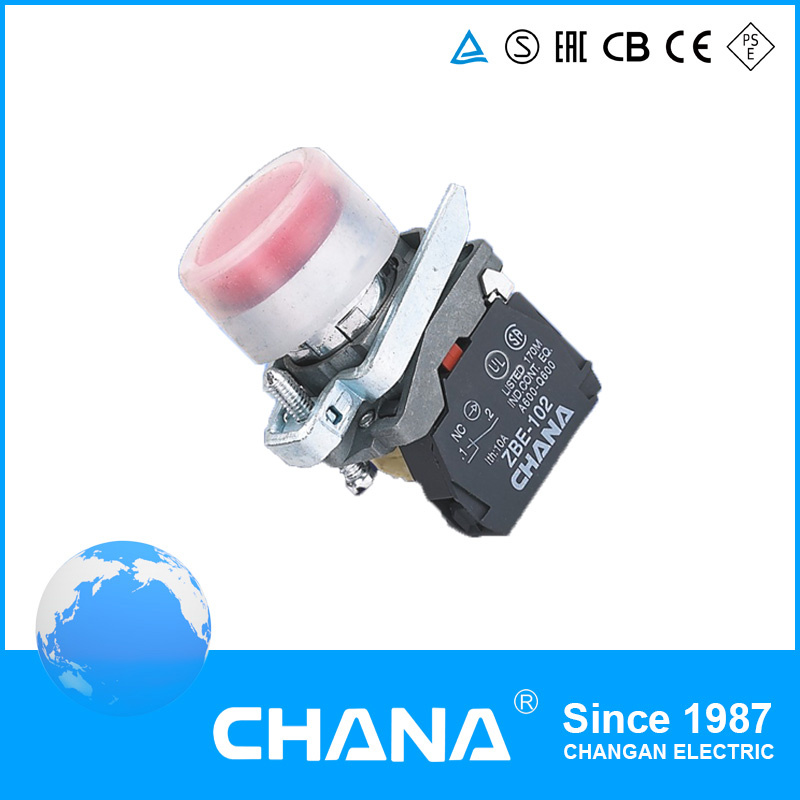

Protruding Button Cover IP65 Pushbutton Switch

Name: Protruding Button Cover IP65 Pushbutton Switch
Brand: all-electronics-online.com
SKU: 796099555
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 1.06-1.20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB4-BA
Description:	Indicator Light 6V-380V
Quality:	Different Kinds for Your Choice
Brand Name:	Chana or OEM
Packing Type:	Box
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Structure:	Copper&Silver Contact
Contact Type:	Flushpushbutton
Brand:	Chana
Certification:	RoHS

Product Description

Flush Button Spring Return Pushbutton Switch

1. Application

The pushbutton series are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking. The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC coltage 380v, 50hz or 60hz, DC vooltage below 380V, Used as kinds of indication signal, warning signal, accident signal and other signals. Our products comply withGB/T14048.1 and IEC60947-5-1, ALL PRODUCTS HAS GAINED ce, iso9001, ROHS and CE certification.

2. Specification

Operation temperature: -5ºC~+40ºC	Power-frequency withstand voltage:2500V, 1min
Operation humidity: 45%~85%	Electric durability: 50 x 104
Contact resistance: ≤50mΩ	Degree of protection: IP40
Rated insulation voltage	Ui 600V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V 220V 110V 48V 24V
Rated operation current	AC-5 2.5A 4.5A 6A 8A -
Rated operation current	DC-13 - 0.3A 0.6A 1.3A 2.5

Description	Type	Scheme	Color
Flush button spring return	CB4-BA11	N/O	White
	CB4-BA21	N/O	Black
	CB4-BA31	N/O	Green
	CB4-BA51	N/O	Yellow
	CB4-BA61	N/O	Blue
	CB4-BA42	N/C	Red
	CB4-BA25	N/O+N/C	Black
	CB4-BA35	N/O+N/C	Green
	CB4-BA45	N/O+N/C	Red
Button with protection cover IP65	CB4-BP11	N/O	White
	CB4-BP21	N/O	Black
	CB4-BP31	N/O	Green
	CB4-BP51	N/O	Yellow
	CB4-BP61	N/O	Blue
	CB4-BP42	N/C	Red
	CB4-BP25	N/O+N/C	Black
	CB4-BP35	N/O+N/C	Green
	CB4-BP45	N/O+N/C	Red

3. Feature Product

4. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

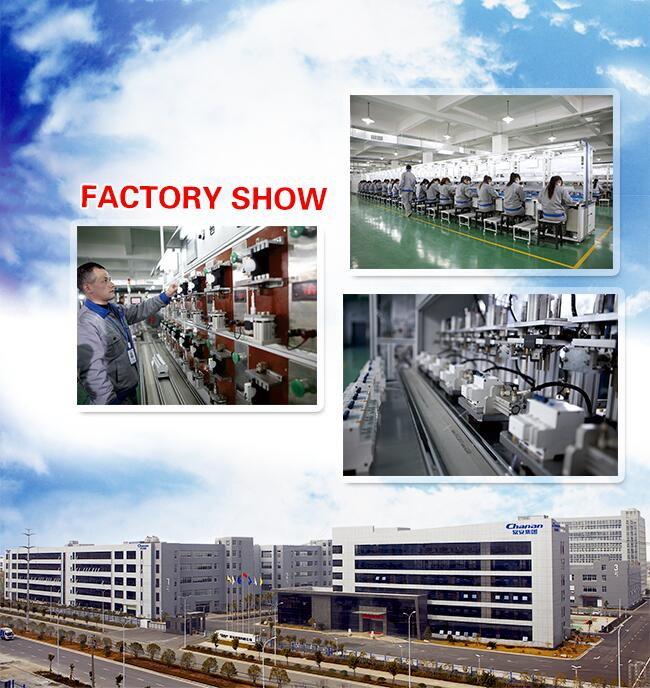

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

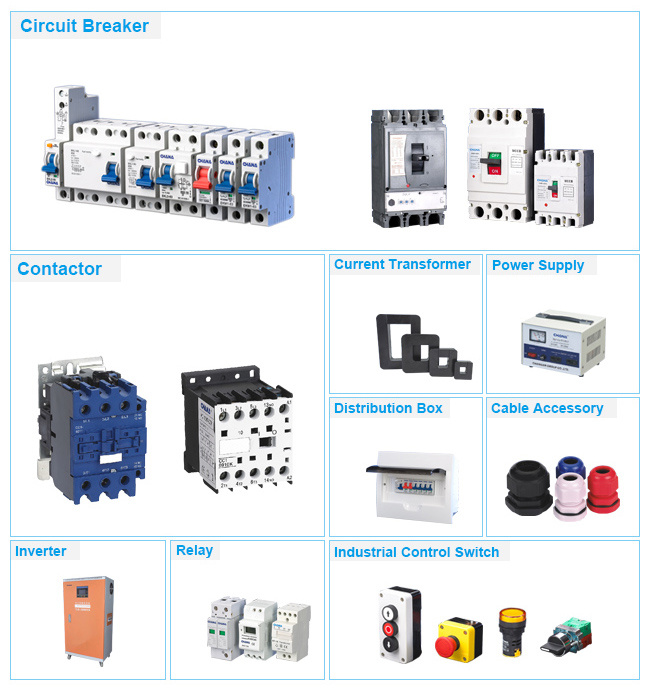

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
