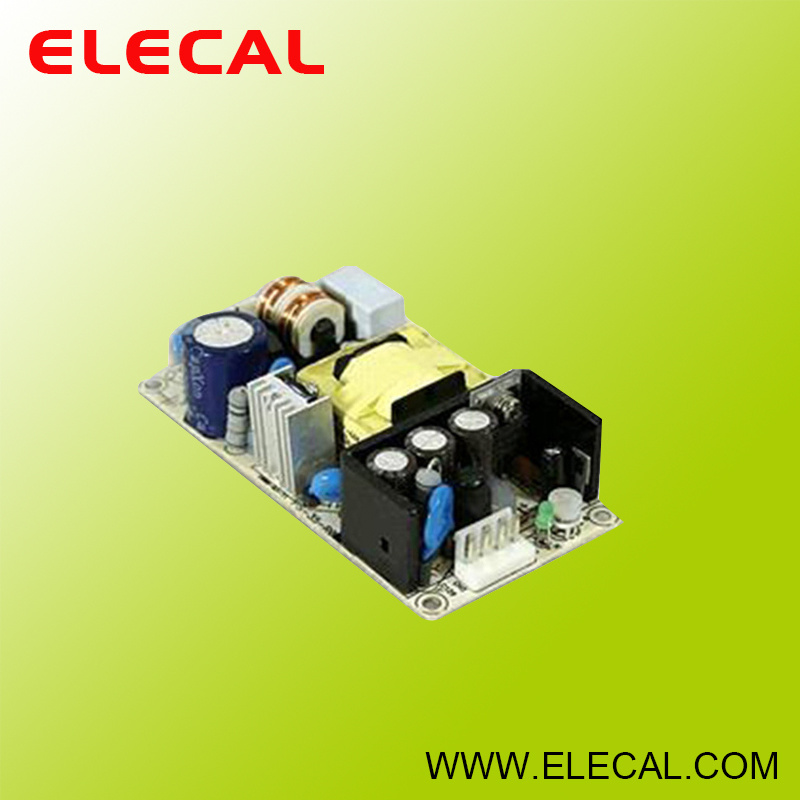

PS-45 Open Frame Switching Power Supply

PS-45 Open Frame Switching Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: PS-45
Frequency Range: 47~440Hz
Warranty: 2 Years
Power Supplying System: Terminal Power Distribution Equipment
Certification: CE
Output Type: Single Output
Output Power: 40W-48W
Input Voltage: 90~264VAC 127~370VAC
Brand: Elecal

Product Description

MODELPS-45-5PS-45-7.5PS-45-12PS-45-15PS-45-24PS-45-48
OUTPUTDC VOLTAGE5V7.5V12V15V24V48V
RATED CURRENT8A5.4A3.7A3A1.9A1A
CURRENT RANGE0~10.5A0~7A0~4.4A0~3.5A0~2.2A0~1.1A
RATED POWER40W40.5W44.4W45W45.6W48W
OUTPUT POWER (Max)Rated output power for convection (+3.3V: 35W) with 18CFM min
RIPPLE & NOISE (max.) Note.2100mVp-p100mVp-p100mVp-p100mVp-p100mVp-p100mVp-p
VOLTAGE ADJ.RANGE4.75~5.5V7.13~8.25V11.4~13.2V14.25~16.5V22.8~26.4V45.6~52.8V
VOLTAGE TOLERANCE Note.3±3%±3%±2%±2%±2%±2%
LINE REGULATION±1%±1%±1%±1%±1%±1%
LOAD REGULATION±3%±3%±2%±2%±2%±2%
SETUP, RISE TIME800ms,30ms at full load
HOLD UP TIME(Typ.)60ms at full load
INPUTVOLTAGE RANGE90~264VAC 127~370VAC
FREQUENCY RANGE47~440Hz
EFFICIENCY (Typ.)74%75%76%77%78%78%
AC CURRENT (Typ.)0.8A/115VAC 0.56A/230VAC
INRUSH CURRENT(Typ.)CLOD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT<0.75mA /240VAC
PROTECTIONOVERLOAD53~75W (3.3: 36~55W) rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVERVOLTAGE5.75~6.75V8.63~10.1V13.8~16.2V17.25~20.25V27.6~32.4V55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
OVER TEMPERATURET 140ºC typically (U1)Detect on main control IC
Protection type :Hiccup mode, recovers automatically after fault condition of removed
ENVIRONMENTWORKING TEMP.-10 ~ +60°C (Refer to "Derating Curve") 20 ~ 90% RH non-condensing
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20-+85°C, 10~95% RH
TEMP. COEFFICIENT±0.05%/ºC (0~50ºC)
VIBRATION10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &
EMC (Note 4)		SAFETY STANDARDSUL60950-1,TUVEN60950-1 approved, Design refer to EN50178
WITHSTAND VOLTAGEl/P-0/P:3KVAC
ISOLATION RESISTANCEl/P-O/P: 100M Ohms / 500VDC / 25ºC 70% RH
EMC EMISSIONCompliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6, 8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERSMTBF300.7Khrsmin. MIL-HDBK-217F(25ºC)
DIMENSION127*76*28mm (W*H*D)
PACKING0.19Kg;72pcs/15.6Kg/1.35UFT
NOTE1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment.The final equipment must be re-confirmed that it still meet EMC directives. For guidance on how to preform these EMC test, Please refer to " EMI testing of component power supply.
