PT 24kv Indoor Single-Phase Epoxy Resin Type with Inbuilt Fuse

Name: PT 24kv Indoor Single-Phase Epoxy Resin Type with Inbuilt Fuse
Brand: all-electronics-online.com
SKU: 788932535
Availability: InStock
Rating: 5 (84 reviews)

Price:	US $ 400-460/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZX12-24R-002
Indoor:	Voltage Transformer
Inbuilt Fuse:	Sing Pole
Frequency:	Epoxy Resin
12kv:	25-20k Hz 45-600Hz
China:	Factory
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

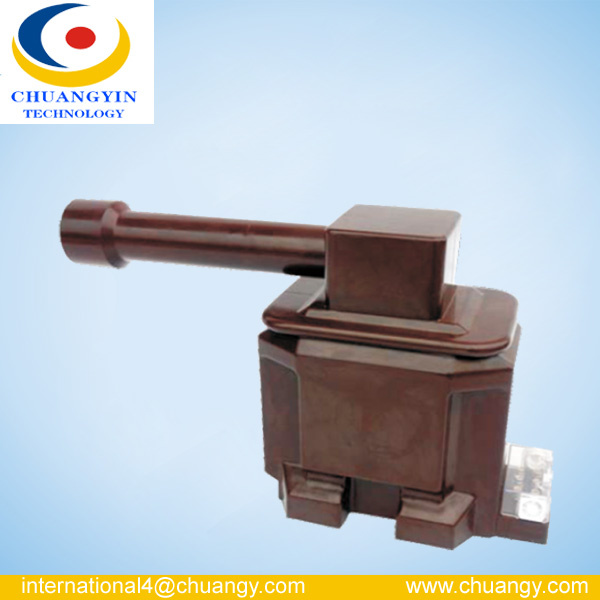

JDZX12-24R VOLTAGE TRANSFORMER
24kV Indoor Single-Phase Epoxy Resin Type

Technical Data
1. Installation site                      Indoor
2. Rated Frequency                    50/60Hz
3. Burden power factor                 CosΦ=0.8(lagging)
4. Technical standard accords with     IEC 61869-1:2007, IEC 61869-3:2011

Specification

Type	Rated primary Voltage(KV)	Rated secondary Voltage(KV)	Accuracy classes combination	Rated output(VA)	Thermal limiting Output (VA)	Rated Insulation level (KV)
JDZX12-24R	15/√3 20/√3 22/√3	0.1/√3 0.11/√3	0.2	20	500	17.5/38/95 24/50/125
			0.5	50
			1	80
		0.1/√3/0.1/√3 0.11/√3/0.11/√3	0.2/0.5	25/25	400
		0.1/√3/0.1/√3 0.11/√3/0.11/√3	0.5/0.5	40/40	400
		0.1/√3/0.1/3 0.11/√3/0.11/3	0.5/3P	50/100	400

Note:Upon request we are glad to offer transformers according to other technical specs.

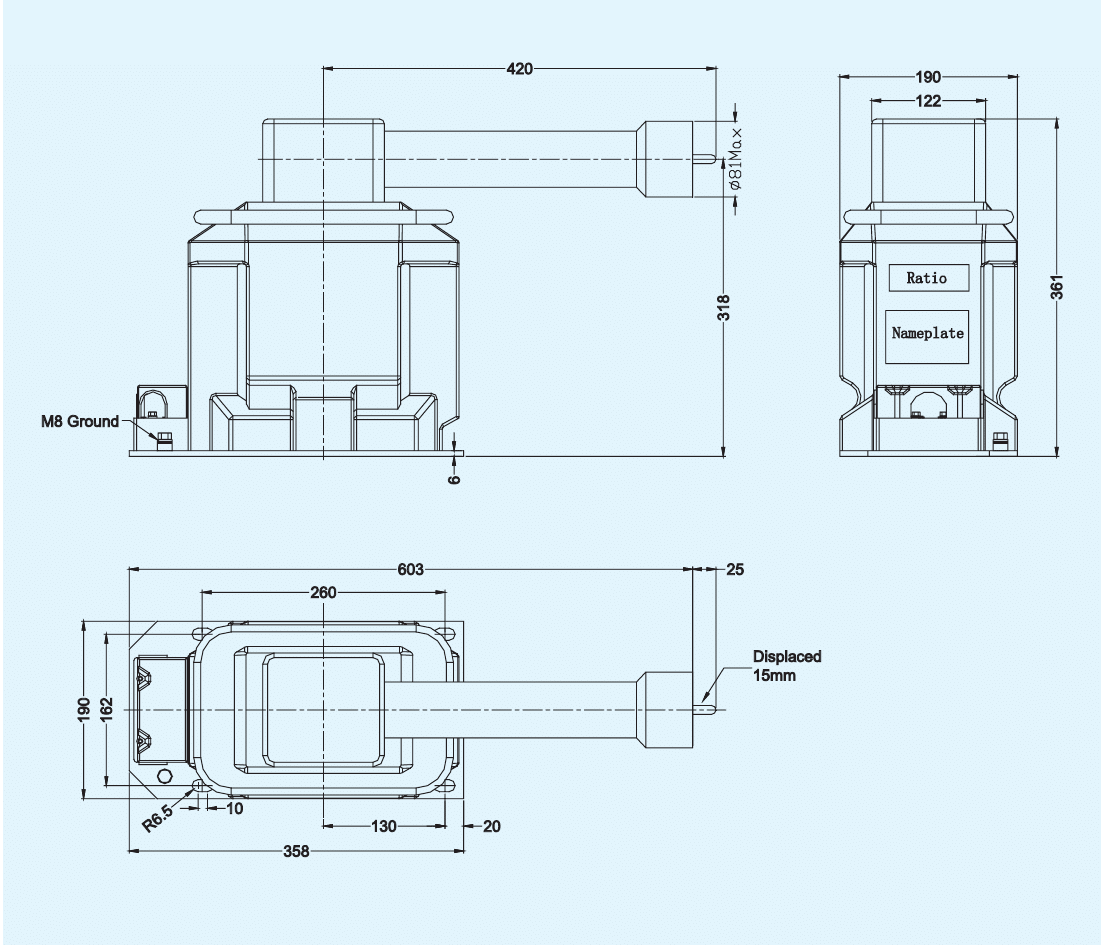

Outline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
