| Prod Model: |
DIN 1X1 ISO Z-W-P-O Series |
| Accuracy Grade: |
0.2 |
| Input: |
PT100, PT10, Cu100, Cu10, etc |
| Output: |
0-20mA, 4-20mA, 0-5V, 0-10V, etc |
| Isolation Voltage: |
3000VDC |
| Power Supply: |
5VDC, 12VDC, 15VDC, 24VDC, etc |
| Industrial Temperature Range: |
-45~+85 Centigrade |
| Type: |
DIN Rail-Mounted Type |
Product Description

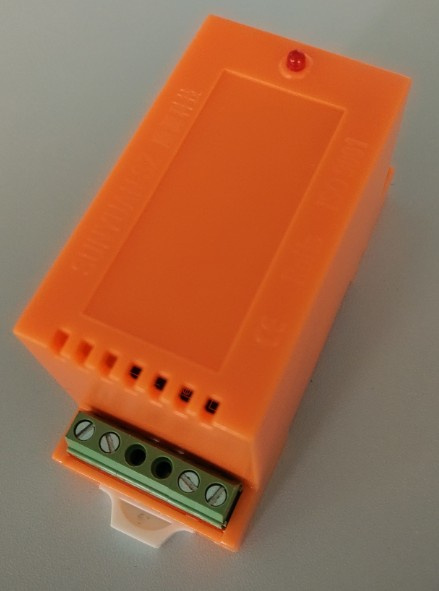

DIN Rail-Mounted PT100 to 4-20mA Thermal Resistance Isolation Transmitter
DIN1X1 ISO Z-W-P-O Series
Main Features:
Three-wire, four-wire or two-wire PT100/PT1000 thermal resistance signal input
Accuracy, Linearization error grade: 0.2
Linearization disposal and long line compensate circuit
Isolation Voltage: 3000VDC input/power/output
Power: 5V/12V/15V/24VDC or 110VAC/220VAC
International standard signal output: 4-20mA/0-5V/0-10V etc.
Small size, low cost
Standard DIN Rail-mounted: DIN 1x1
Industrial temperature range: - 45 ~ + 85 º C
Application:
PLC/DCS systemic temperature signal isolation, acquisition.
Industrial high accuracy temperature measurement
Thermal resistance signa isolation and temperature control
Ground-loop elimination
Temperature sensor signal converter to standard signal
Oil temperature measurement and alarm
No distortion in long distance signal transmission
Electric supervision, medical application and safe isolated bar.
Part number and description:
DIN1X1 ISO Z - W - P - O
Type
Z1: PT100 Z2: PT10
Z3: Cu100 Z4: Cu50
Input T Range
W1: -20-100 º C
W2: 0-100 º C
W3: 0-150 º C
W4: 0-200 º C
W5: 0-400 º C
W6: User-defined
Power Supply
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V P8: User-defined
Output Signal
O1: 4-20mA O2: 0-20mA O4: 0-5V O5: 0-10V
O6: 1-5V O7: User-defined
Examples:
1. Signal Input: PT100, temperature range: 0~100 grade. C; Signal output: 4-20mA; Power: 24V
Part No.: ISO Z1-W1-P1-O1
2. Signal input: Cu50, temperature range: 0~100 grade. C; Signal output: 0-5V; Power: 12V
Part No.: ISO Z4-W2-P2-O4
| Parameter | Test Condition | Min | Typical | Max | Unit |
| Isolated voltage | 1min | 1500 | 3000 | | VDC |
| Non-linearity(to temperature) | | | 0.2 | 0.5 | %FSR |
| Output Voltage | | | 5 | 10 | V |
| Output Current | | | 20 | | mA |
| Frequency response | | | 10 | | mS |
| Load capability(Voltage) | Vout=10V | | 2 | | kΩ |
| Load capability(Current) | Iout=20mA | | 500 | 650 | Ω |
| Signal output ripple | No-filter | | 10 | | mV |
| Output temperature drift | | | 50 | | ppm/ºC |
| Assistant power(Voltage) | User-define | 3.3 | 12 | 24 | VDC |
| Assistant power(Current) | VD=12V | | 42 | | mA |
| Power consumption | | 0.3 | 0.5 | 1 | W |
| Operating temperature | | -45 | | 85 | |
| Storage temperature | | -55 | | 125 | ºC |
