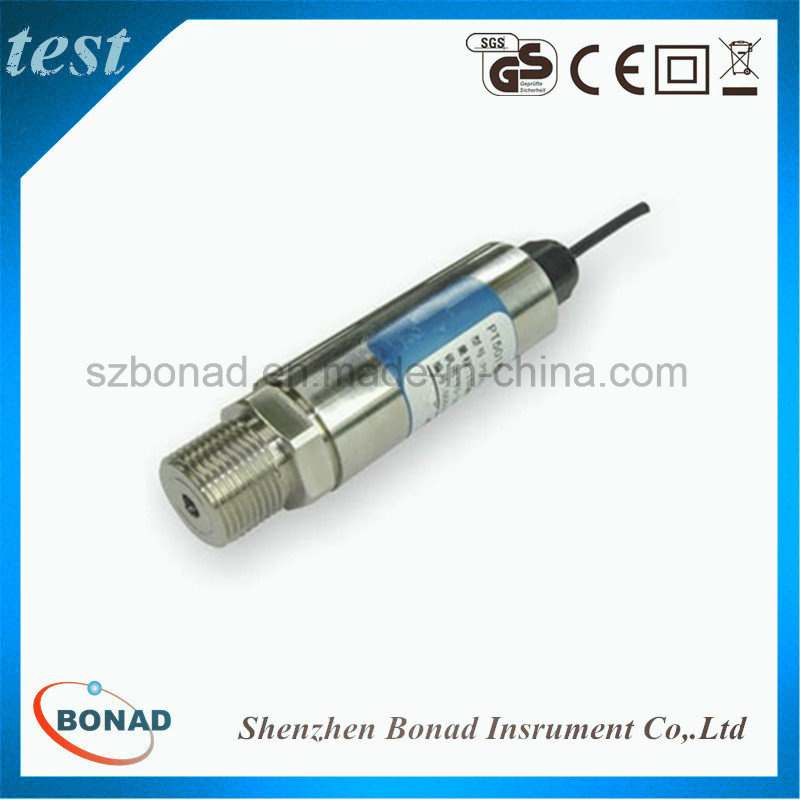

PT201 Silicon Piezoresistive and Ceramic Piezoelectric Force Transducer

Prod Model:	BND-PT201
Delivery Time:	3-7days
Warranty:	1year
Capacity Range:	0-10kpa~0-1.6MPa
Accuracy:	0.2%Fs 0.3%Fs, 0.5%Fs, 1.0%Fs
Output Signal:	4-20mA, 0~5V, 1-5V, 0~10V
Use Temp Range:	-10~80c
Long-Term Stability:	0.1%F.S/Year
Excitation Voltage:	10~36VDC
Product Name:	PT201 Pressure Transducer
Overload:	Safe Overload 120%, Ultimate Overload 150%

Product Description

PT201 silicon piezoresistive and ceramic piezoelectric force transducer

Technology parameter:
Capacity range :0-10kpa~0-1.6Mpa
Accuracy:0.2%FS 0.3%FS , 0.5%FS, 1.0%FS
Output signal : 4-20mA , 0~5V ,1-5V , 0~10V
Use temp range: -10~80C
Long-term stability :0.1%F.S/year
Excitation voltage:10~36VDC,if output=4~20mA or 0~5V or 1~5V ; 15-36Vdc, if output=0~10V
Thread connection :M20*1.5 or designed for customer's requirement
Burden Resistance:electric current output /=50komg
Defend Grade: IP65~IP67
Overload : safe overload:120%;
Ultimate overload : 150%

FAQ
1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

2.What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample

3.what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.

4.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .

5.What is the warranty of the products?
One year ,but we can provide you life long support .

6.What is the package
Export standard Solid wooden case

7.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

8.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
