Prod Model:	JY-PTC Thermostat

Product Description

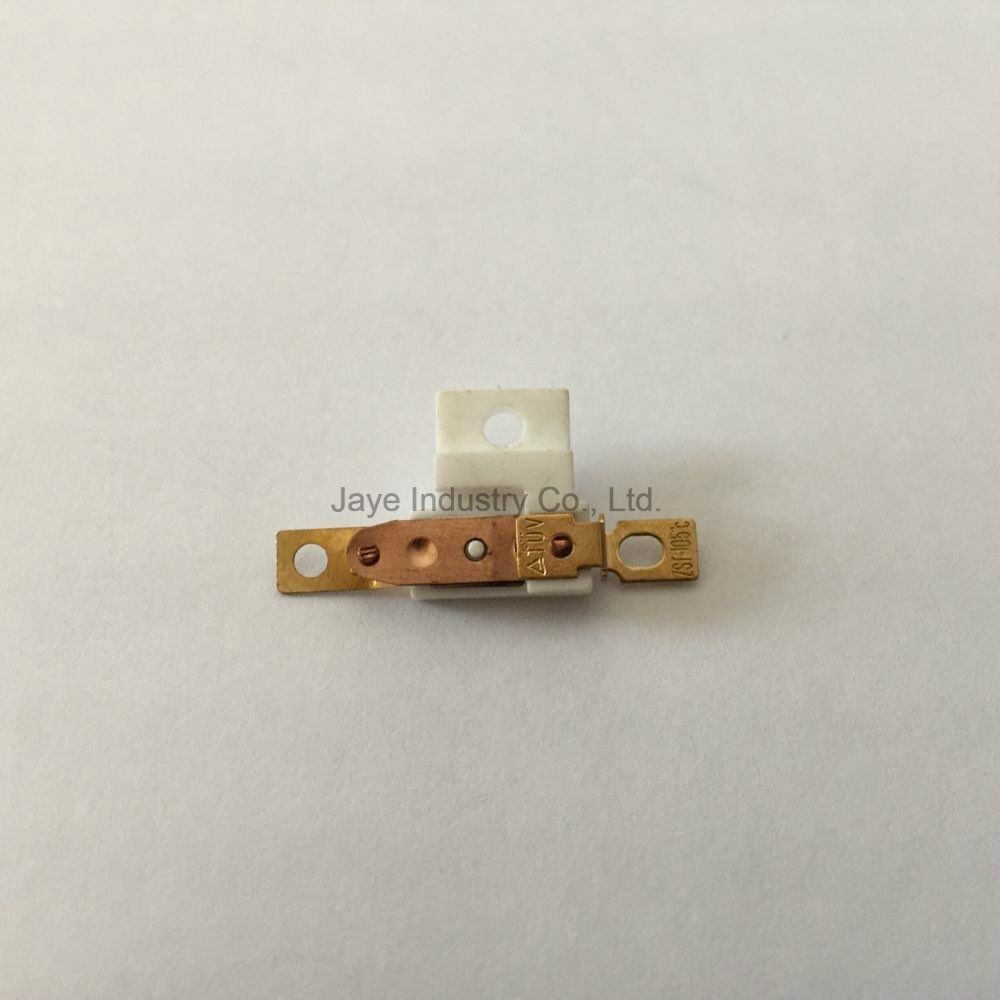

PTC Bimetal Thermostat

The PTC Thermostat is applicable to the Thermal Rediation ontrol on various heating appliances including Electric heaters, warm air blowers, dehumidifiers. etc.

Technical Parameters:
1-Operating Voltage/ Current: AC250V/10A AC125V/16A
2- Operating Temperature 60-150 (one step for every 5C)

Operational Preinciple
PTC component and contact circuit for parallel circuit if off and current flows through PTC component to form a loop.The temperature of PTC onmponent increased Rapidly. Being higher than rated Reset teperature and keeping the circuit in the off state.When the General power is off and temperature decreased to the reset temperature of bimetallic strip. the strip revocers rapidly and contact closes, providing a safer and more reliable protection on circuits.

The thermostat is applicable to the thermal radiation control on various electric heating appliances including electric heaters, warm air blowers, dehumidifiers, etc.

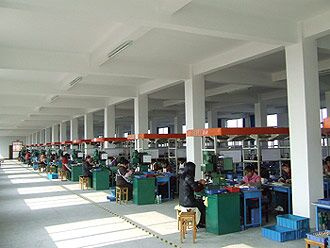

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.
