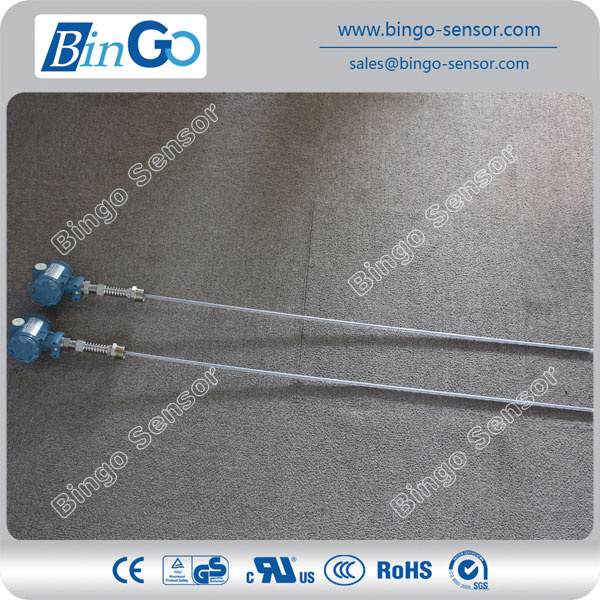

PTFE Coated Capacitance Water Level Sensor

PTFE Coated Capacitance Water Level Sensor
Price: US $ 1-11/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LS-C-01S-6-H-N-6-EO-Ex-1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range: 0.2~30m
Pressure: -0.1MPa~32MPa
Probe Temperature: -50~450
Accuracy: 0.2%F.S., 0.5%F.S.
Environment Temperature: -20~60
Output: 4~20mA(RS485 Customized)
Power Supply: 12~28VDC
Protection Grade: IP65
Connection: Thread, Flange(Customized)
Installation Method: Vertical Installation

Product Description

PTFE coated capacitance water level sensor

Introduction:
The working principle of Capacitance Level Switch is to use sensor bar, insulating object and the capacitance between the vessel wall and the ground electrode to reflect the level. When the sensor bar is covered by the medium gradually, the capacitance between the vessel wall and ground electrode is following to change, when the capacitance is up to the limited-value preset, switch signal output for realizing the level measurement and remote control.

2.Technical Parameter:
Product NamePTFE coated capacitance water level sensor
Measuring range0.2~30m
Pressure-0.1Mpa~32Mpa
Probe temperature-50~450ºC
Accuracy0.2%F.S., 0.5%F.S.
Environment temperature-20~60ºC
Storage temperature-55~125ºC
Output4~20mA(RS485 customized)
Power supply12~28VDC
Protection gradeIP65
MaterialSUS304/SUS316L, PTFE
ConnectionThread, flange(customized)
ApplicationWater,sewage,oil ect.
Installation methodVertical installation

Frequently Asked Questions:
1.Application:
Industrial alcohol, Plastic power, Cement, Glass power, Rice, Coal

2. How to choose a suitable level switch?
Users should select suitable switch according to the working temp., pressure,gravity,acid and alkali of the tested liquid.
Temperature:
PVC maximum temperature is 80°C, PP maximum temperature is 80°C,
PVDF maximum temperature is 150°C,
SUS304/316L maximum temperature is 200°C.
Pressure:
Plastic float maximum pressure resistance 5kg/cm2,
SUS304/316L maximum pressure resistance 40kg/cm2.
Viscosity:
For viscosity liquid, it is better to choose float with big diameter and small gravity to overcome the surface tension of liquid.
Acid and alkali liquid:
Please choose PP or PVDF, if temp. is higher than 80°C, PVDF ONLY
Alcohol and oil etc. liquid:
It is suggested to use stainless SUS.
Please select food grade SUS316L in food field.
Gravity:
Float's gravity S.G. should be less than tested liquid.

3. How to pay and how to delivery?
PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS

4. Packaging:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:

Our service
1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.

About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.

Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911,  Hulan Road, Baoshan, Shanghai
Zipcode: 201900

Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604

Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua

Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou

More information, you can browse our website: www.bingo-sensor.com

If you need PTFE coated capacitance water level sensor LS-C-01S-6-H-N-6-EO-Ex-1000, please feel free to contact us!
