Pull Type Load Cell/ Crane Rope Weighing System Weighing Sensor

Name: Pull Type Load Cell/ Crane Rope Weighing System Weighing Sensor
Brand: all-electronics-online.com
SKU: 773902185
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Capacity:	30t
Rated Output:	1.5mv/V
Accuracy:	C3 Class
Excitation Voltage:	9~12V
Overload:	300%Fs
Working Temperature:	-20~60 Centigrade
Product Name:	Crane Rope Weighing System Weighing Sensor

Product Description

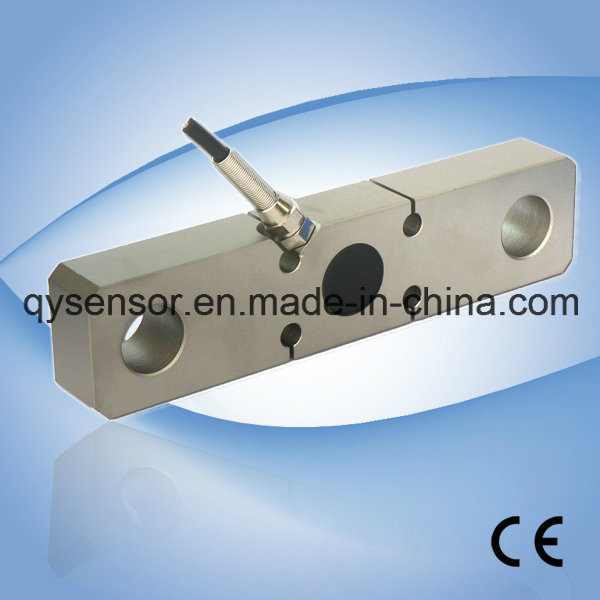

QH-33 Crane Rope Weighing System Weighing Sensor load cells are available in the capacities from 10t to 30t
Alloy steel material with S beam style. Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Plate ring type structure design. Tension and/or compression loading.
Suitable for electronic crane scale and other electronic weighing devices.
Features:
Capacity :10t to 30t
Defend grade: IP67
High accuracy,reliable performance;
Plate ring type structure design,
and easy installation.

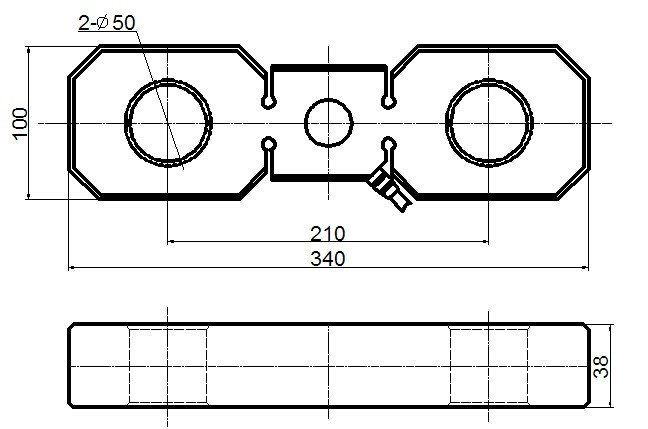

Electrical connection and Dimensions:
Technical Specifications

Specifications:
capacity	t	10 ~30
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.5 ± 0.01
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.03
zero balance	%FS	± 1.0
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	350 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-20 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.03
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter :5 mm
The cable length could be chose by customer's application.
