Pure Flexible Copper Wire 95mm2 Welding Cable
| Price: |
US $ 1-100/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
95mm2 welding cable |
| Product Name: |
Pure Flexible Copper Wire 95mm2 Welding Cable |
| Color: |
Black, Red, Orange/Other |
| Sample: |
Free |
| Insulation: |
Rubber Epr CPE |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
BV, Tis, TUV |
| Application: |
Welding Machine or Other Moveable Equipment |
| Sheath Material: |
Rubber |
| Range Of Application: |
Welding Machine or Other Moveable Equipment |
| Brand: |
Rmjt |
Product Description

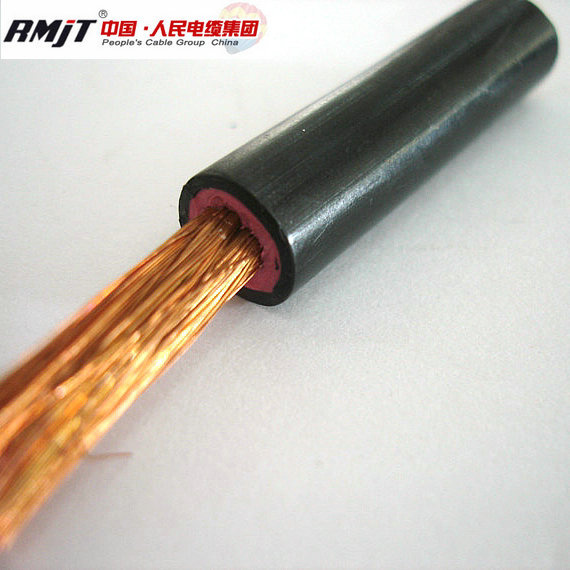

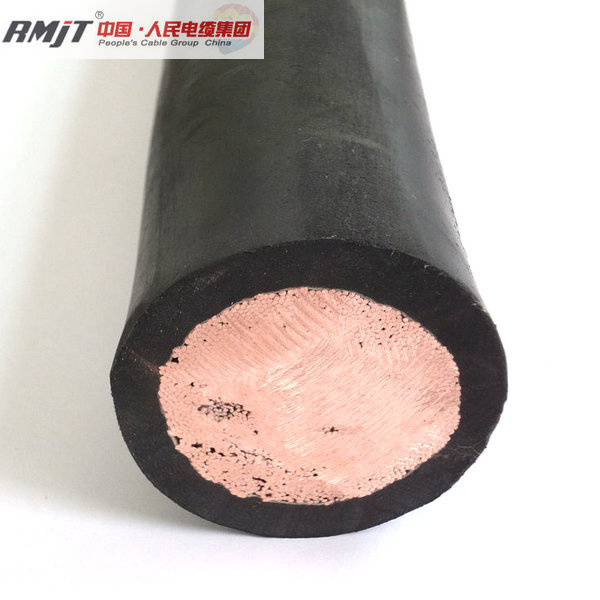

Pure flexible Copper wire 95mm2 Welding Cable
1. Application
Suitable for all kinds of welding Machine Equipments. These cables are used for connecting the electrodes to the welding equipment. These cables are suitable for welding equipment in industry, in automated welding equipment, in tooling constructions, automobile and ship building as well as for hand-held electrodes in workshops and at building sites. These flexible and robust current-carrying cables are suitable for use at high mechanical loads in dry, moist and wet rooms as well for outdoor applications.
2. Standard
The welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
3. Specification| Conductor | Copper Conductor Structure | Thickness of Sheath | Average Outer Diameter (mm) | 20oC Conductor | Reference Weight |
| Nominal Section | Resistance | (kg/km) |
| mm² | No./mm | mm | Min | Max | ≤(Ω/km) | YH | YHF |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 1678.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 1983.8 | 2020.74 |
Main Technical Data
Welding cables to IEC 60245 | Nominal section area(mm2) | No./diameter of stranding(mm) | Nominal sheath thickness (mm) | Overall diameter(mm) | Max. conductor resistance at 20ºC(Ω/km) |
| Min. | Max. | Without tinned | With tinned |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 1.19 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 0.780 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 0.552 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 0.390 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 0.276 |
| 95 | 2297/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 0.204 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 0.164 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 0.132 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 0.108 |
| 240 | 1908/0.40 | 3.8 | 25.0 | 35.0 | 0.0801 | 0.0817 |
Welding cables to ASTM standard | Size (AWG) | Nominal stranding | Nominal overall diameter | Approx. net weight (LBS/1000ft) | Max. conductor resistance at 20ºC(Ω/km) |
| AWG | mm | inch | mm |
| 6 | 259/30 | 259/0.254 | 0.430 | 10.92 | 152 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 215 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.540 | 13.72 | 296 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.580 | 14.73 | 360 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 424 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 513 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.720 | 18.29 | 644 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.780 | 19.81 | 824 | 0.17 |

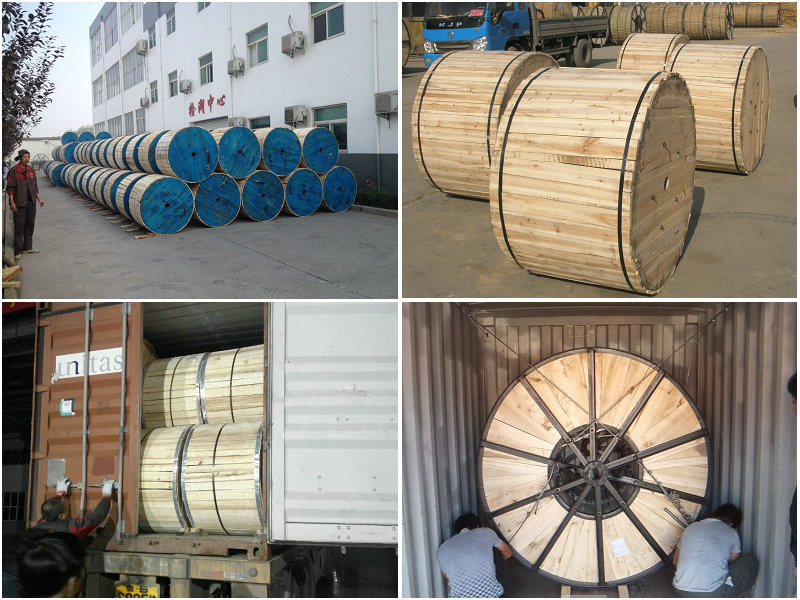

4. Package:
100meters one roll or steel&woode drum or according to your requirements
5. About us

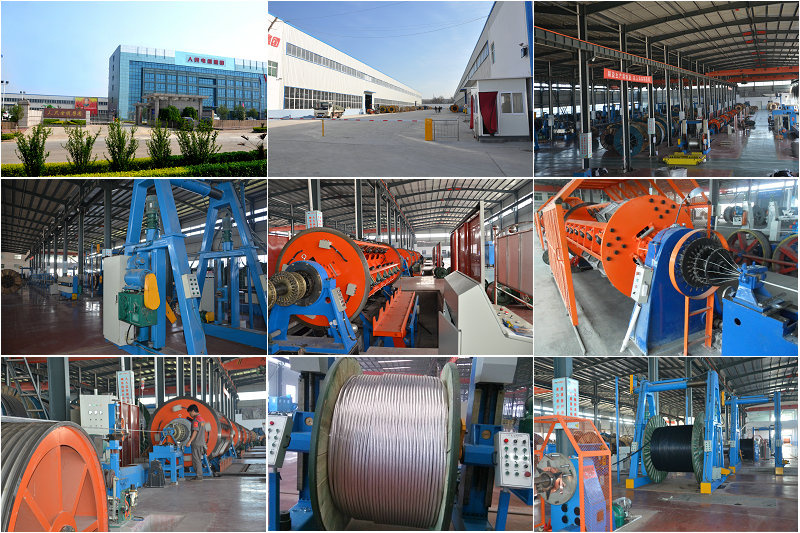

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6. Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
7. Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
8. Contact us
Factory ADD: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan Province, China.
TEL: +86-371-55632896
FAX: +86-371-55632837
Mobile: +86-18336390736
Sky:Tinaleeran
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
