| Prod Model: |
EH5100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waveform: |
Pure Sine Wave |
| Transfer Time: |
0 Transfter Time |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Most Power Problems |
| Classification: |
Uninterrupted Power Supplies |
| Brand: |
Must |
Product Description
Sine wave output, Zero conversion time
Input zero frontline detection function, Bypass output
DC starting, Bypass protection
Automatic startup function, Long-term type power design
Strong ability to recharge long-term acting machine
Shelf-check function, Powerful anti-jamming
Can match generator
Support inductive load too
Winpower2000 monitoring software free downloads
Provide intelligent slot, Provide standard battery pack
Product Series
|

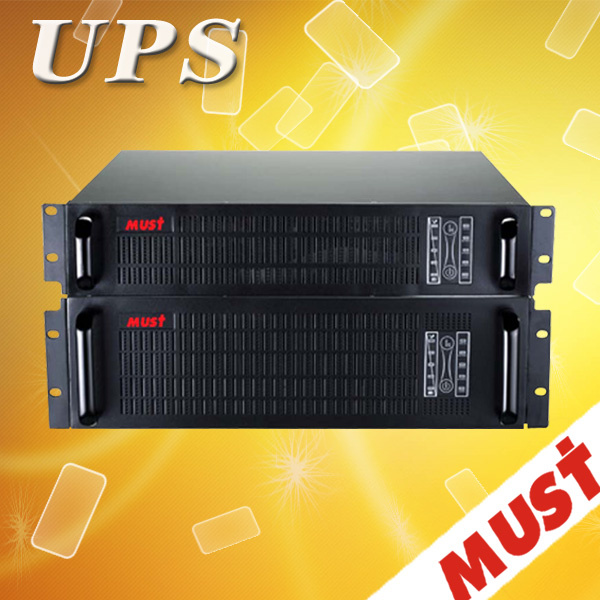

EH5110 Rack mount online ups
|
Model
|
HR1K/HR1KS
|
HR2K/HR2KS
|
HR3K/HR3KS
|
HR6K/HR6KS
|
Rated Power
|
VA/W
|
1KVA / 0.7KW
|
2KVA / 1.4KW
|
3KVA / 2.1KW
|
6KVA/4.2KW
|
Input
|
Nominal Voltage
|
220VAC
|
Voltage Range
|
115 ~ 300VAC
|
176 ~ 276VAC
|
Frequency Range
|
46 ~ 54Hz(default), user adjustable within 40~60Hz
|
46 ~ 54Hz
|
Power Factor
|
0.97
|
0.98
|
Connection
|
IEC320-10A inlet
|
IEC320-16A inlet
|
Terminal Block
|
Output
|
Voltage
|
220VAC ± 2%
|
220VAC ± 1%
|
Frequency
|
46~54Hz or 50Hz ± 0.2Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)
|
46~54Hz (Line mode)
50Hz ± 0.05Hz ( Battery mode)
|
Waveform
|
Sine Wave
|
Overload Capability
|
108%~150% for 30 sec., ³150% for 300 ms
|
105%~130% for 10 min., ³130% for 1 min.
|
Current Crest Ratio
|
3:1
|
Bypass
|
Automatic Transfer
|
on overload and UPS failure
|
Before UPS Power-on
|
Default "NO", user adjustable to "YES"
|
Yes
|
Voltage Range
|
80~264VAC (Default), user adjustable within 80~286VAC
|
176 ~ 261VAC
|
Output Connections
|
IEC320 -10A * 4
|
IEC320-10A * 4
|
IEC320-10A and
Terminal Block
|
IEC320-10A * 4 and Terminal Block
|
Transfer Time
|
0 ms; less than 4 ms from inverter to bypass and vice versa
|
Zero
|
LED indicators
|
Status
|
Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
|
Audible Alarm
|
Bypass, On battery mode, Battery low, Overload, Fault
|
Communications
|
RS-232 Serial Interface
|
Intelligent Slot;
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
|
Network Surge Protection
|
RJ45 I/O port available for network or Fax/Modem
|
Environmental
|
Operating Temperature
|
0 ~ 40°C
|
Operating Humidity
|
20 ~ 90% non-condensing
|
Main Unit
|
Net Weight (Kg)
|
15.3
|
10.3
|
11.2
|
18.3
|
Dimensions (W x D x H) mm
|
482.6 x 450 x 88 (2U)
|
482.6 x 600 x 130 (3U)
|
Battery Pack
|
Type
|
Internal Batteries
|
External Battery Pack
|
Nominal DC Voltage
|
36VDC
|
96VDC
|
240VDC
|
Backup Time (Full load)
|
5 min
|
9 min
(with 1 BP)
|
5 min
(with 1 BP)
|
7 min
(with 1 BP)
|
Net Weight (Kg)
|
--
|
25.3
|
58.2
|
Dimensions (W x D x H) mm
|
--
|
482.6 x 450 x 88 (2U)
|
482.6 x 600 x 130 (3U)
|
